Front Wheelhouse Liner Replacement - Left Side
Front Wheelhouse Liner Replacement - Left Side

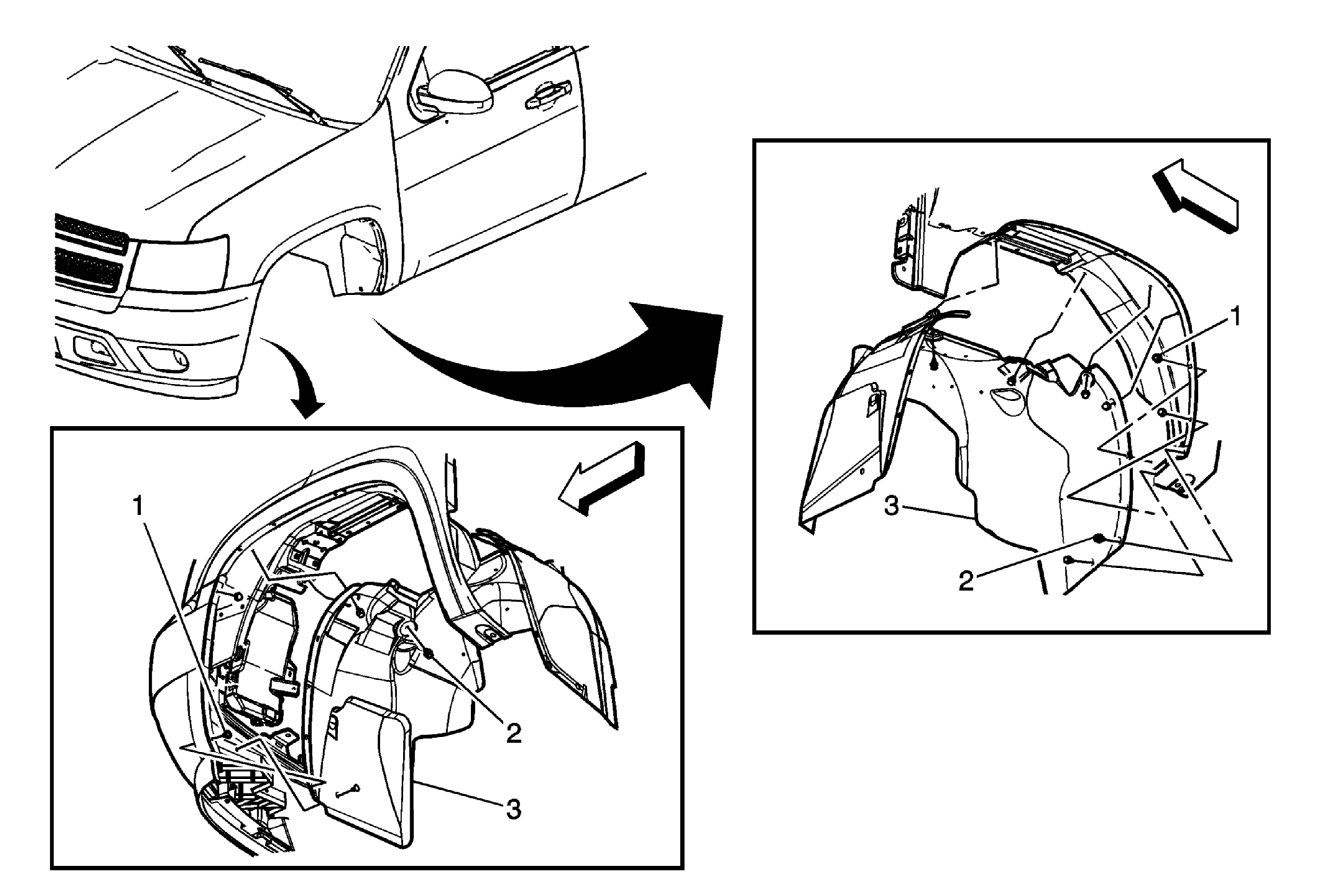

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the appropriate tire and wheel assembly. Refer to Tire and Wheel Removal and Installation . |
|
| 1 | Left Side Front Wheelhouse Liner Screws (Qty: 4)
CAUTION:
Refer to Fastener Caution . Tighten 2 N.m (18 lb in) |
| 2 | Left Side Front Wheelhouse Liner Plastic Retainers (Qty: 11) |
| 3 | Left Side Front Wheelhouse Liner TIP: Before attempting to remove the wheelhouse liner remove any plastic retainers and/or bolts passing through or attached to the left side front wheelhouse liner. |
