Headlamp Switch Replacement (Except Cadillac)

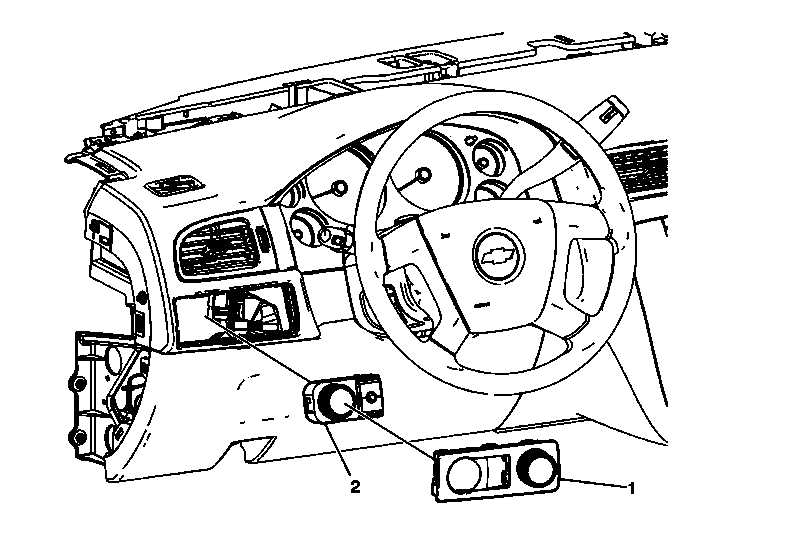

Fig 1: View Of Headlamp Switch Assembly & Bezel
GM1980048Courtesy of GENERAL MOTORS COMPANY
Headlamp Switch Replacement (Except Cadillac)

Callout Component Name
1 Headlamp Switch Bezel Assembly

Procedure

  1. Use the trim tool to unsnap the switch from the bezel.
  2. Disconnect the electrical connector.
2 Headlamp Switch Assembly
Procedure
Unsnap the switch from the bezel.
