EAP and MBEC 1 Fuses; AUX WDO, DRIVER SEAT 2, PASS SEAT 1 and RT DOORS Circuit Breakers Wiring Schematics

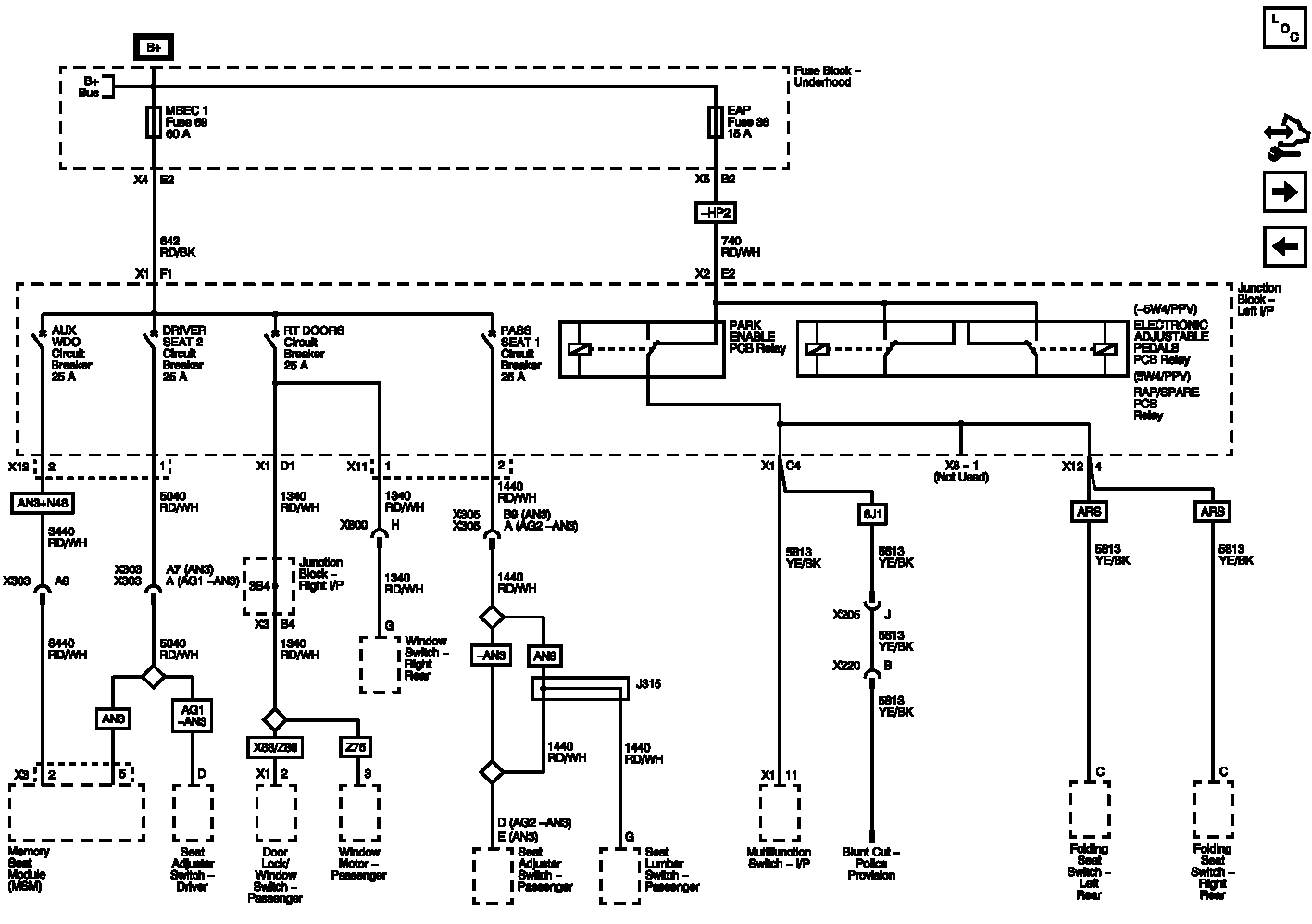

Fig 1: EAP and MBEC 1 Fuses; AUX WDO, DRIVER SEAT 2, PASS SEAT 1 and RT DOORS Circuit Breakers Wiring Schematics
GM2634867Courtesy of GENERAL MOTORS COMPANY
