ALC/COMP, BCM, COOLED SEATS, CTSY, DDM, DIM, DSM, LBEC 1, LGM, REAR HVAC and RT STOP TRN Fuses Wiring Schematics

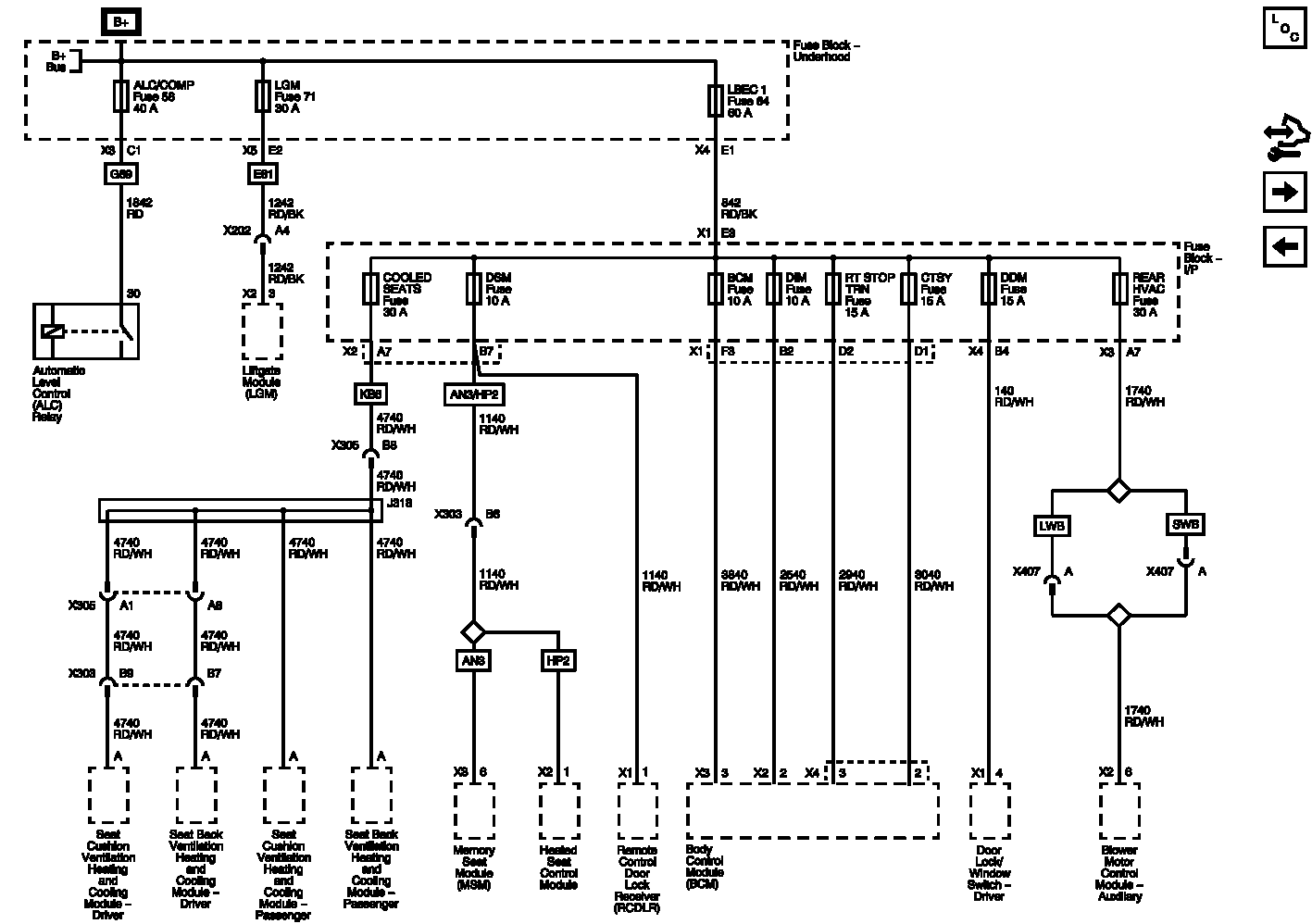

Fig 1: ALC/COMP, BCM, COOLED SEATS, CTSY, DDM, DIM, DSM, LBEC 1, LGM, REAR HVAC and RT STOP TRN Fuses Wiring Schematics
GM2634779Courtesy of GENERAL MOTORS COMPANY
