ACCM, ACPO, BECM, BECM FAN, CAB HTR PUMP, COOL PUMP, EPS, PIM 1 and PIM 2 Fuses (HP2) Wiring Schematics

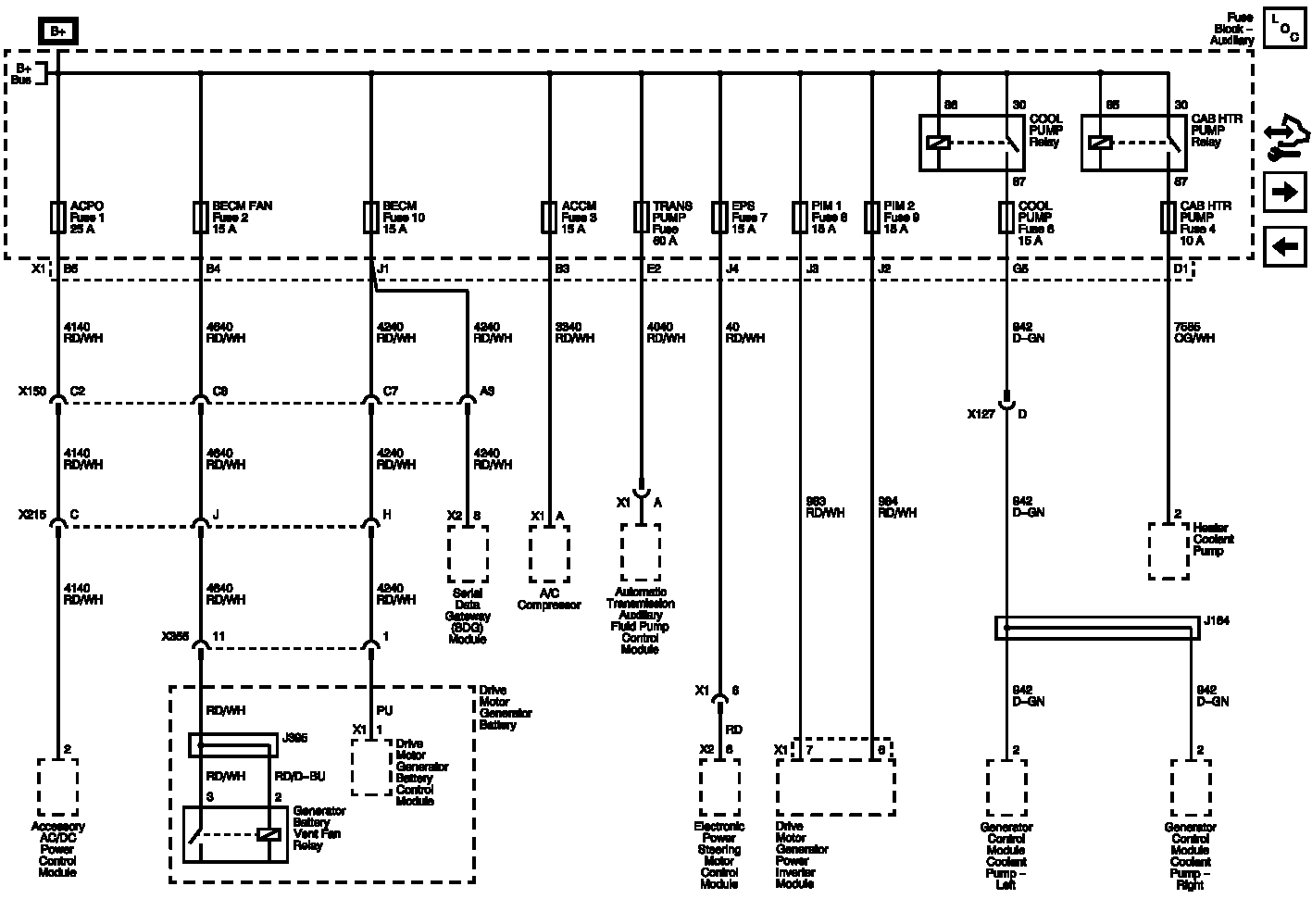

Fig 1: ACCM, ACPO, BECM, BECM FAN, CAB HTR PUMP, COOL PUMP, EPS, PIM 1 and PIM 2 Fuses (HP2) Wiring Schematics
GM2635061Courtesy of GENERAL MOTORS COMPANY
