Headliner Harness Routing (LWB without E52 or TB7)

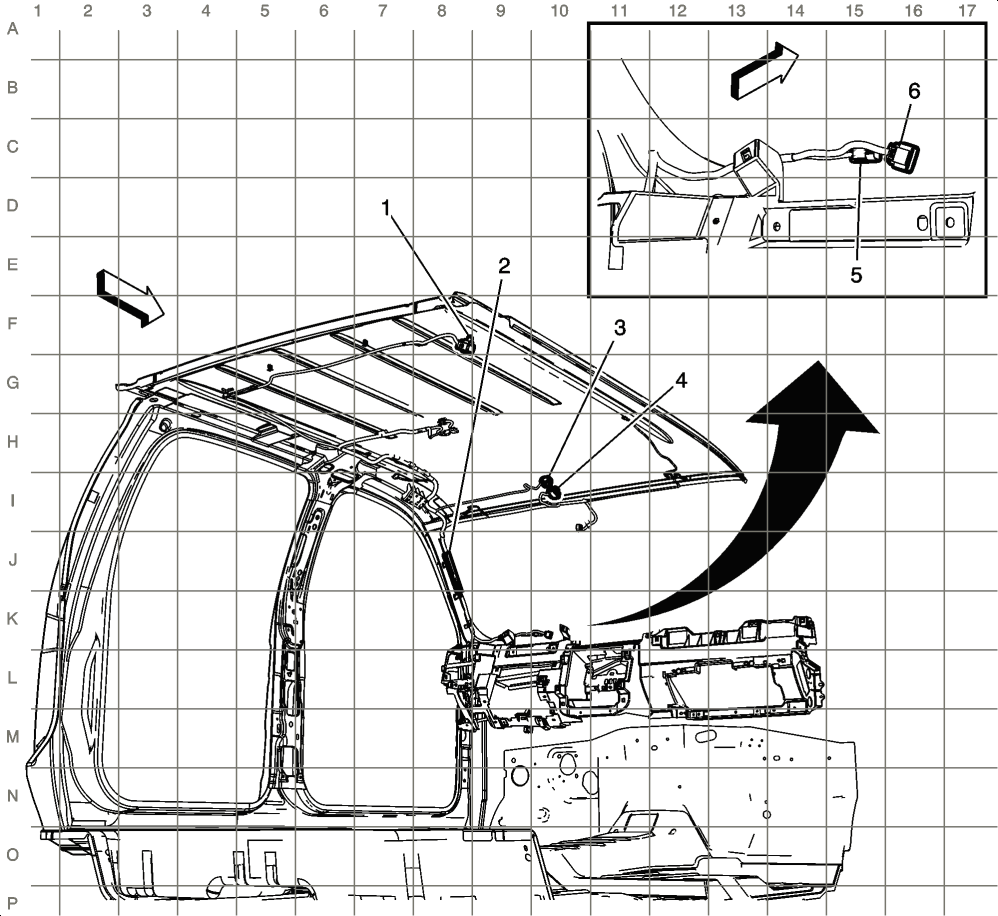

Fig 1: Headliner Harness Routing (LWB without E52 or TB7)
GM2832413Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 X321
2 Backup Lamp Signal Resistor
3 X306 (DNU)
4 X304
5 X203 (UE1)
6 X204 (U42)
