Headliner Harness Routing (LWB with E52)

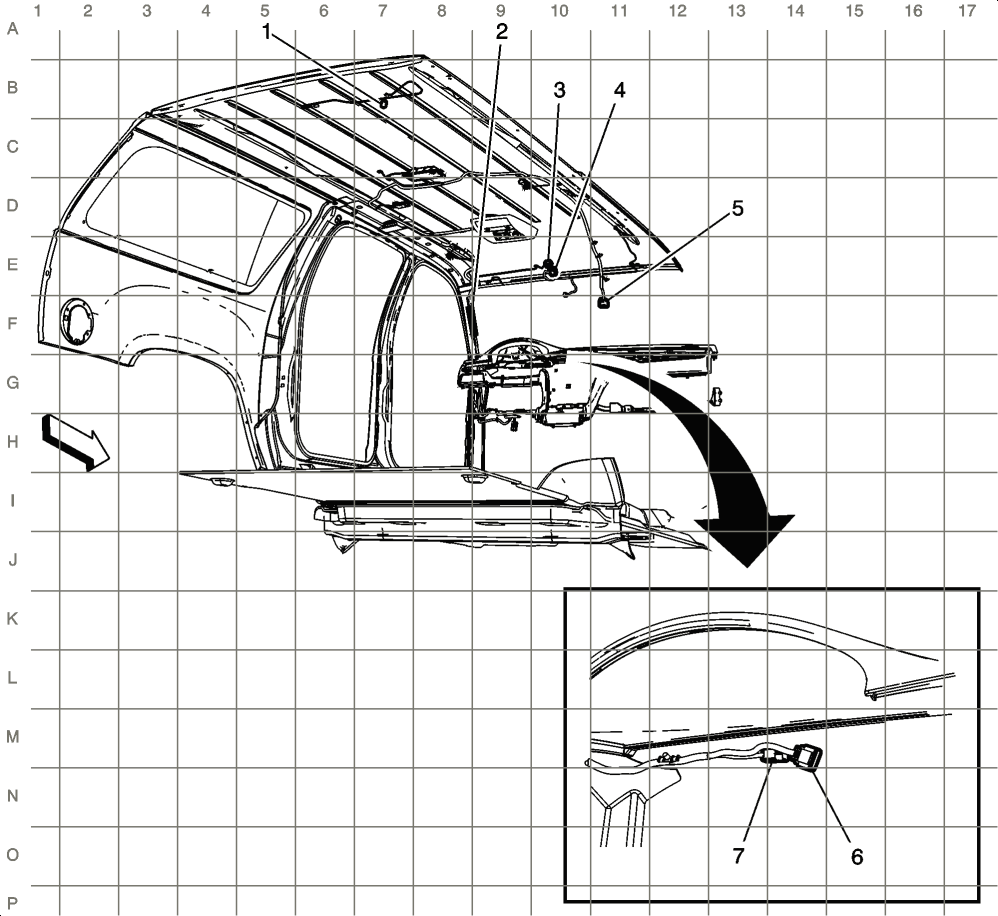

Fig 1: Headliner Harness Routing (LWB with E52)
GM2832427Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 X406
2 Backup Lamp Signal Resistor
3 X306
4 X304
5 X403
6 X204 (U42)
7 X203 (UE1)
