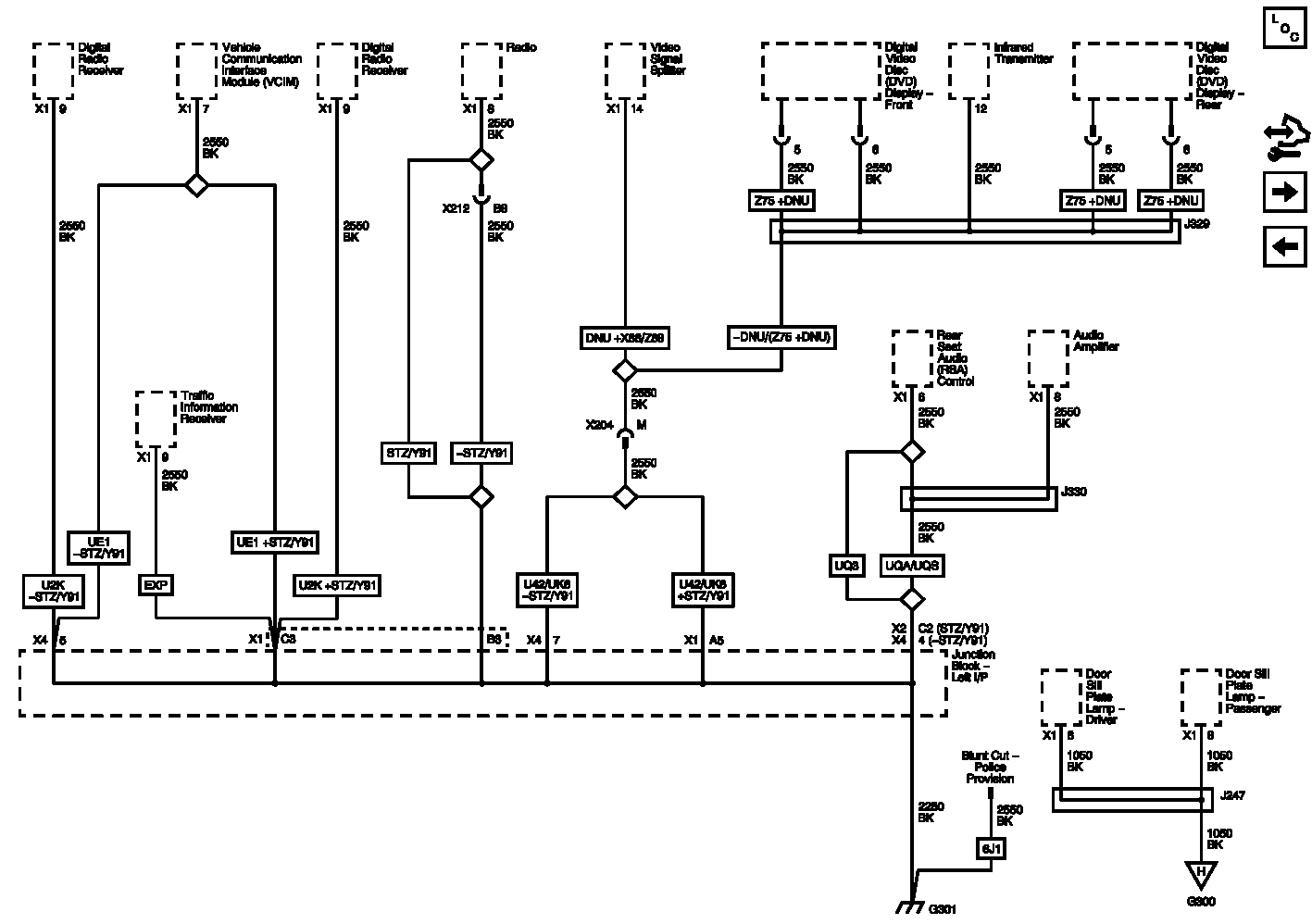

Home >> Cadillac >> 2012 >> Escalade EXT >> Repair and Diagnosis (Single Page) >> Quick Lookups >> Wiring Diagrams >> Wiring Systems And Power Management - Wiring Schematics And Wiring Harness Routing Diagrams >> Routing Diagrams >> Ground Distribution Wiring Schematics >> G300 (2 of 2), G301 Wiring Schematics
