G102, G104, G105, G108, G110 and G111 Wiring Schematics

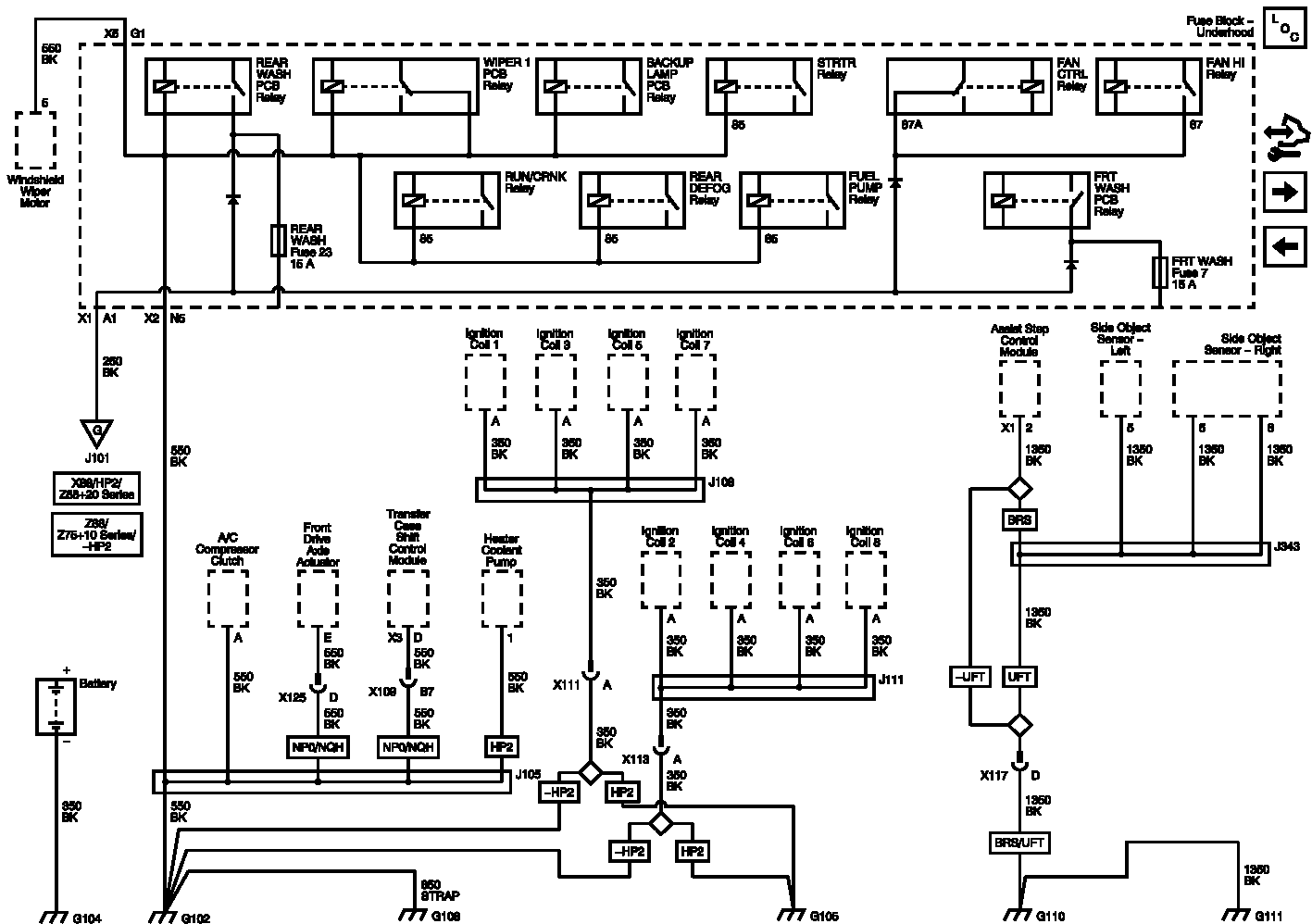

Fig 1: G102, G104, G105, G108, G110 and G111 Wiring Schematics

GM2635177

Courtesy of GENERAL MOTORS COMPANY
