G101 (Z88 or Z75 with 10 Series and without HP2) Wiring Schematics

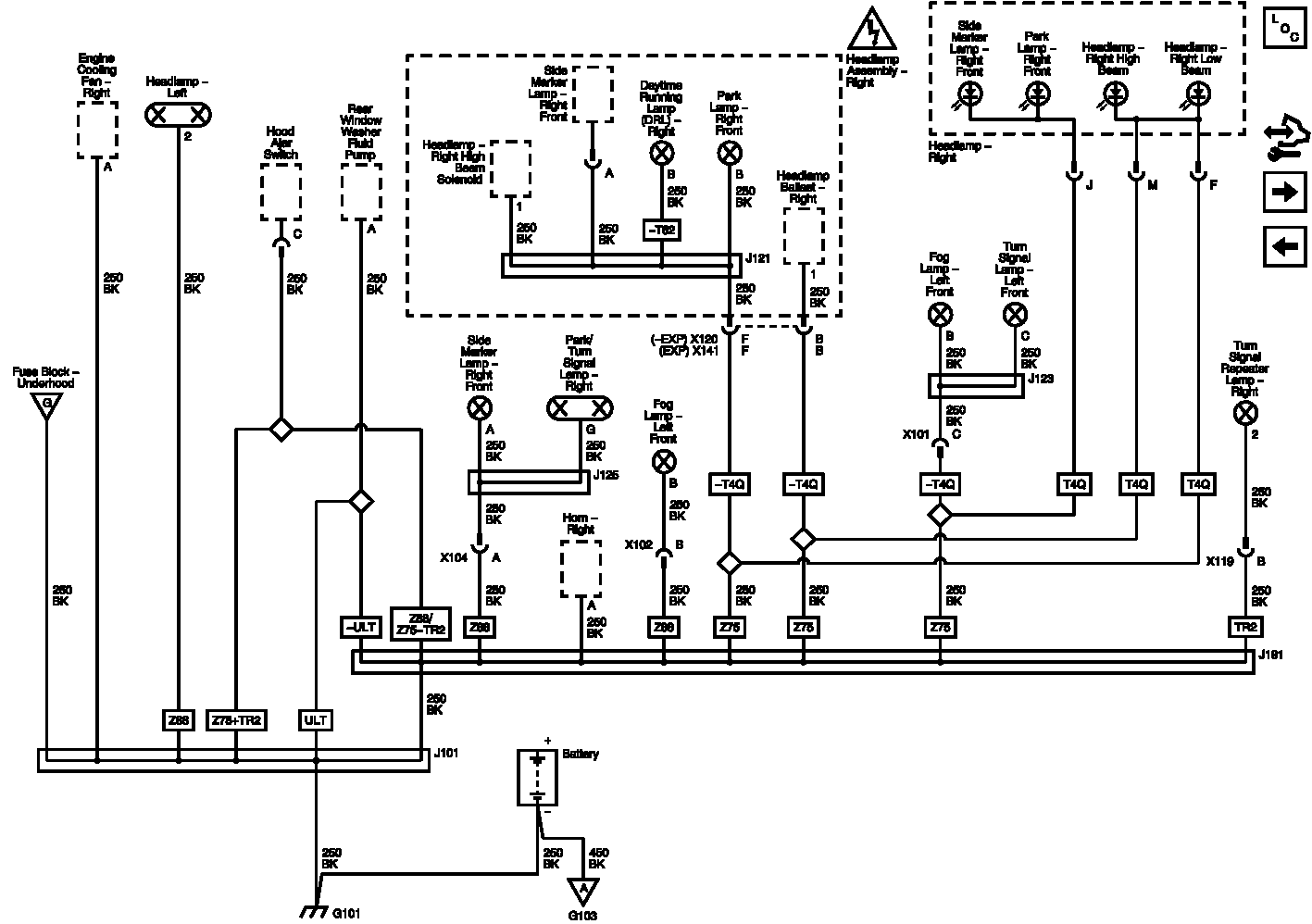

Fig 1: G101 (Z88 or Z75 with 10 Series and without HP2) Wiring Schematics

GM2635099

Courtesy of GENERAL MOTORS COMPANY
