G101 (X88, HP2 or 20 Series Z88) Wiring Schematics

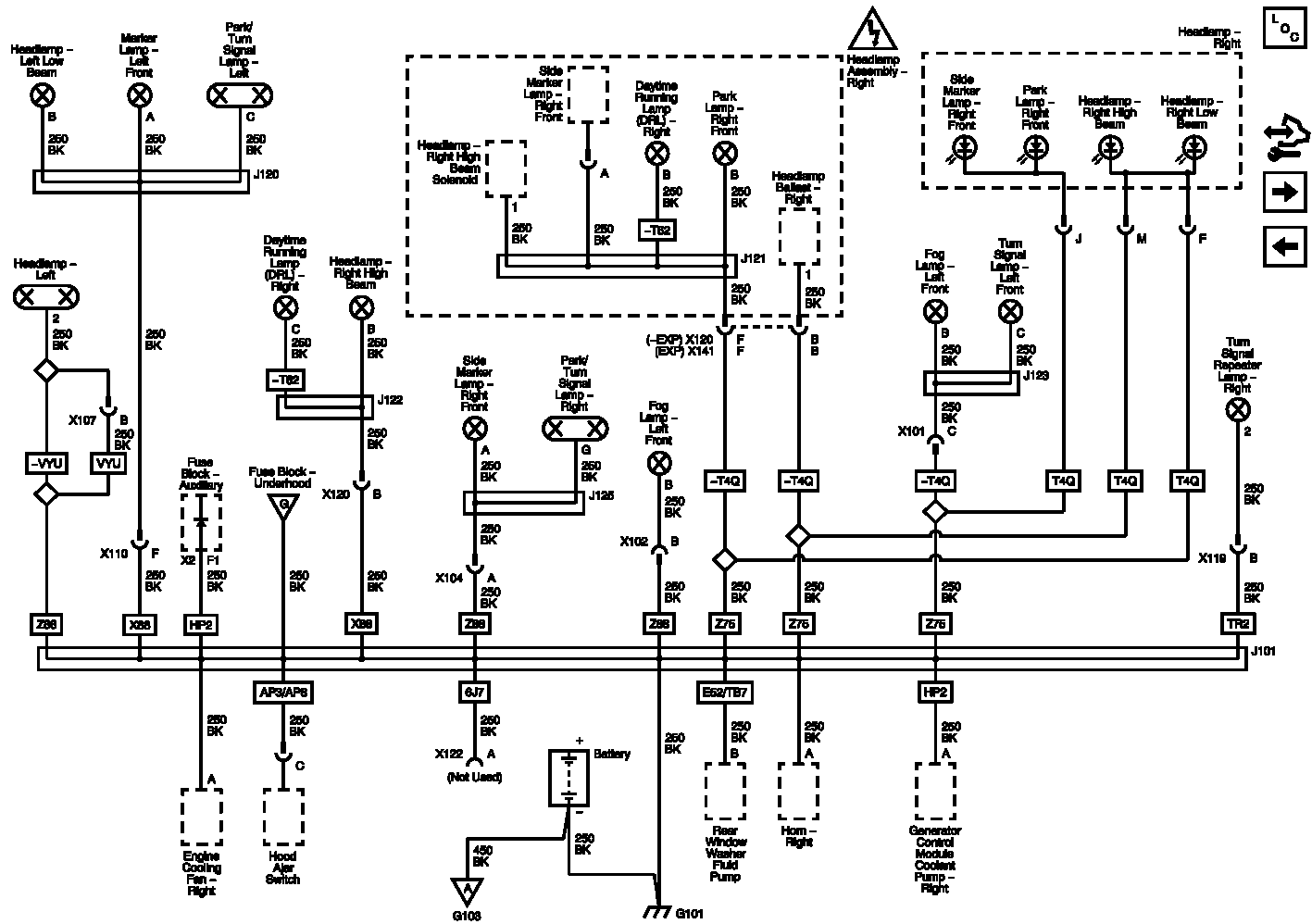

Fig 1: G101 (X88, HP2 or 20 Series Z88) Wiring Schematics

GM2635084

Courtesy of GENERAL MOTORS COMPANY
