X355 Body Harness to Drive Motor Generator Battery Control Harness (HP2)

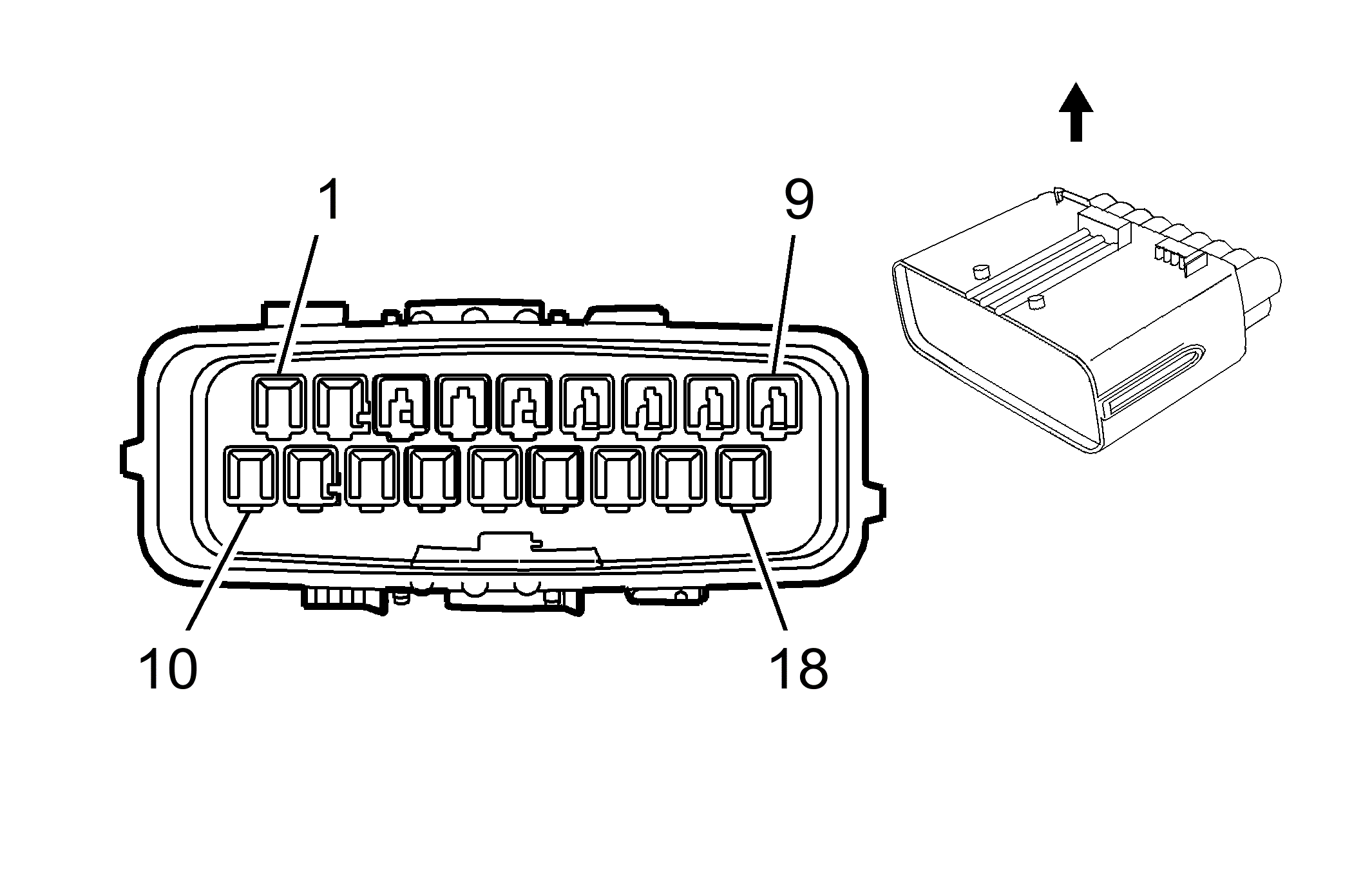

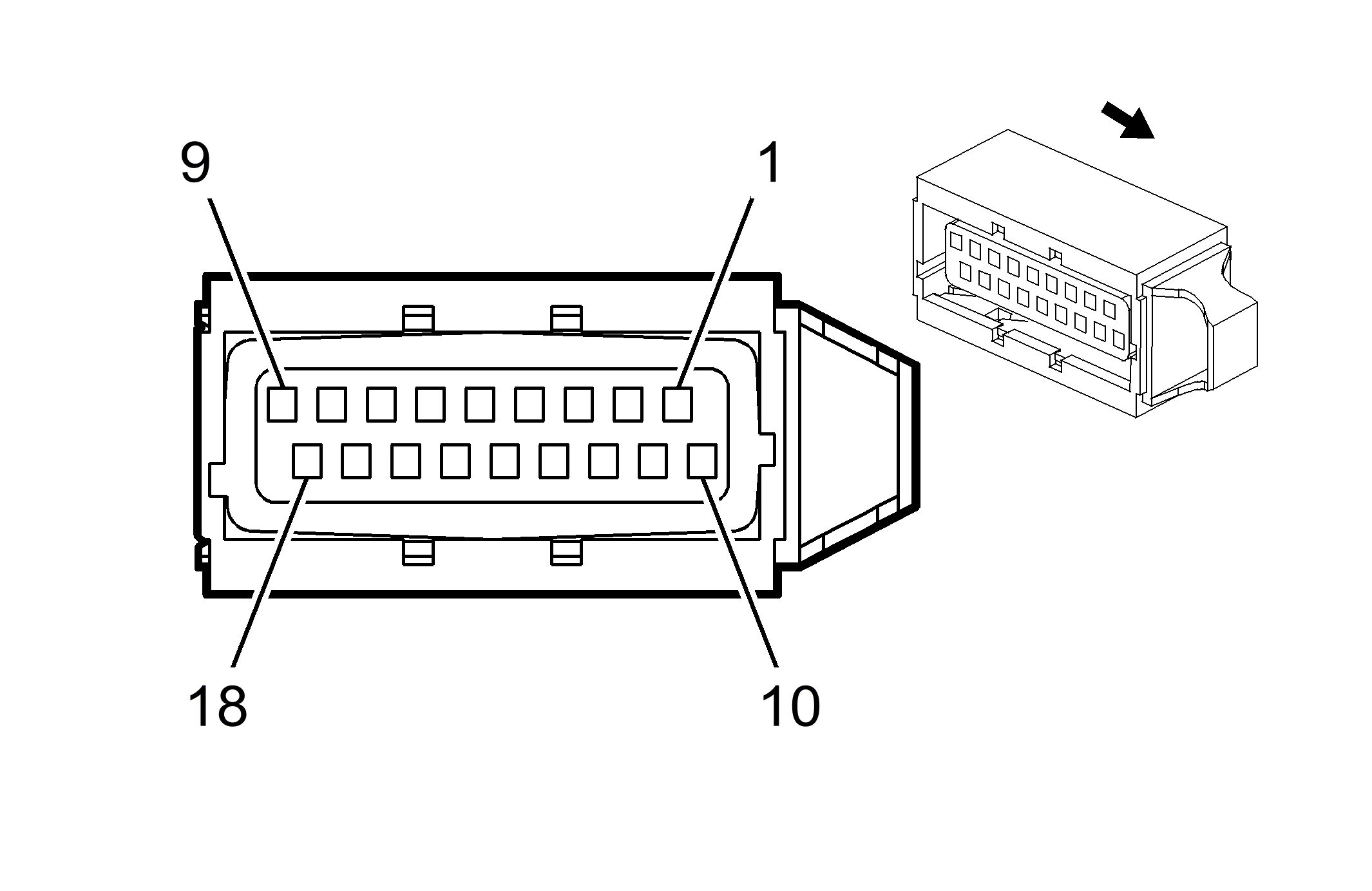

Connector Part Information Harness Type: Body OEM Connector: 13609515 Service Connector: 13504591 Description: 18-Way F 1.5 Series Sealed (BK)	Connector Part Information Harness Type: Drive Motor Generator Battery Control OEM Connector: 7282-6493-30 Service Connector: Service by Harness - See Part Catalog Description: 18-Way M (BK), Sealed
Terminal Part Information Terminated Lead: Pins 1, 2, 9, 11, 13, 18 - 13575424 Terminated Lead: Pins 4, 6, 7, 10, 12, 15, 16 - Service by Harness - See Part Catalog Release Tool: J-38125-11A Diagnostic Test Probe: J-35616-2A (GY) Terminal/Tray: 7116-4103-08/9 Core/Insulation Crimp: E/1	Terminal Part Information Terminal/Tray: Service by Harness - See Part Catalog Core/Insulation Crimp: Not Available Release Tool/Test Probe: Not Available

Pin	Wire	Circuit	Function	Pin	Wire	Circuit	Function
1	1 RD/WH	4240	Battery Positive Voltage	1	PU	-	Battery Positive Voltage
2	0.8 L-BU	5986	Serial Data Communication Enable	2	GY	-	Serial Data Communication Enable
3	-	-	Not Used	3	-	-	Not Used
4	0.35 PU	5087	High Voltage Interlock Circuit Source	4	L-GN	-	High Voltage Interlock Circuit Source
5	-	-	Not Used	5	-	-	Not Used
6	0.5 TN	2501	High Speed GMLAN Serial Data Bus +	6	RD	-	High Speed GMLAN Serial Data Bus +
7	0.5 TN	2501	High Speed GMLAN Serial Data Bus +	7	BK	-	High Speed GMLAN Serial Data Bus +
8	-	-	Not Used	8	D-GN/WH	-	Not Used
9	0.8 BK/WH	2751	Ground	9	BK/WH	-	Ground
10	0.5 PK	968	Wake Up Signal	10	D-GN/BN	-	Wake Up Signal
11	0.8 RD/WH	4640	Battery Positive Voltage	11	RD/WH	-	Battery Positive Voltage
12	0.35 YE	5690	High Voltage Interlock Circuit Return	12	PK	-	High Voltage Interlock Circuit Return
13	0.8 PK	988	Contactor Control Signal	13	BN	-	Contactor Control Signal
14	-	-	Not Used	14	-	-	Not Used
15	0.5 TN/BK	2500	High Speed GMLAN Serial Data Bus -	15	D-GN	-	High Speed GMLAN Serial Data Bus -
16	0.5 TN/BK	2500	High Speed GMLAN Serial Data Bus -	16	WH	-	High Speed GMLAN Serial Data Bus -
17	-	-	Not Used	17	D-GN/YE	-	Not Used
18	0.8 BK/WH	2751	Ground	18	BK	-	Ground
