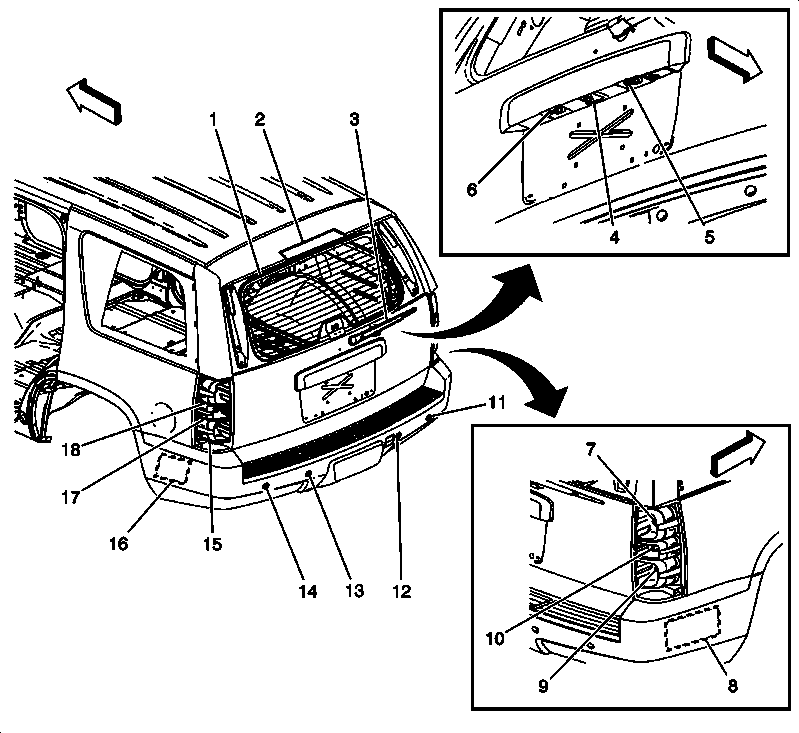

Rear of Vehicle Components (X88 or Z88 with E52 or TB7)
Rear of Vehicle Components (X88 or Z88 with E52 or TB7)
| Component Name | Callout |
|---|---|
| Rear Window Defogger Grid | 1 |
| Center High Mounted Stop Lamp (CHMSL) | 2 |
| Rear Window Wiper | 3 |
| Rearview Camera (UVC) | 4 |
| License Lamp- Left | 5 |
| License Lamp- Right | 6 |
| Tail/Stop Lamp- Right | 7 |
| Side Object Sensor- Right (UFT) | 8 |
| Backup Lamp- Right | 9 |
| Tail/Turn Signal Lamp- Right (E52)/Turn Signal Lamp- Right Rear (TB7) | 10 |
| Object Alarm Sensor- Right Rear Corner (UD7) | 11 |
| Object Alarm Sensor- Right Rear Middle (UD7) | 12 |
| Object Alarm Sensor- Left Rear Middle (UD7) | 13 |
| Object Alarm Sensor- Left Rear Corner (UD7) | 14 |
| Tail/Turn Signal Lamp- Left (E52)/Turn Signal Lamp- Left Rear (TB7) | 15 |
| Side Object Sensor- Left (UFT) | 16 |
| Backup Lamp- Left | 17 |
| Tail/Stop Lamp- Left | 18 |
