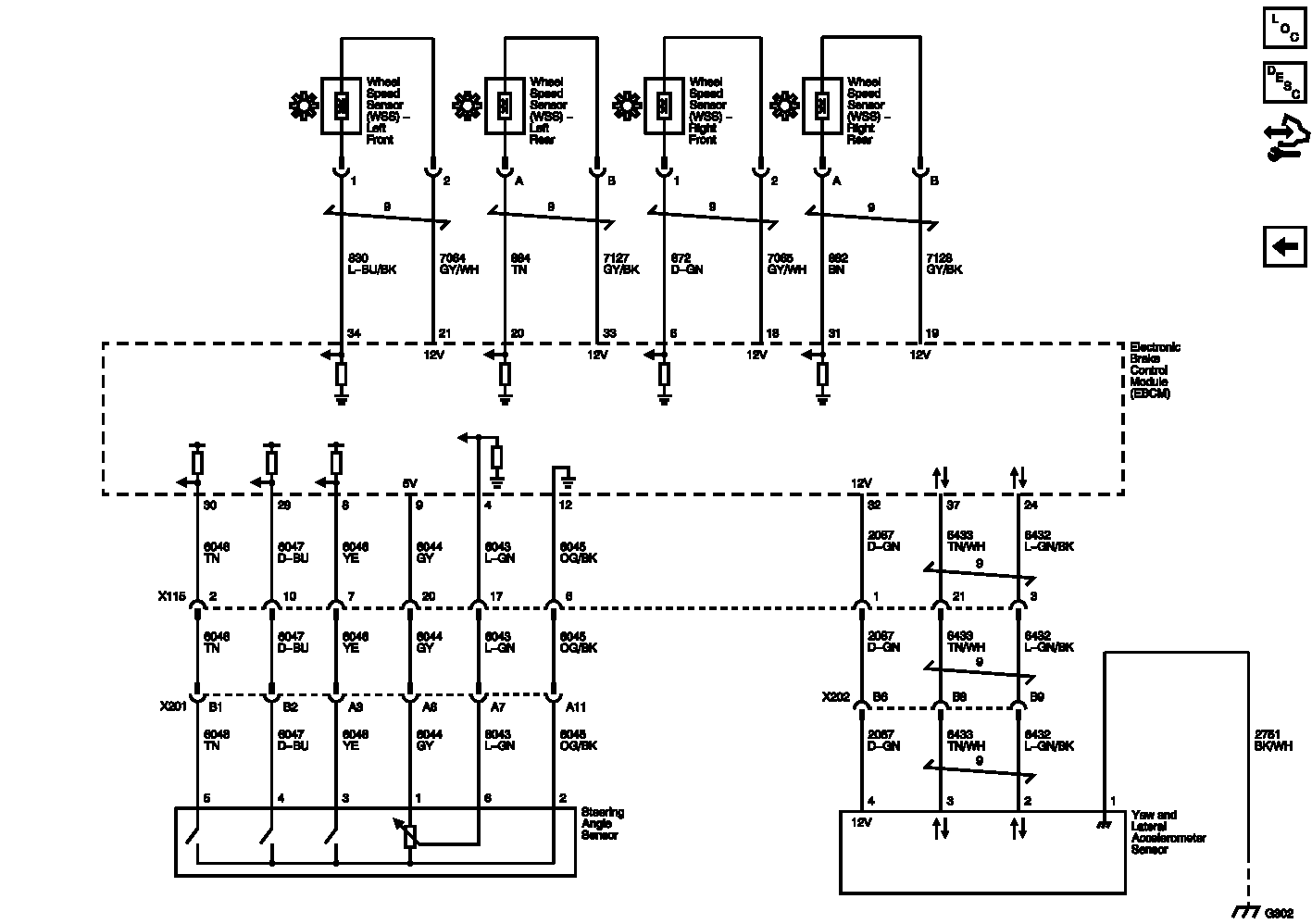

Home >> Cadillac >> 2012 >> Escalade Base, AWD >> Repair and Diagnosis >> Brakes >> Anti-Lock Brakes >> Antilock Brake System - Non-Hybrid Less Than 3900 Kg (8600 Lb) GVW >> Schematic Wiring Diagrams >> Antilock Brake System Wiring Schematics >> Sensors Wiring Schematics
