Installation Procedure

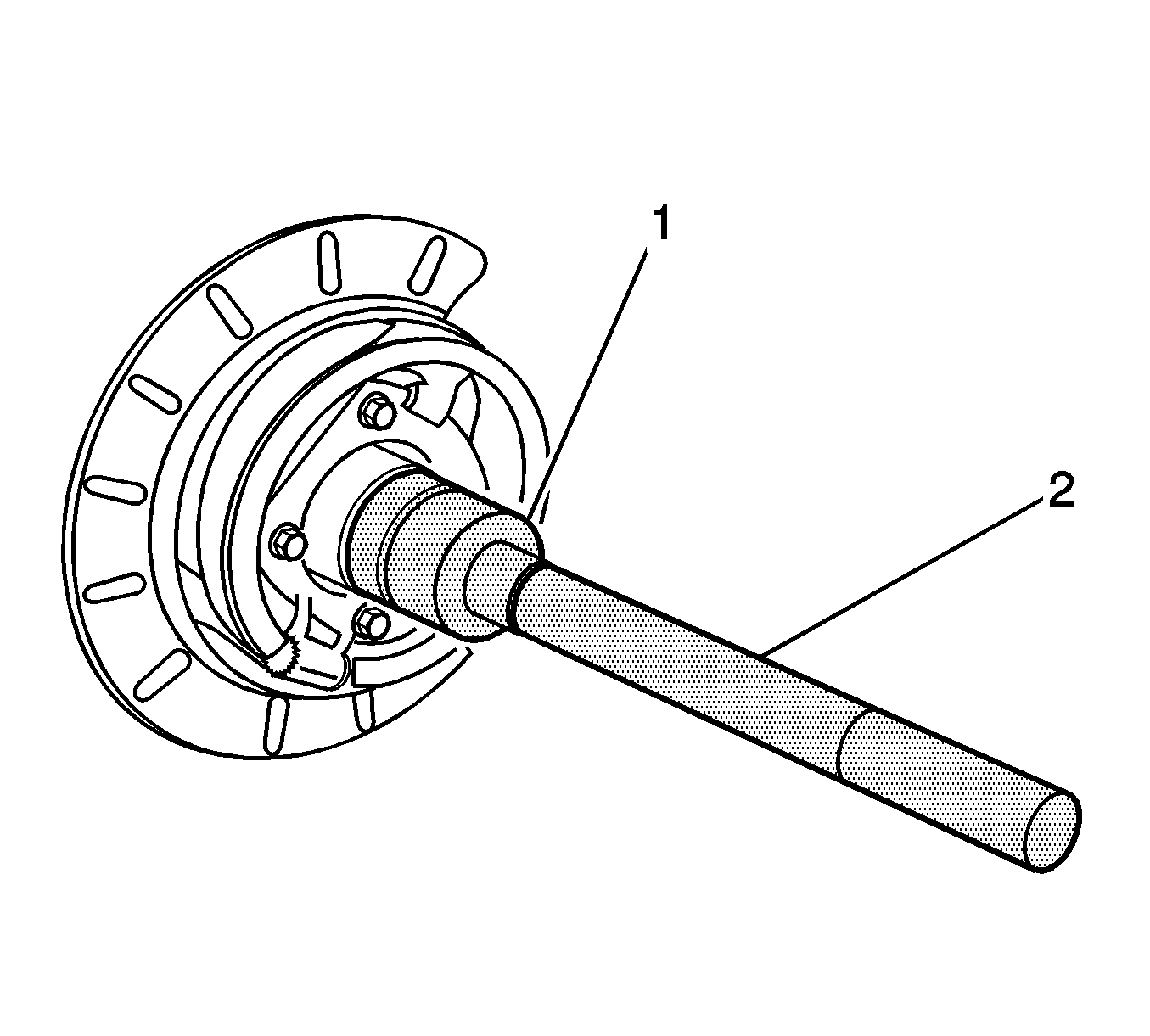

    Fig 1: View Of J 45860 & J 8092 Wheel Speed Sensor Ring Installation Tools
    GM885621Courtesy of GENERAL MOTORS COMPANY
  1. Install the wheel speed sensor ring using the J-45860  tone ring installer (1) and the GE-8092  driver handle (2).
  2. Drive the wheel speed sensor ring into the axle housing until the tool bottoms against the tube.

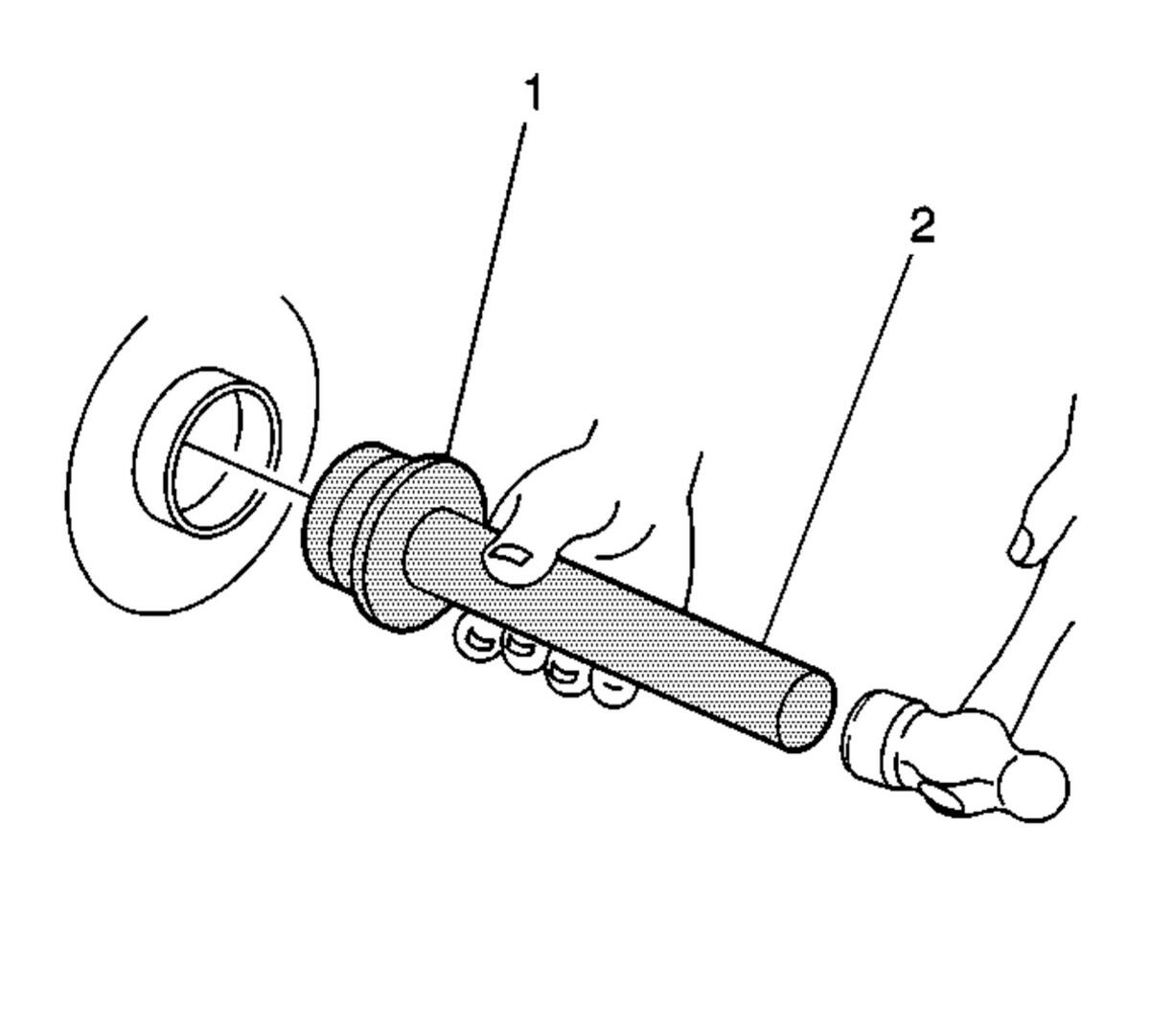

    3. Fig 2: Installing Axle Shaft Bearing Using J 23690 Or J 29709 & J 8092
    GM695758Courtesy of GENERAL MOTORS COMPANY
  3. Install the axle shaft bearing using the J-23690  bearing installer (1) and the GE-8092  driver handle (2).
  4. Drive the axle shaft bearing into the axle housing until the tool bottoms against the tube.

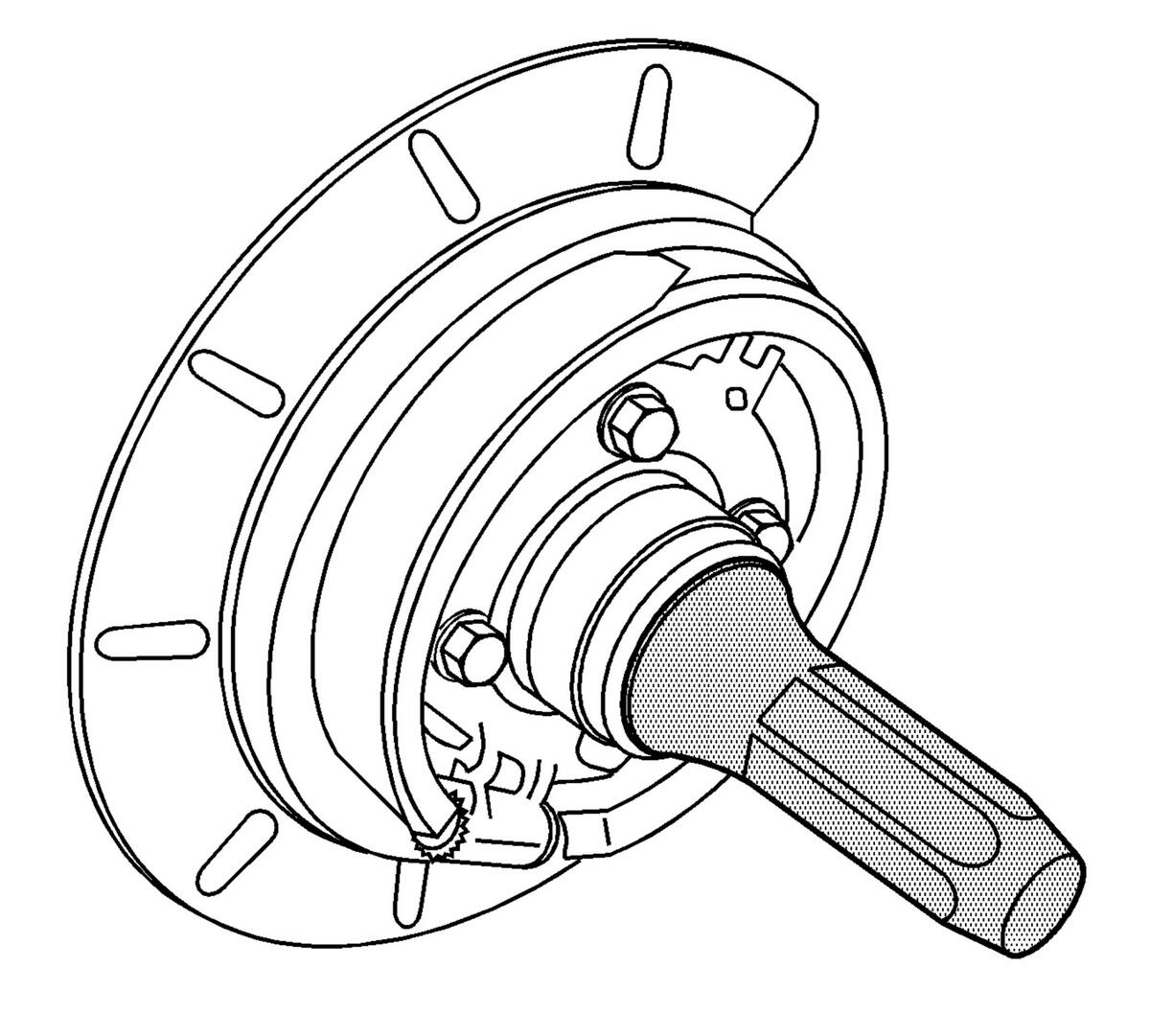

    5. Fig 3: Installing Axle Shaft Seal Using J 21128
    GM885624Courtesy of GENERAL MOTORS COMPANY
  5. Install the axle shaft seal using the J-21128  axle pinion oil seal installer.
  6. Drive the tool into the bore until the axle shaft seal bottoms flush with the tube.
  7. Install the axle shaft. Refer to Rear Axle Shaft Replacement .
  8. Install the rear axle housing cover. Refer to Rear Axle Housing Cover and Gasket Replacement (8.6, 9.5 Inch Axles) , Rear Axle Housing Cover and Gasket Replacement (10.5 Inch Axle) .
  9. Install the rear wheel speed sensor. Refer to Rear Wheel Speed Sensor Ring Replacement .
  10. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
  11. Fill the rear axle. Refer to Differential Oil Replacement (8.6 Inch Axle) , Differential Oil Replacement (10.5 Inch Axle) , Differential Oil Replacement (9.5LD Inch Axle) .
  12. Lower the vehicle.
