Floor Console Bezel Replacement (Cadillac)

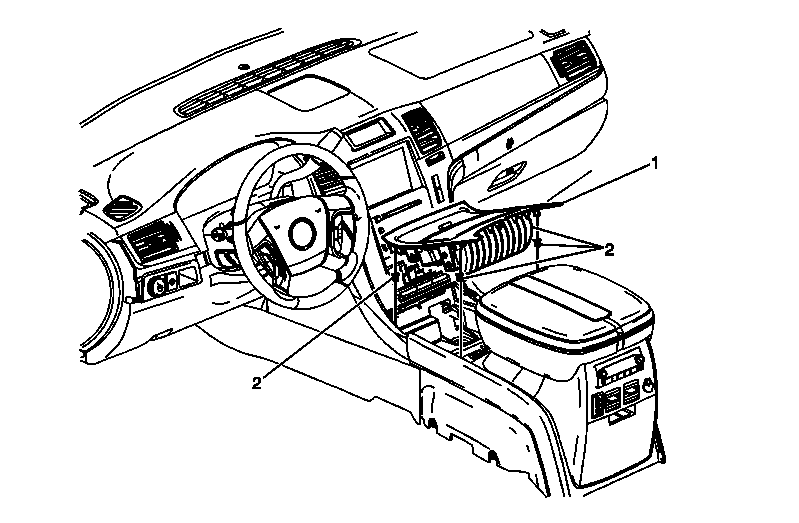

Fig 1: View Of Front Floor Console Bezel Assembly & Clips
GM1705094Courtesy of GENERAL MOTORS COMPANY
Floor Console Bezel Replacement (Cadillac)

Callout Component Name
CAUTION:

To prevent component damage, DO NOT use metal tools to remove the trim.
1 Front Floor Console Bezel Assembly
  1. Use a flat-bladed plastic trim tool to carefully release the retainer clips along the rear edge of the bezel.
  2. Disconnect the electrical connections.
  3. Lift the bezel out of the console assembly.
2 Retainer Clip (Qty: 4)
