Yaw and Lateral Accelerometer Sensor (JL7)
Courtesy of GENERAL MOTORS COMPANY Yaw and Lateral Accelerometer Sensor (JL7)
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.35 BK/WH |
551 |
Ground |
| 2 |
0.35 L-GN/BK |
6432 |
CAN Bus Low Serial Data |
| 3 |
0.35 TN/WH |
6433 |
CAN Bus High Serial Data |
| 4 |
0.35 PK |
1339 |
IGN 1 Voltage |

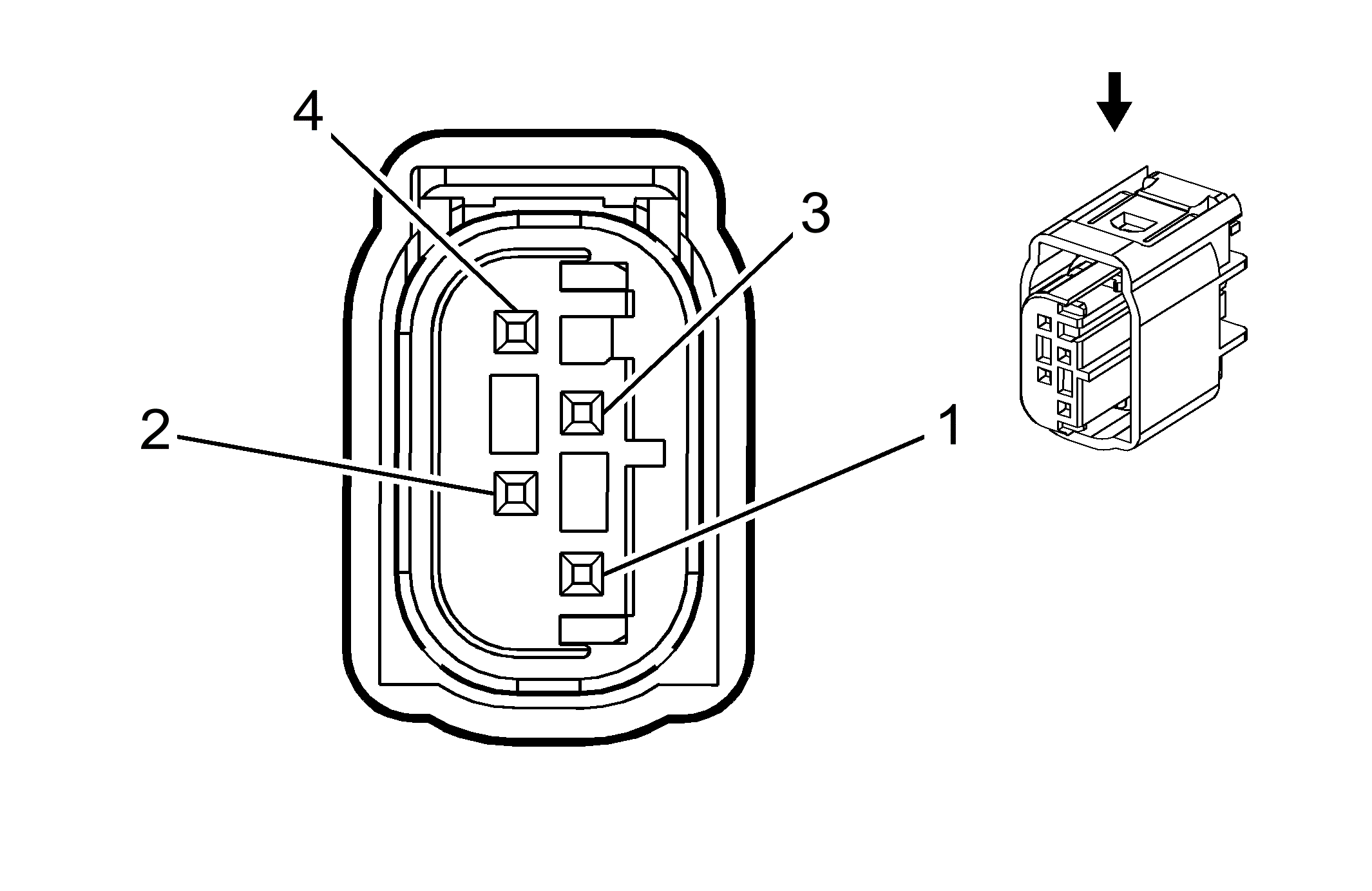

Connector Part Information
- Harness Type: Body
- OEM Connector: 2-967640-1
- Service Connector: 19178091
- Description: 4-Way F 0.64 MQS Series, Sealed (BK)
|
Terminal Part Information
- Terminated Lead: Pending
- Release Tool: J-38125-12A
- Diagnostic Test Probe: J-35616-64B (L-BU)
- Terminal/Tray: 962885-5/15
- Core/Insulation Crimp: 6/6
|
