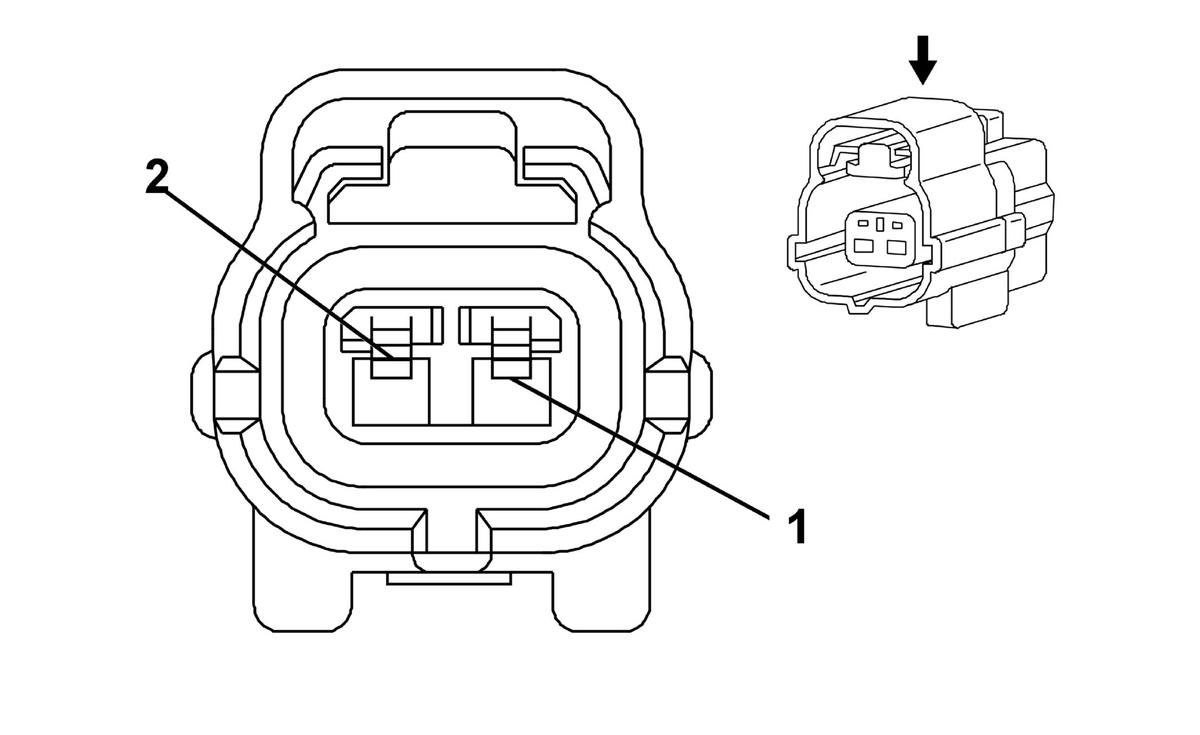

Keyless Entry Antenna - Left Front Door Handle
Courtesy of GENERAL MOTORS COMPANY Keyless Entry Antenna - Left Front Door Handle
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.35 YE |
- |
Keyless Entry Antenna Signal (4) |
| 2 |
0.35 WH |
- |
Low Reference |
Connector Part Information
- Harness Type: Left Front Door Handle
- OEM Connector: 174352-2
- Service Connector: Service by Harness - See Part Catalog
- Description: 2-Way F Econoseal J-Mark II Series, Sealed (BK)
|
Terminal Part Information
- Terminated Lead: Pending
- Release Tool: J-38125-12A
- Diagnostic Test Probe: J-35616-33 (YE)
- Terminal/Tray: 184095-1/7
- Core/Insulation Crimp: E/D
|
