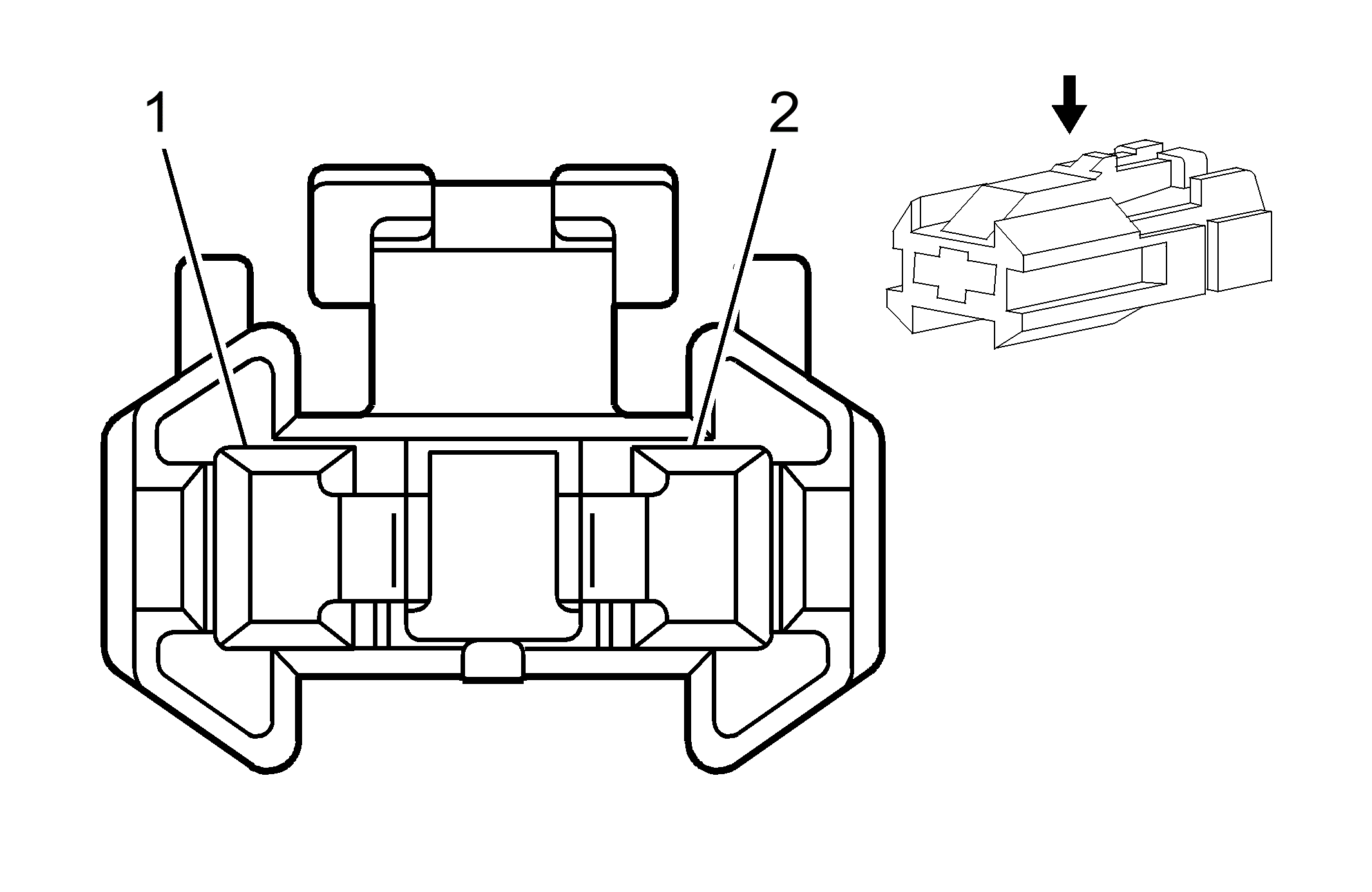

Headlamp Ballast- Left (T4F)
Courtesy of GENERAL MOTORS COMPANY Headlamp Ballast- Left (T4F)
| Pin |
Wire |
Circuit |
Function |
| 1 |
2 BK |
250 |
Ground |
| 2 |
2 YE |
712 |
Left Headlamp Low Beam Supply Voltage |
Connector Part Information
- Harness Type: Left Headlamp Assembly
- OEM Connector: 12105470
- Service Connector: 88974075
- Description: 2-Way F (BK)
|
Terminal Part Information
- Terminated Lead: Service by Connector Assembly- 88974075
- Release Tool: Not Available
- Diagnostic Test Probe: Not Available
- Terminal/Tray: Not Available
- Core/Insulation Crimp: Not Available
|
