Power, Ground and Driver Information Center

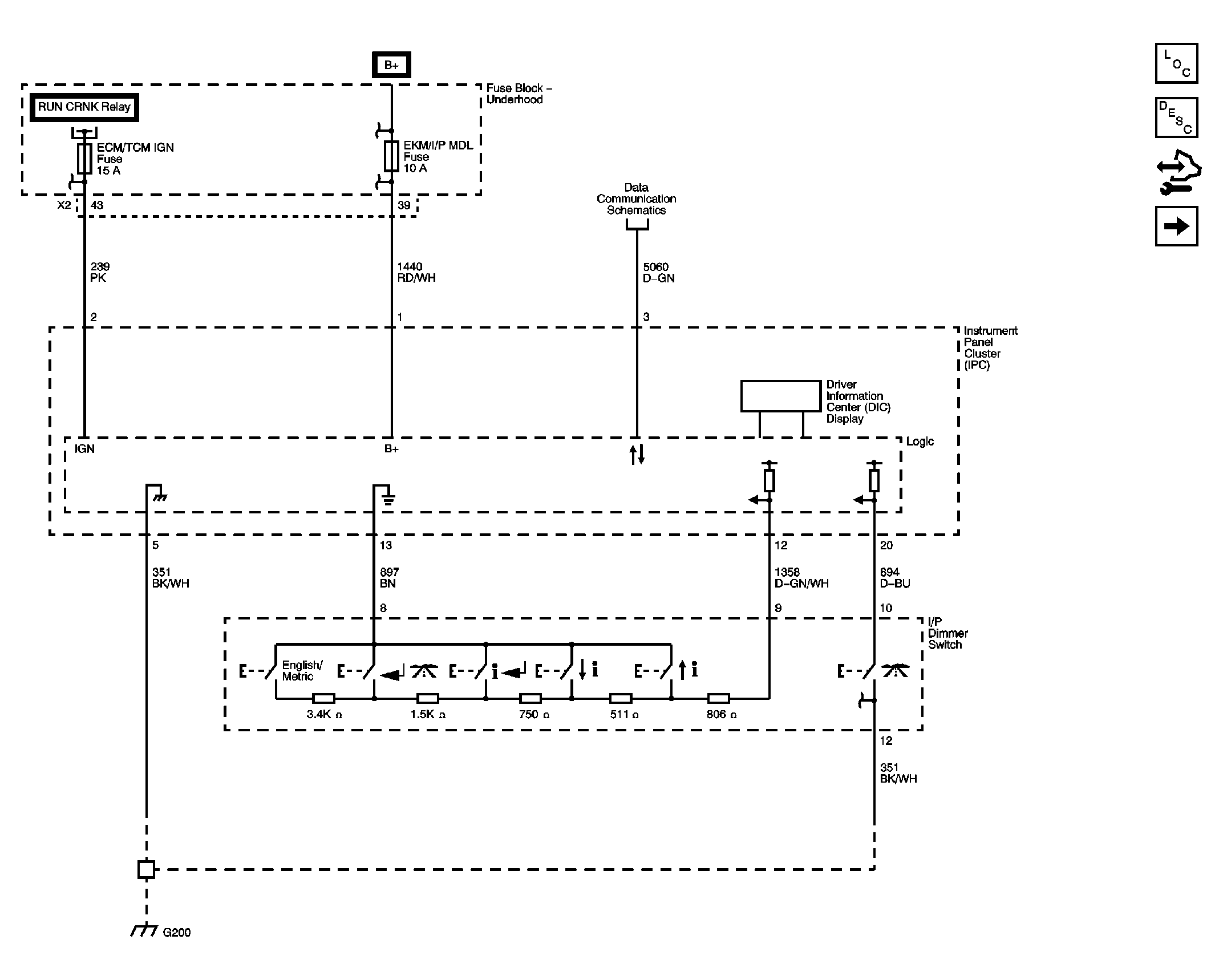

Fig 1: Power, Ground and Driver Information Center Wiring Schematic

GM2410723

Courtesy of GENERAL MOTORS COMPANY
