Instrument Cluster Wiring Schematics: Indicators

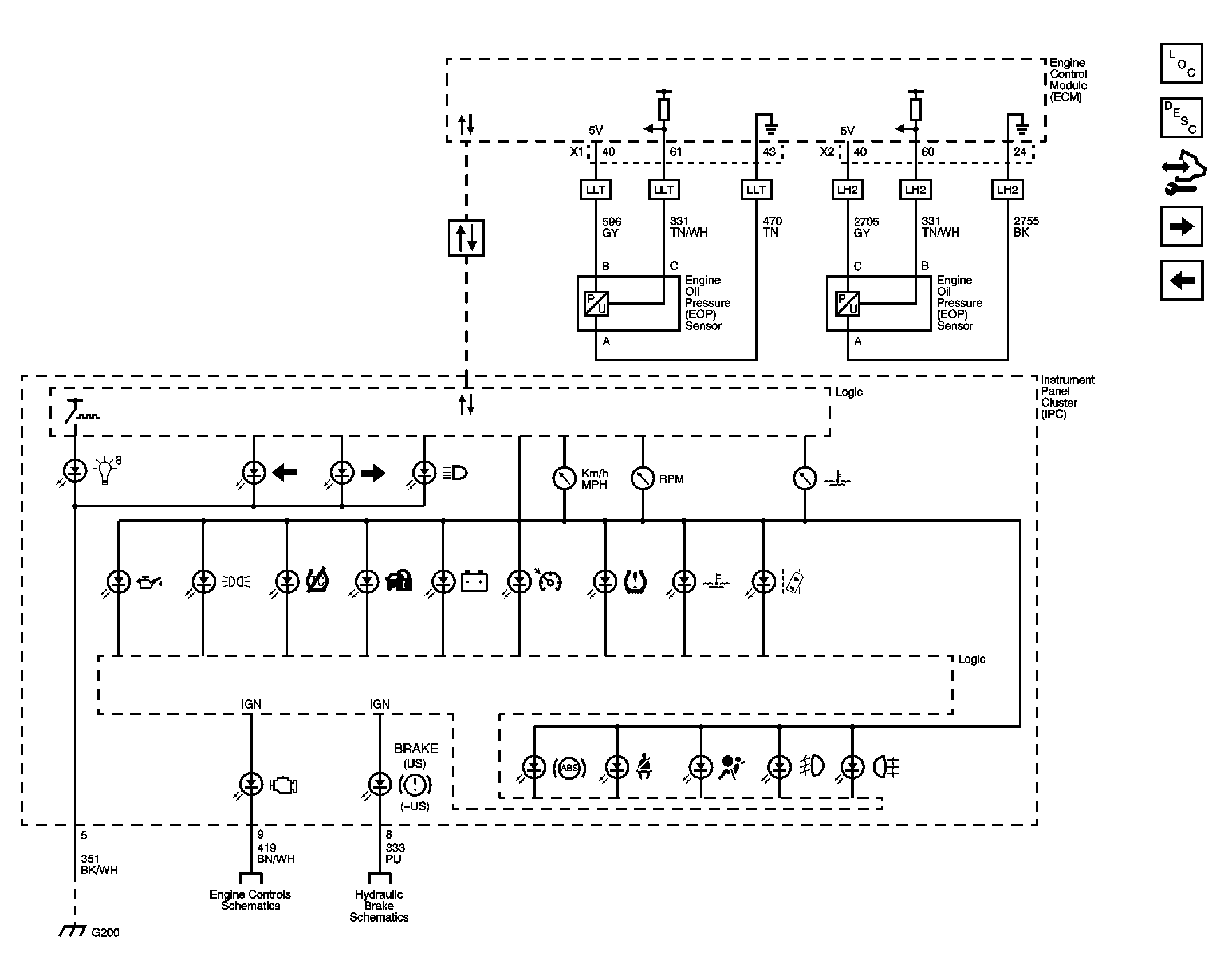

Fig 1: Indicators Wiring Schematic

GM2410732

Courtesy of GENERAL MOTORS COMPANY
