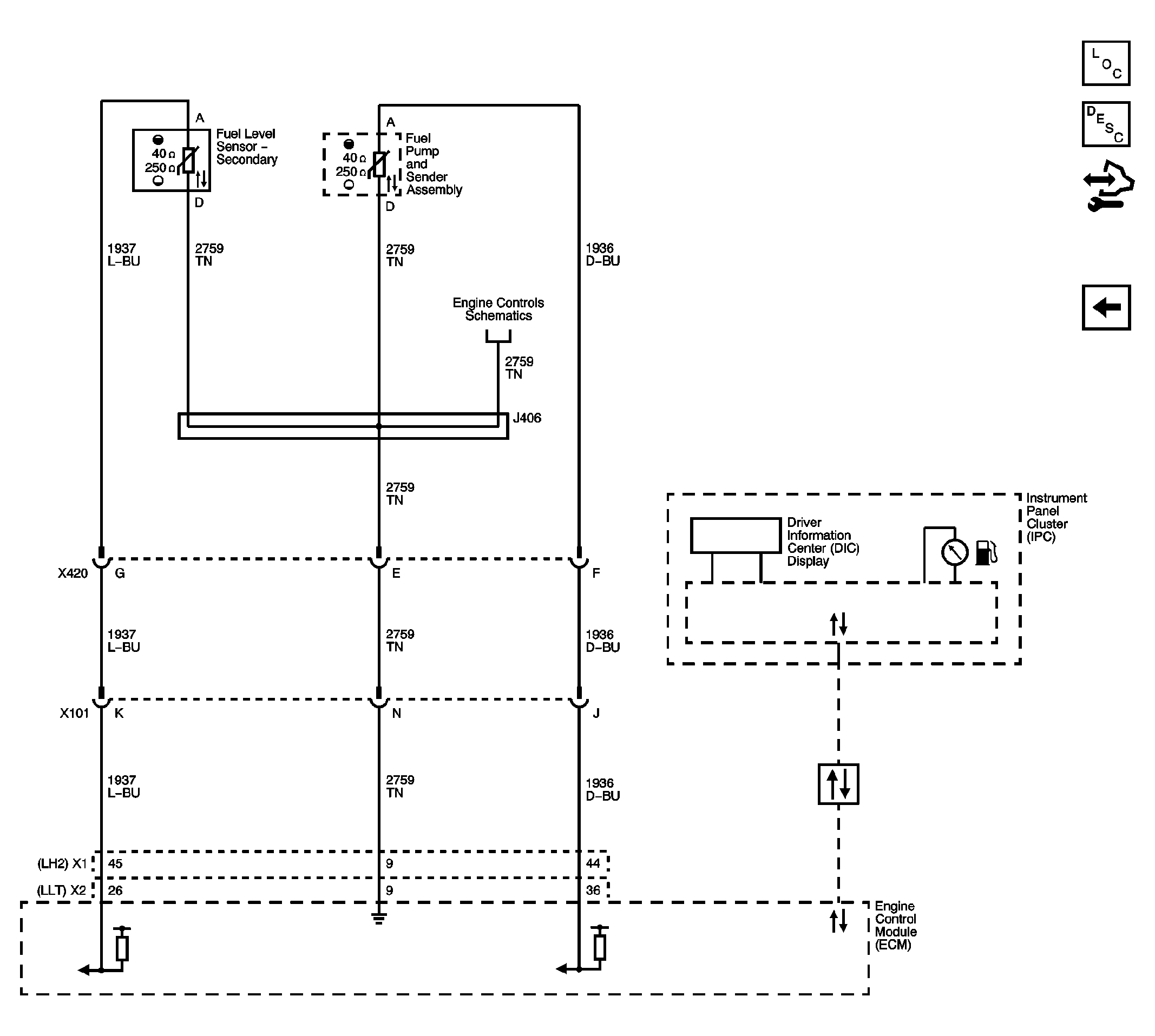

Home >> Cadillac >> 2011 >> STS AWD >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Instrument Panel System Displays And Gauges >> Wiring Diagrams >> Instrument Cluster Wiring Schematics >> Fuel Tank Level
