Removal Procedure

  1. Remove the instrument panel (I/P) retainer. Refer to Instrument Panel Retainer Replacement .

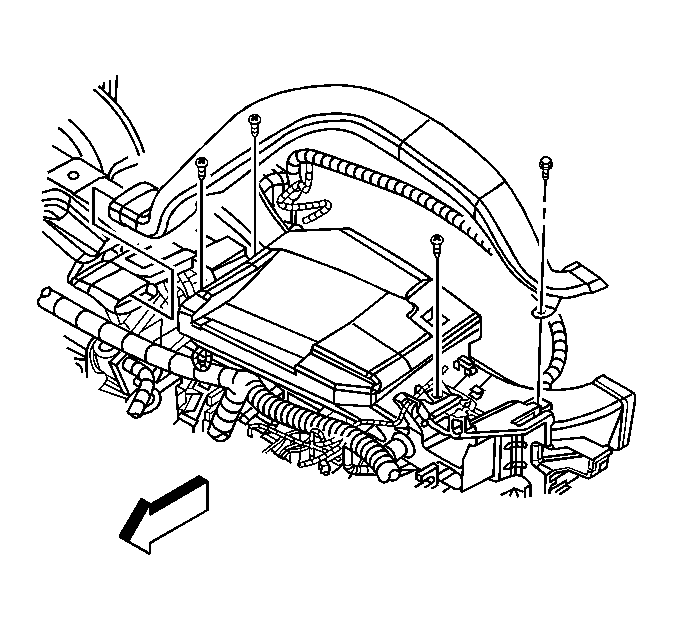

    2. Fig 1: View Of Head Up Display
    GM1385970Courtesy of GENERAL MOTORS COMPANY
  2. Remove the screws securing the heads up display to the I/P.
  3. Disconnect the electrical connectors.
