Home >> Cadillac >> 2011 >> STS AWD V6-3.6L >> Repair and Diagnosis >> Wiper and Washer Systems >> Wiper Switch >> Diagrams

Wiper Switch: Diagrams

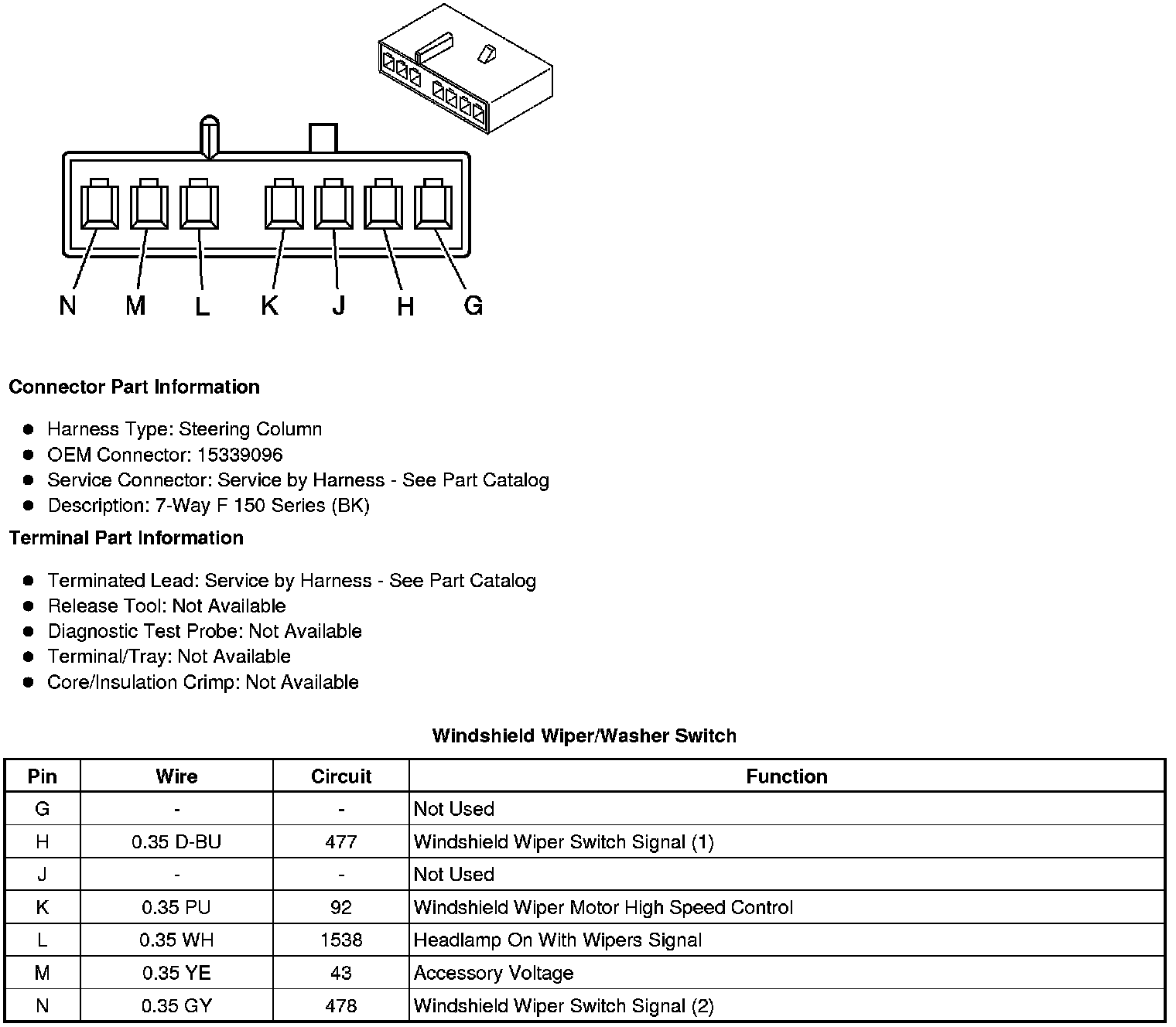

Component Connector End Views

Windshield Wiper/Washer Switch
