Power Steering Pump Bracket Replacement

Power Steering Pump Bracket Replacement (V6)

Removal Procedure

1. Remove the power steering pump. Refer to Power Steering Pump Replacement (V6) (Power Steering Pump Replacement).

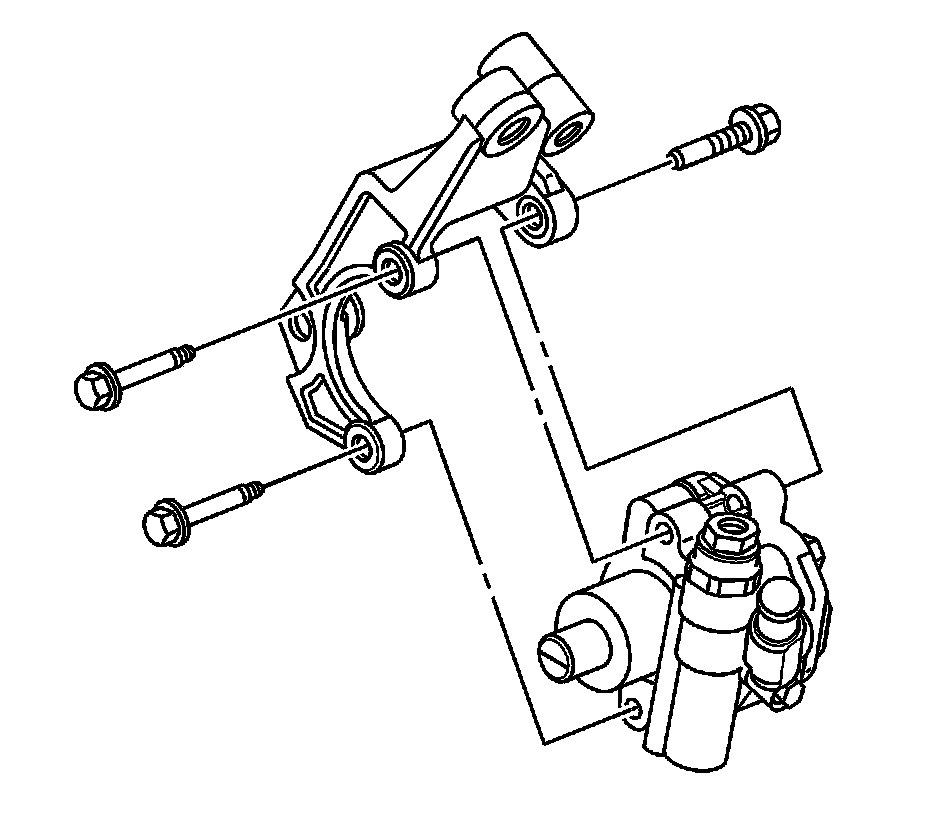

2. Remove the power steering pump bracket bolts.
3. Separate the power steering pump from the power steering pump bracket.

Installation Procedure




1. Align the power steering pump to the power steering pump bracket.

Caution: Refer to Fastener Caution (Fastener Caution).

2. Install the power steering pump bracket bolts and tighten to 25 Nm (18 lb ft).
3. Install the power steering pump. Refer to Power Steering Pump Replacement (V6) (Power Steering Pump Replacement).
