Rear Crankshaft Main Bearing Seal: Service and Repair

Crankshaft Rear Oil Seal and Housing Replacement

Removal Procedure

1. Remove the engine flywheel. Refer to Engine Flywheel Replacement (Service and Repair).
2. Remove the oil pan. Refer to Oil Pan Replacement (Service and Repair).

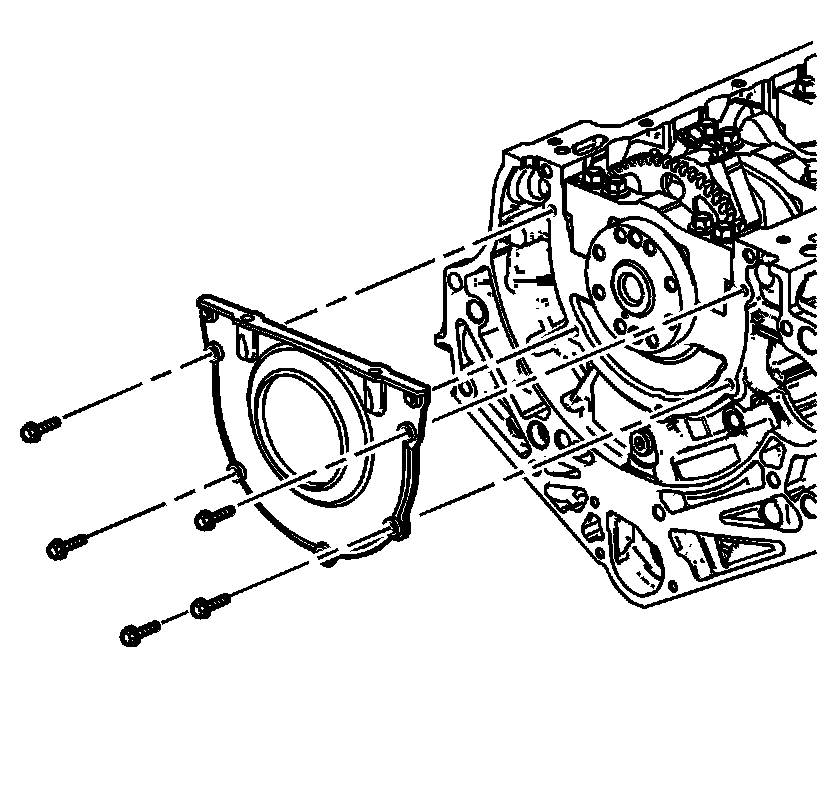

3. Remove the crankshaft rear oil seal and housing. Refer to Crankshaft Rear Oil Seal and Housing Removal (47. Crankshaft Rear Oil Seal and Housing Removal).

Installation Procedure




1. Install the crankshaft rear oil seal and housing. Refer to Crankshaft Rear Oil Seal and Housing Installation (94. Crankshaft Rear Oil Seal and Housing Installation).
2. Install the oil pan. Refer to Oil Pan Replacement (Service and Repair).
3. Install the engine flywheel. Refer to Engine Flywheel Replacement (Service and Repair).
