Headliner Harness Routing

Harness Routing Views

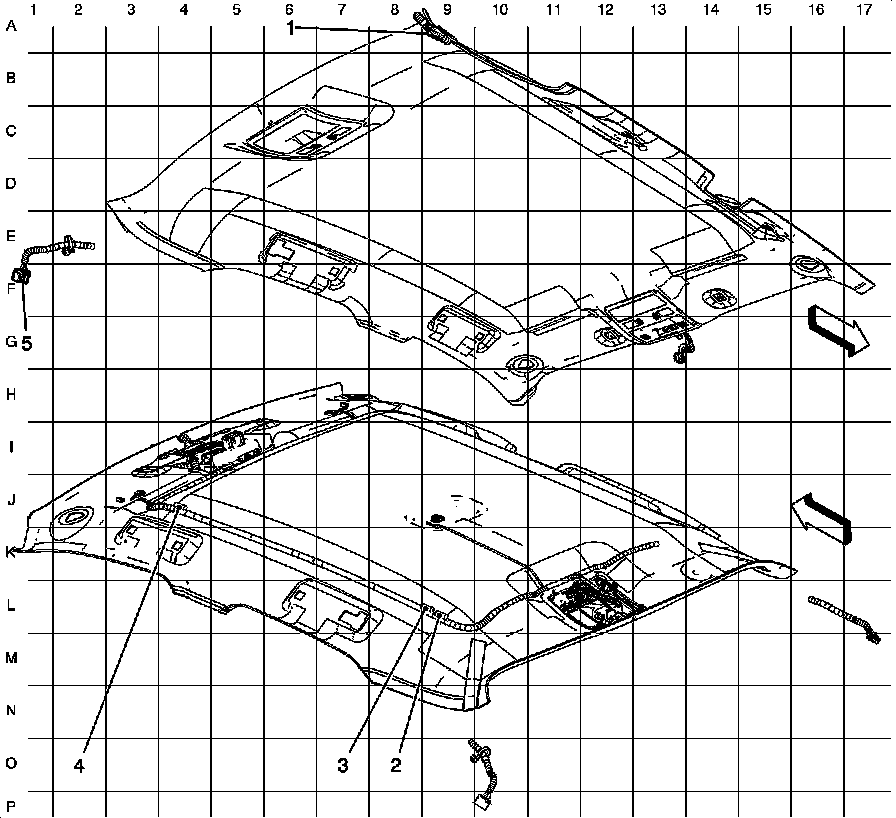

Headliner Harness Routing (without CF5)




1 - X305
2 - J309
3 - J308
4 - J310
5 - X308

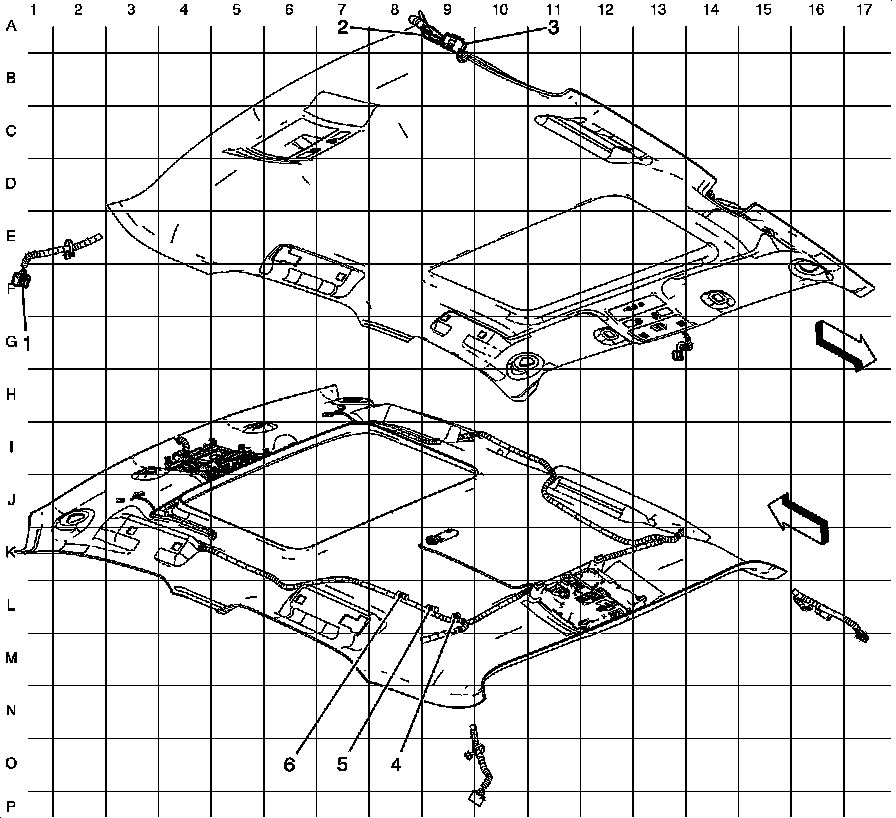

Headliner Harness Routing (CF5)




1 - X308
2 - X305
3 - X309
4 - J308
5 - X309
6 - J310
