Automatic Transmission/Transaxle

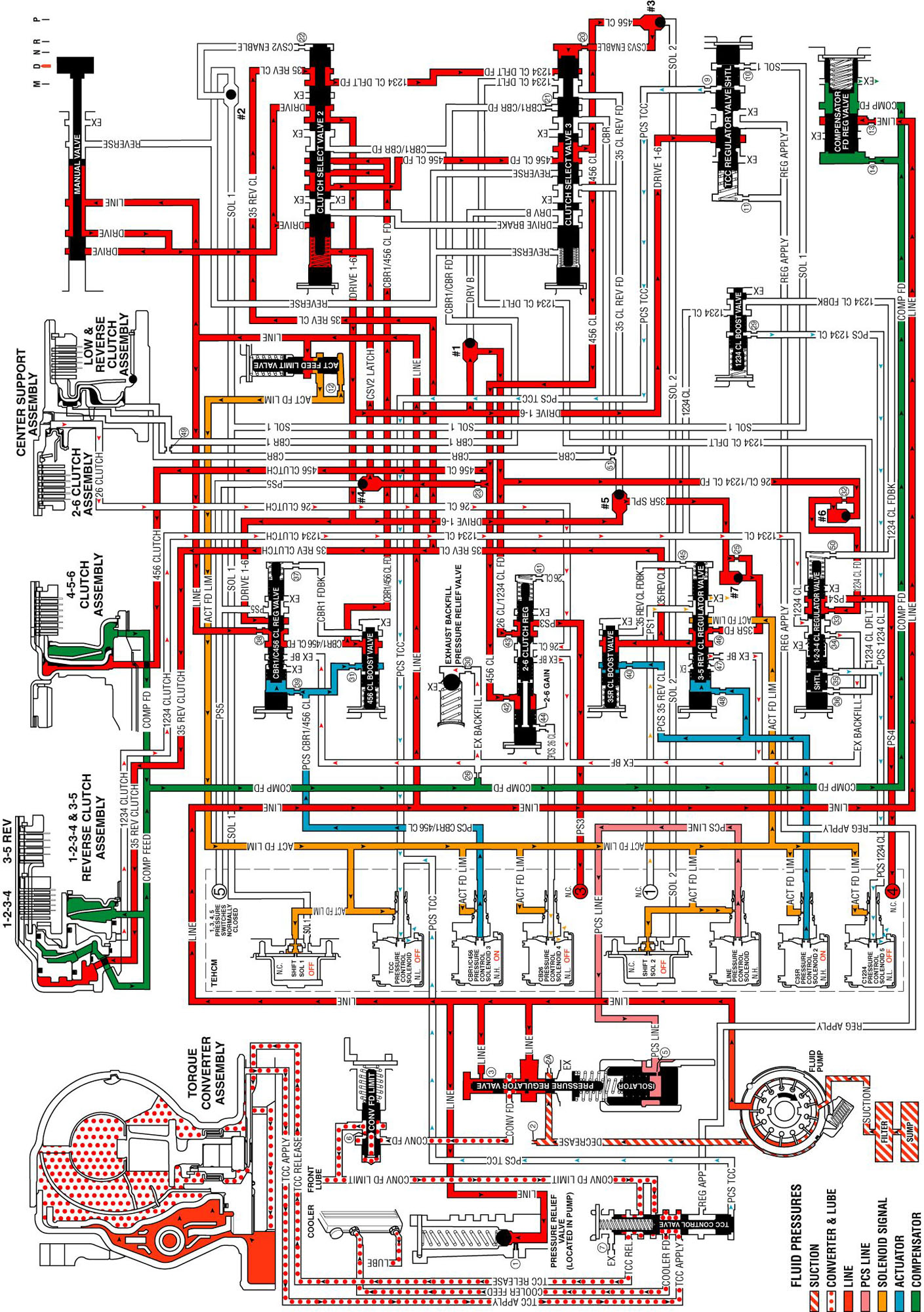

Park - Engine Running

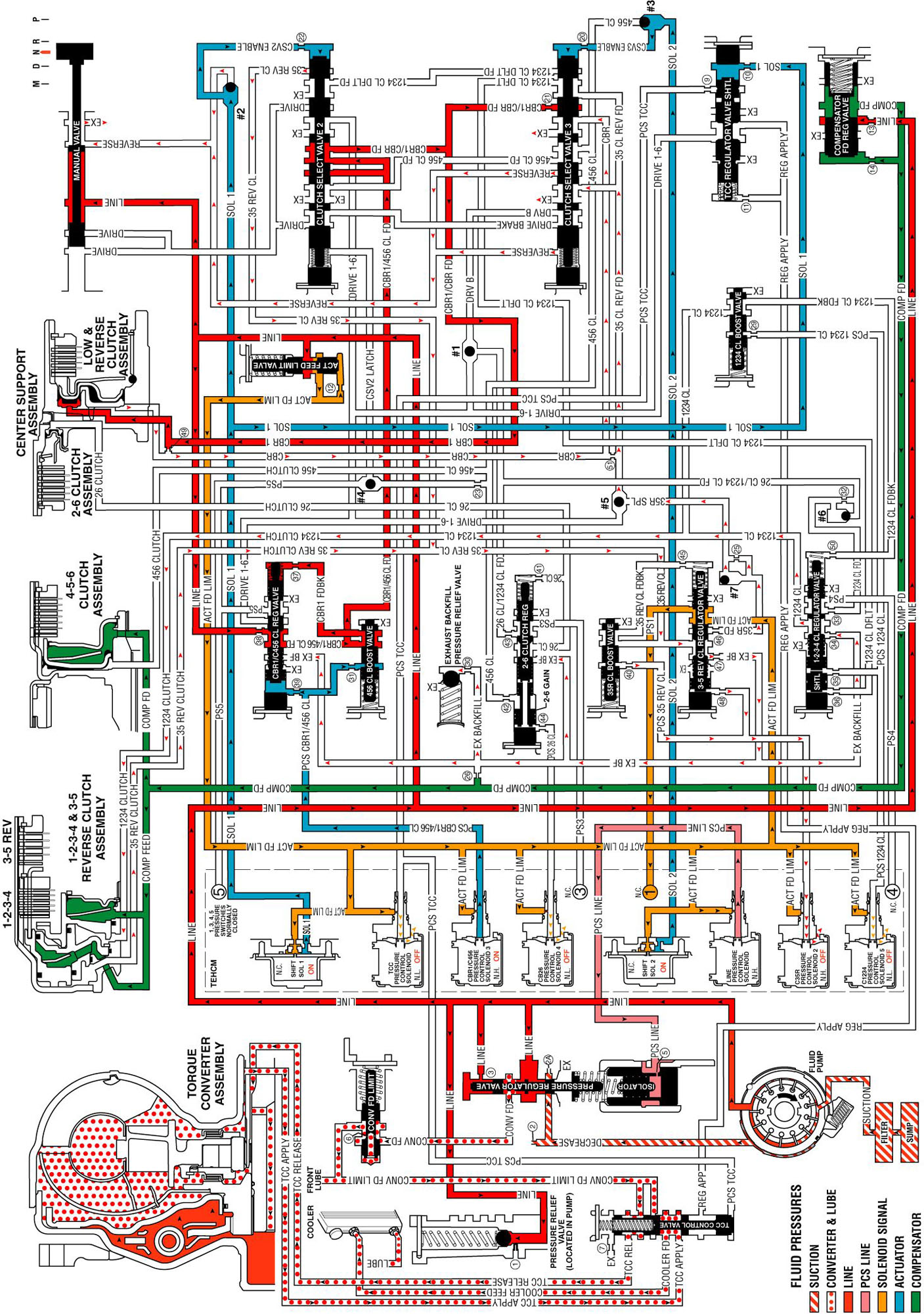

Reverse

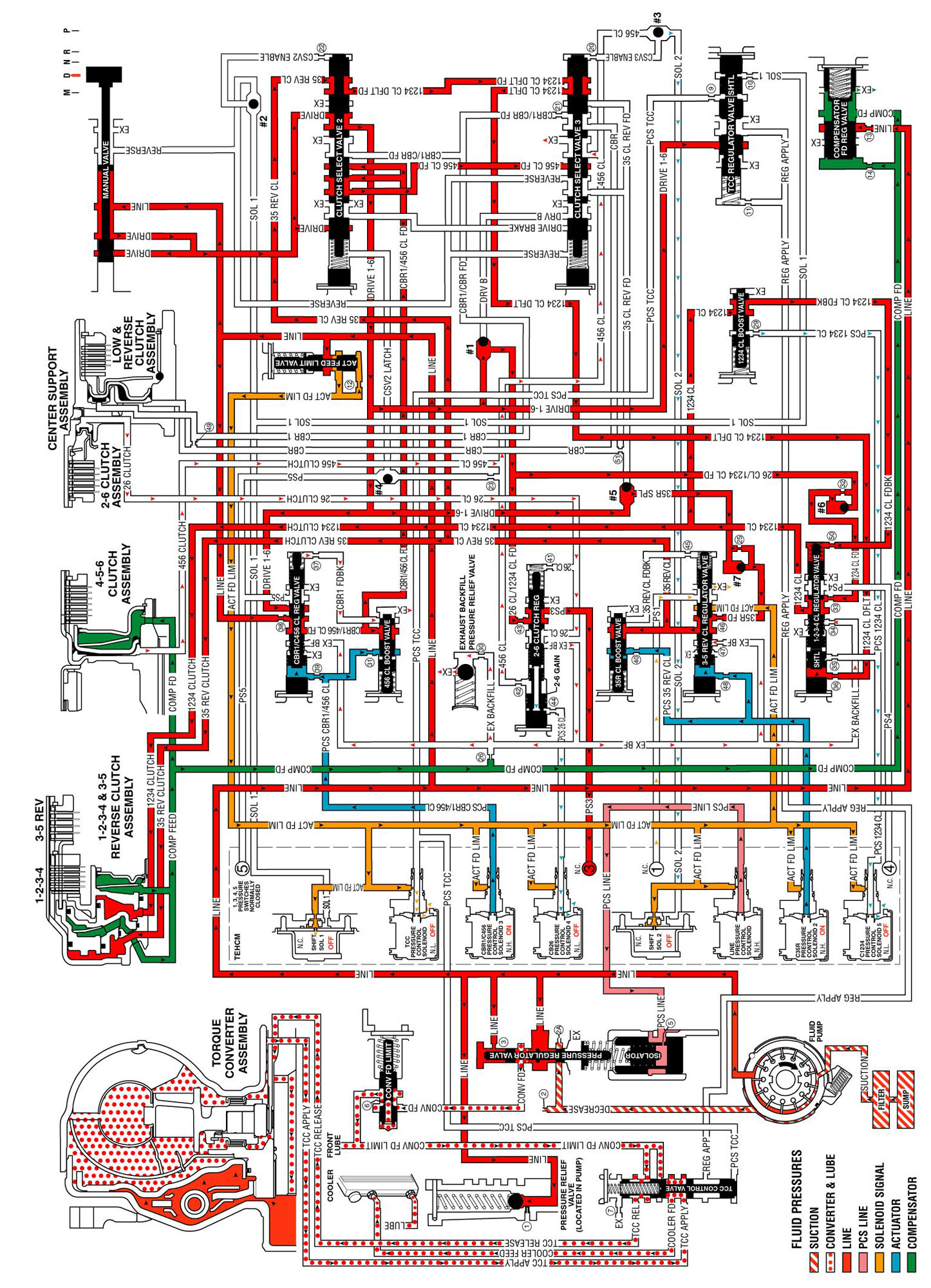

Neutral - Engine Running

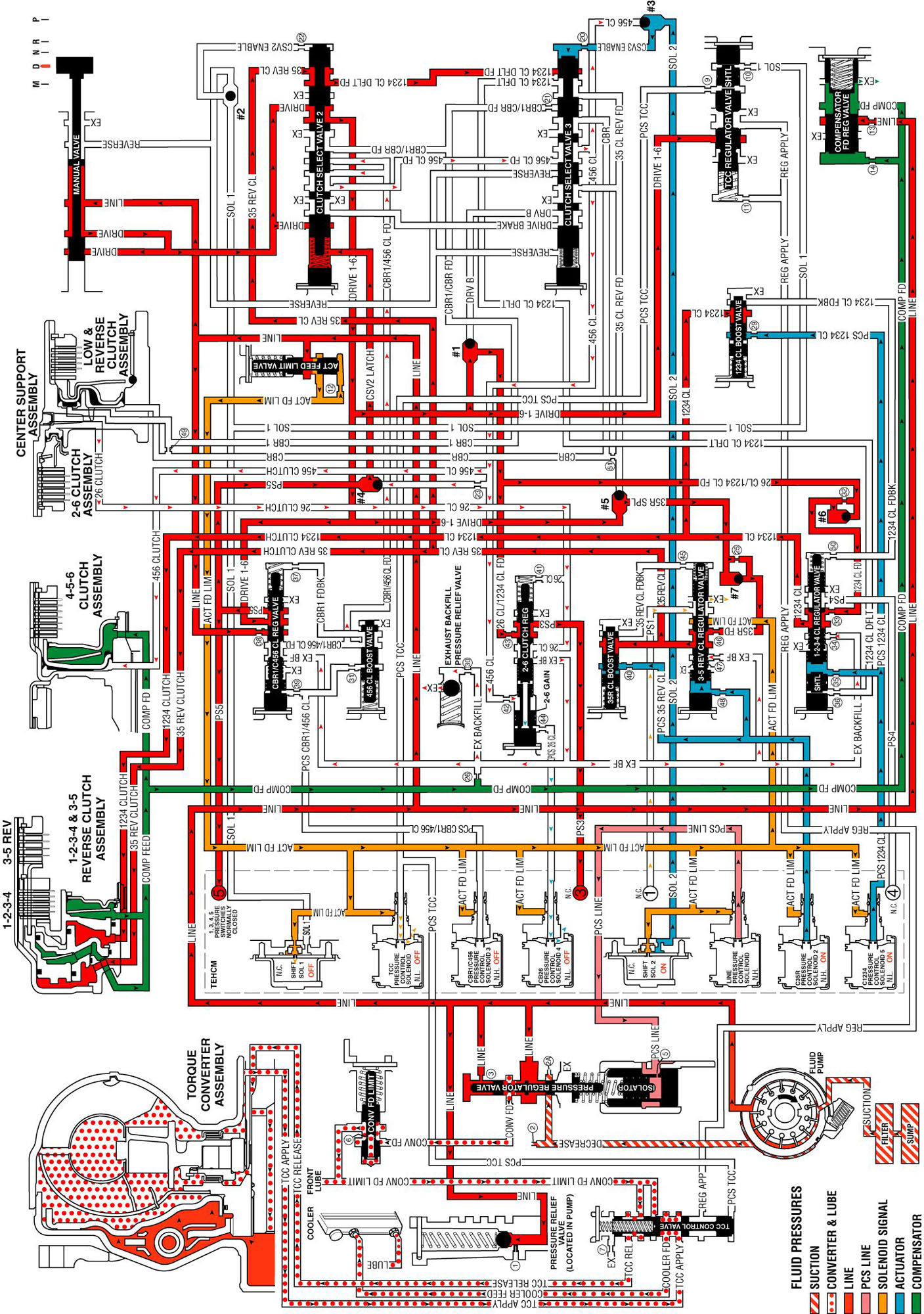

Drive Range, First Gear Engine Braking

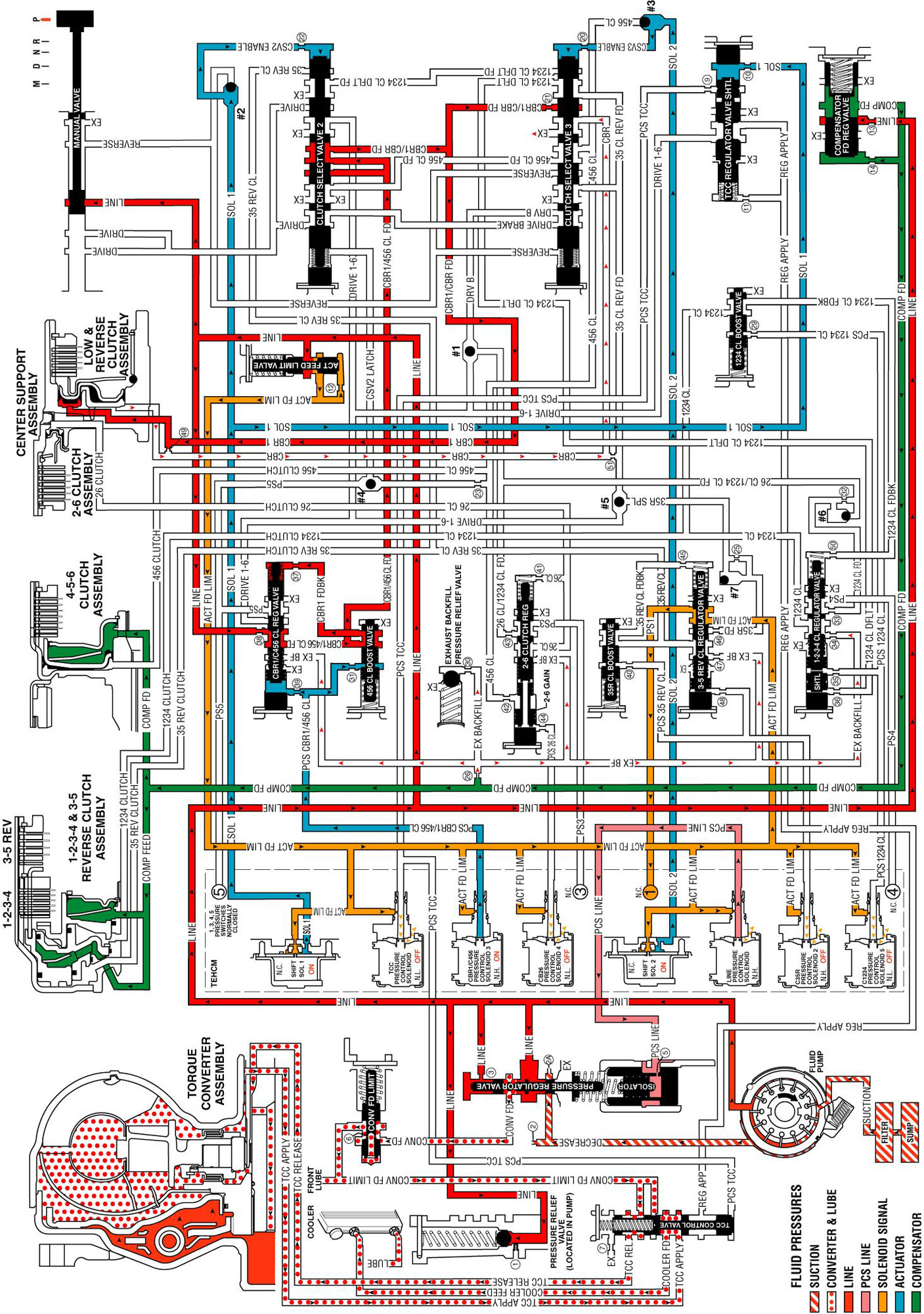

Drive Range, First Gear








Drive Range, Second Gear








Drive Range, Third Gear








Drive Range, Third Gear Default








Drive Range - Fourth Gear








Drive Range, Fifth Gear








Drive Range, Fifth Gear Default








Drive Range, Sixth Gear
