Home >> Cadillac >> 2011 >> STS AWD V6-3.6L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Suspension Control ( Automatic - Electronic ) >> Electronic Suspension Control

Electronic Suspension Control

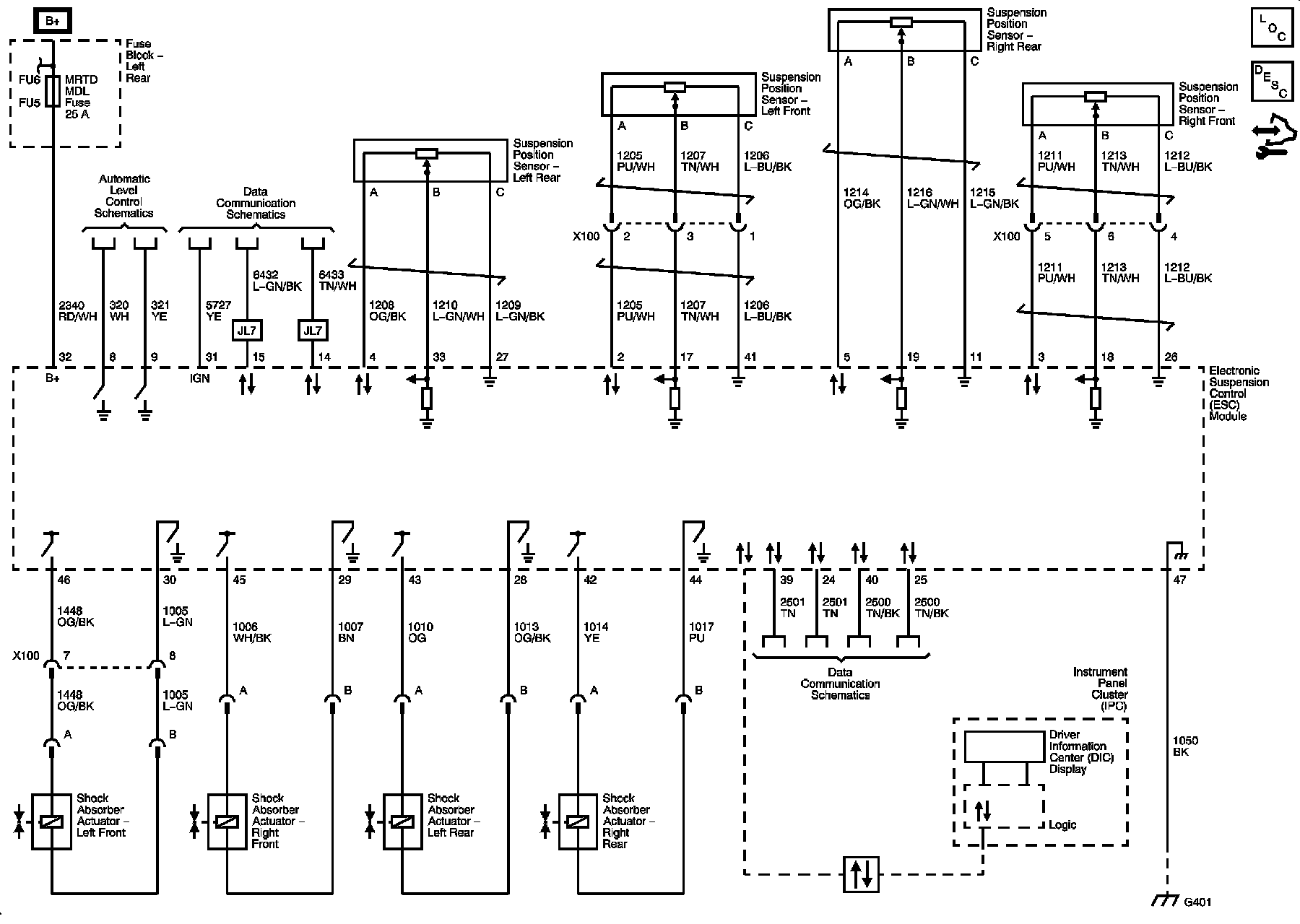

Electronic Suspension Control Schematics
