Outside Rearview Mirror Schematics




Outside Rearview Mirror Schematics

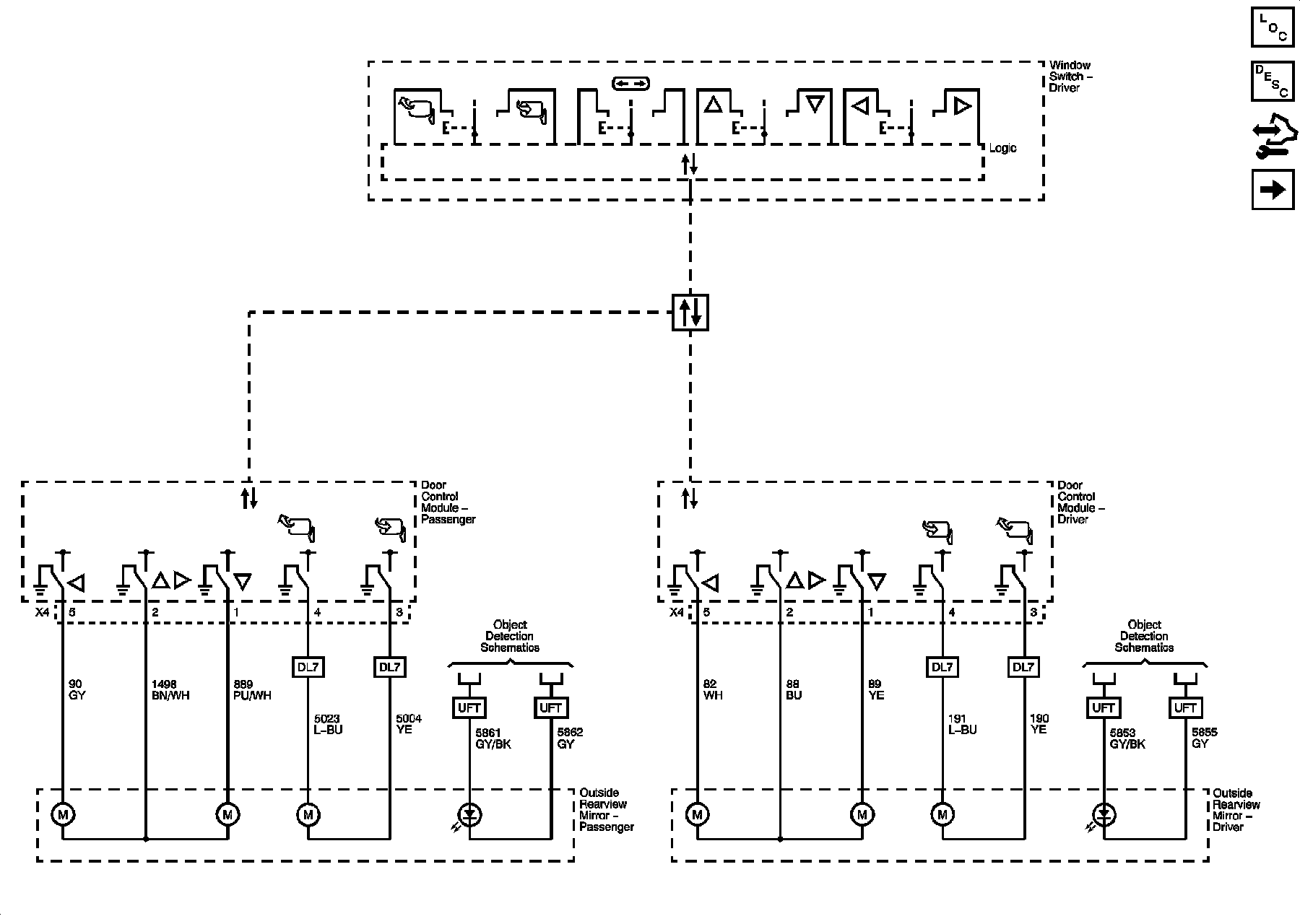

Driver and Passenger Side Outside Mirrors





Driver Side Outside Mirror (A45)





Passenger Side Outside Mirror (A45)





Heated Mirrors and Automatic Day/Night Mirror
