Radio/Navigation System Schematics
Radio/Navigation System Schematics
Radio Power, Ground, DLC and Audio Communications

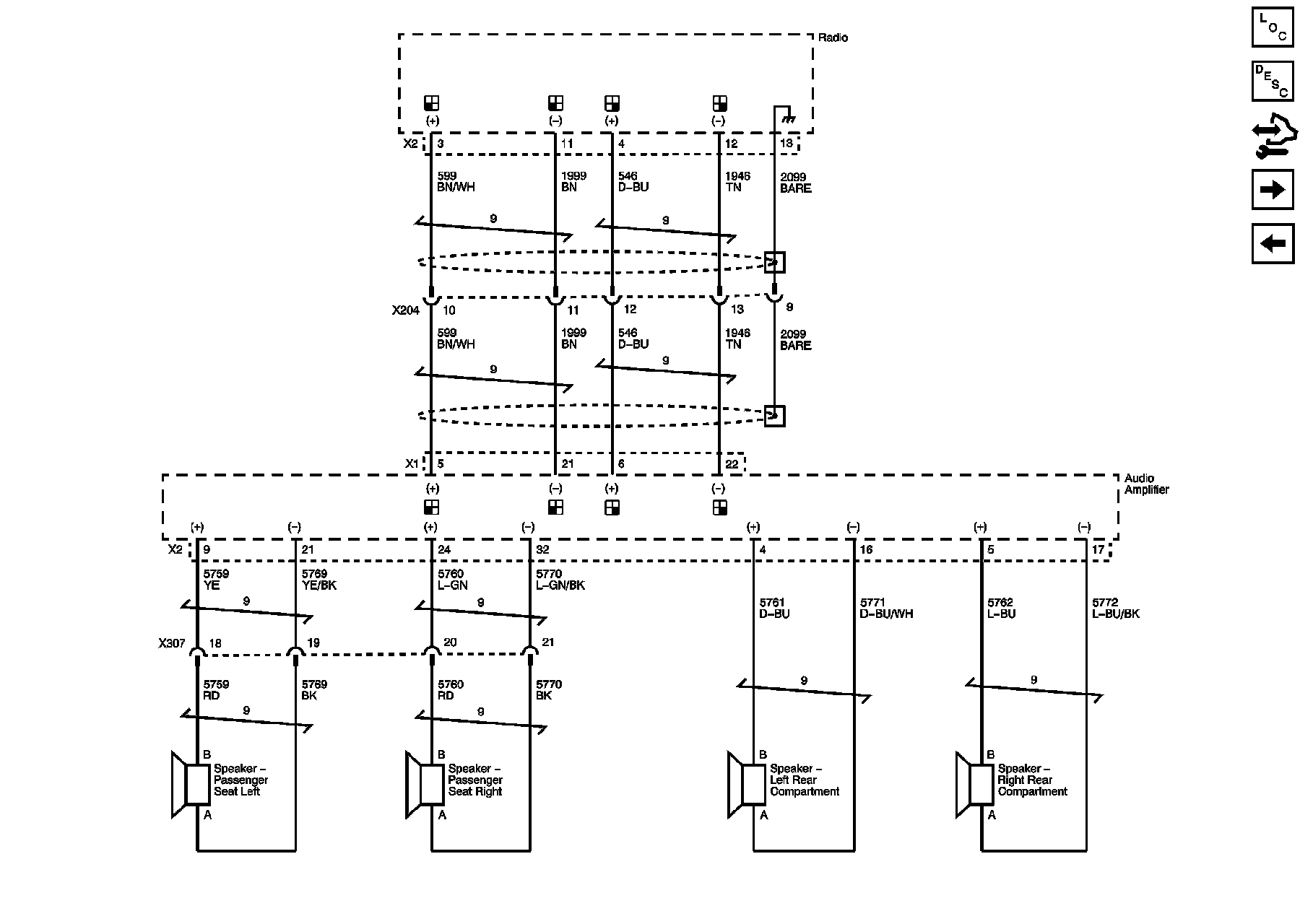

Speakers (UX8)

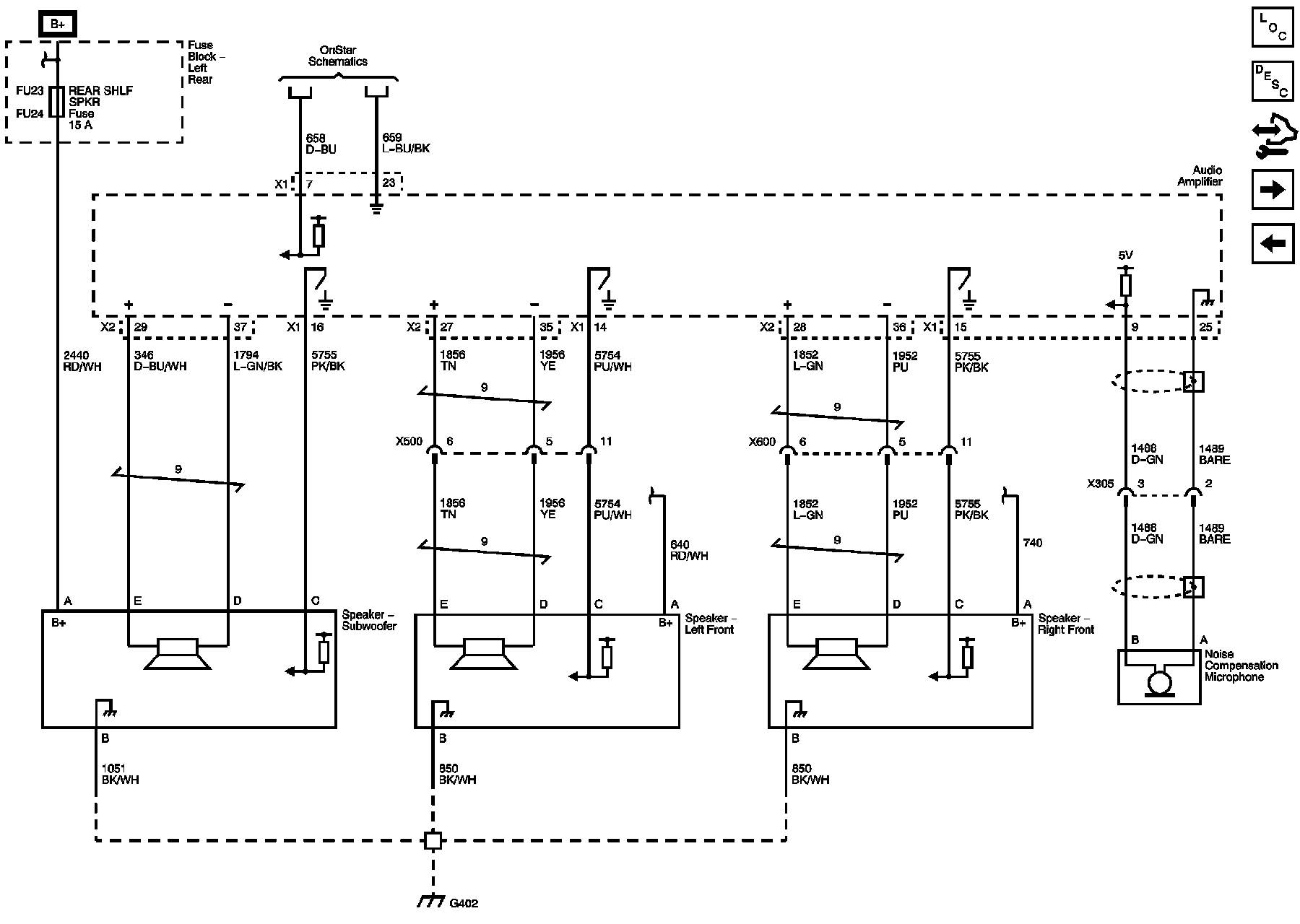

Speakers (UY5) (1 of 3)

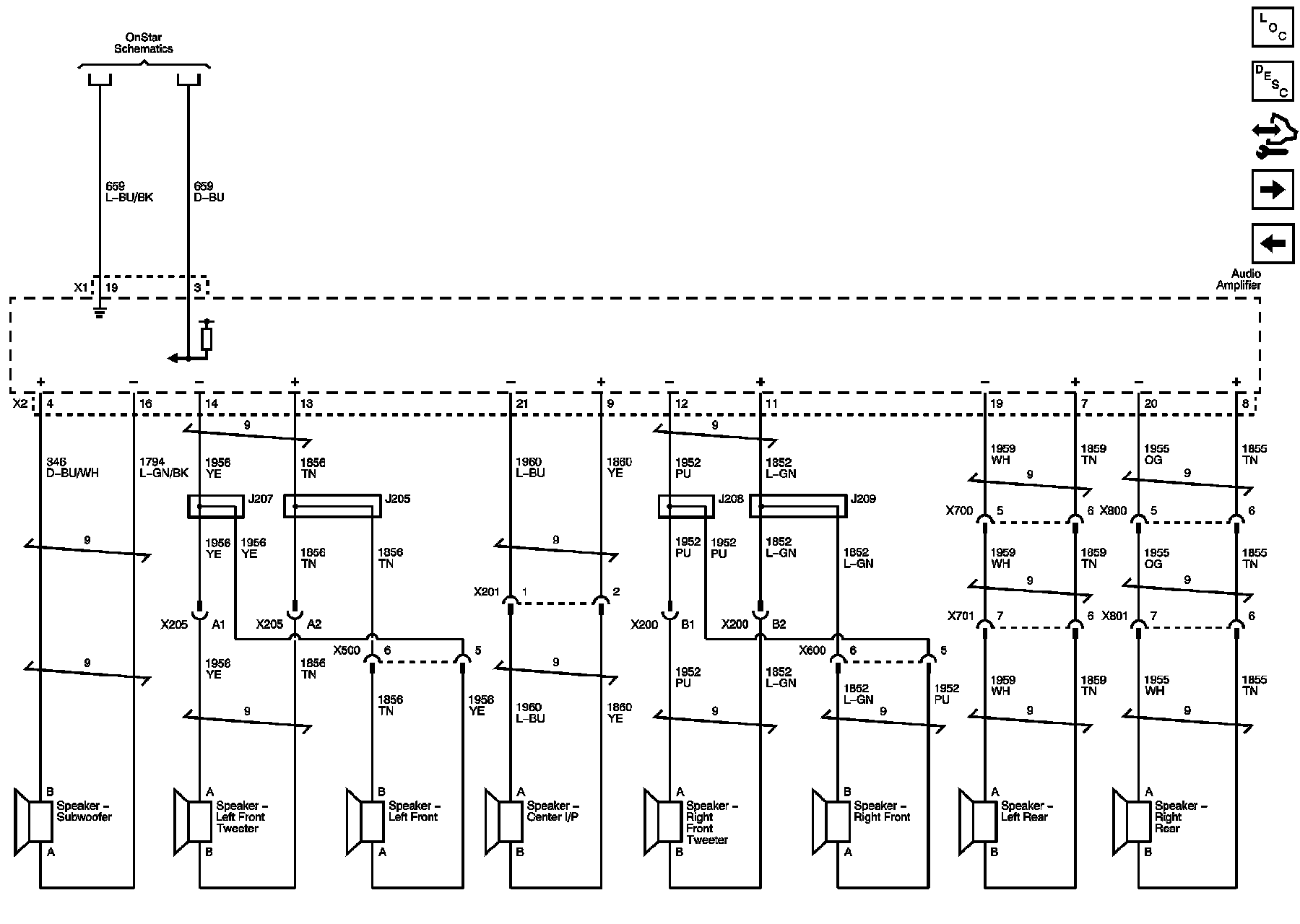

Speakers (UY5) (2 of 3)

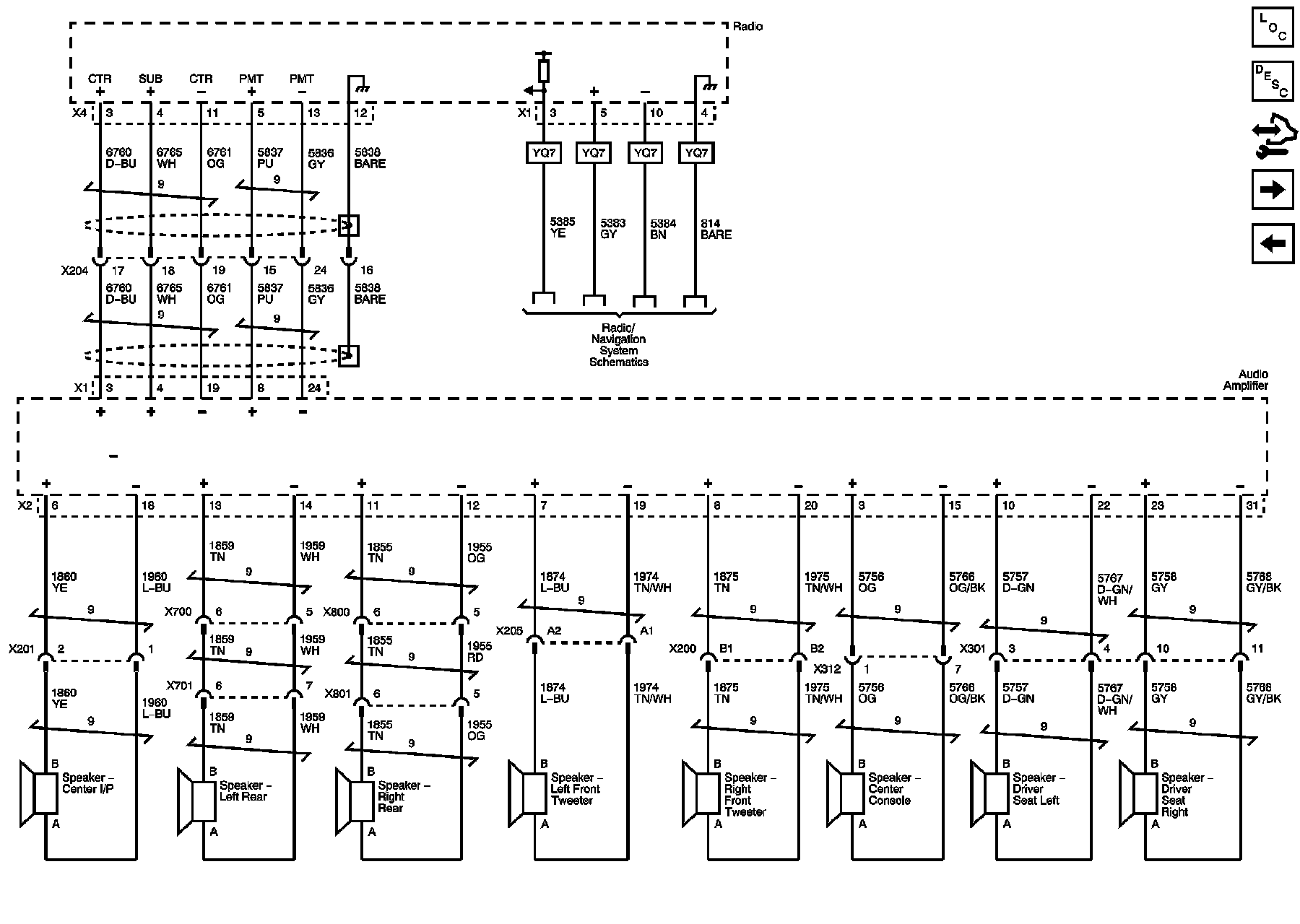

Speakers (UY5) (3 of 3)

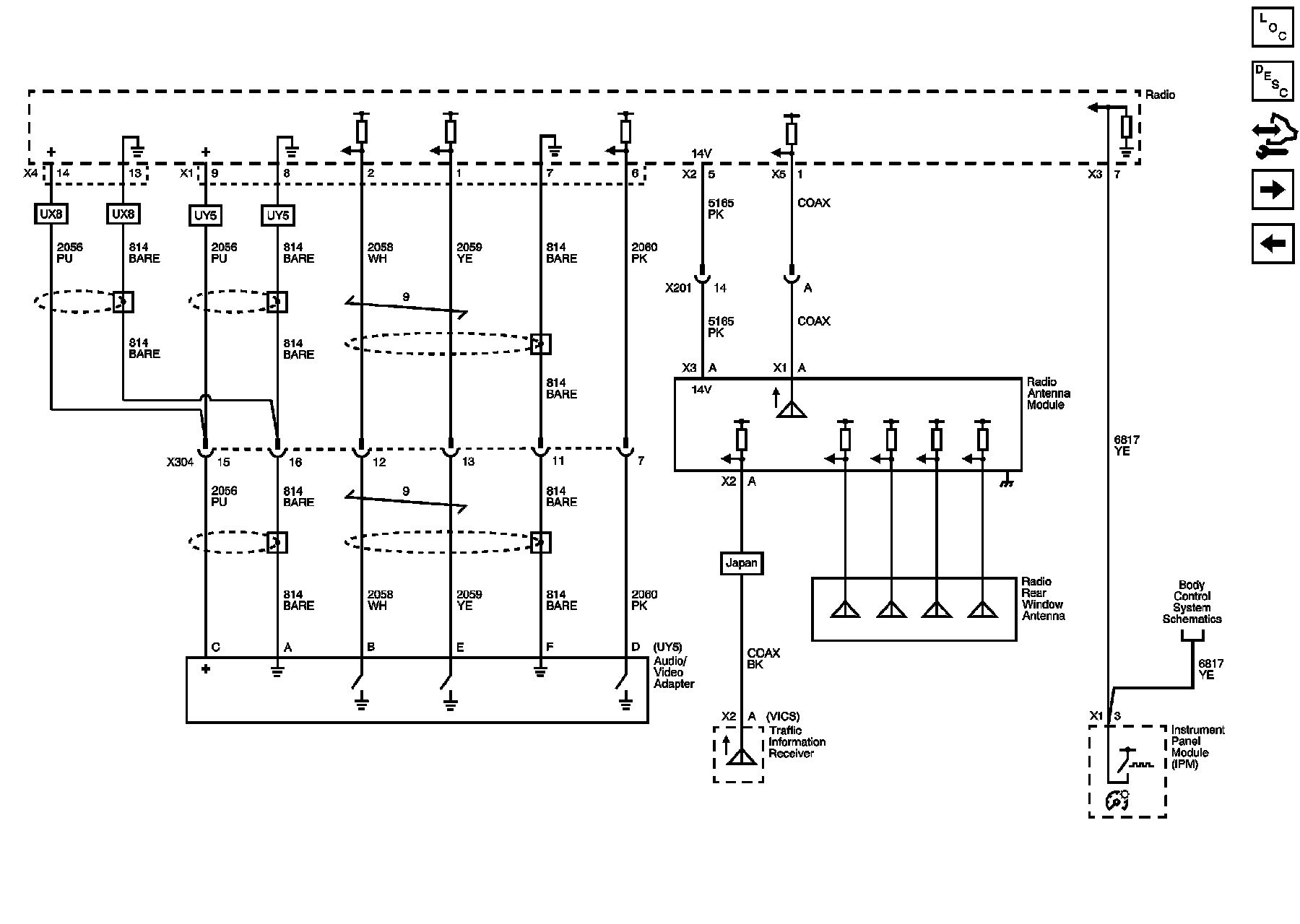

Radio Antennas, Audio/Video Adapter
Digital Radio Receiver (U2K)
Traffic Information Receiver Module (VICS) - Japan Only

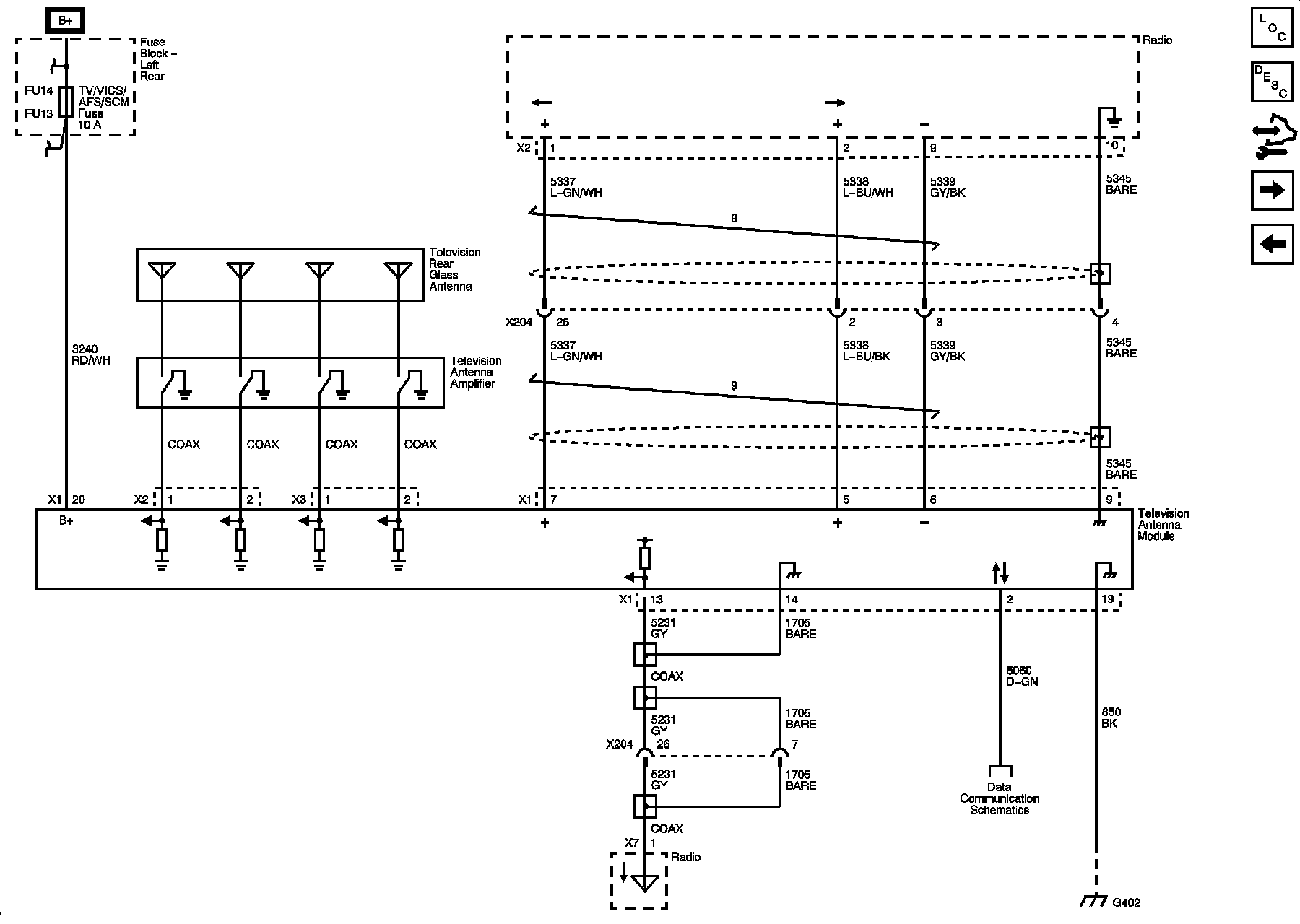

TV Tuner (YQ6 or YQ7)
