Variable Valve Timing Solenoid




Component Connector End Views

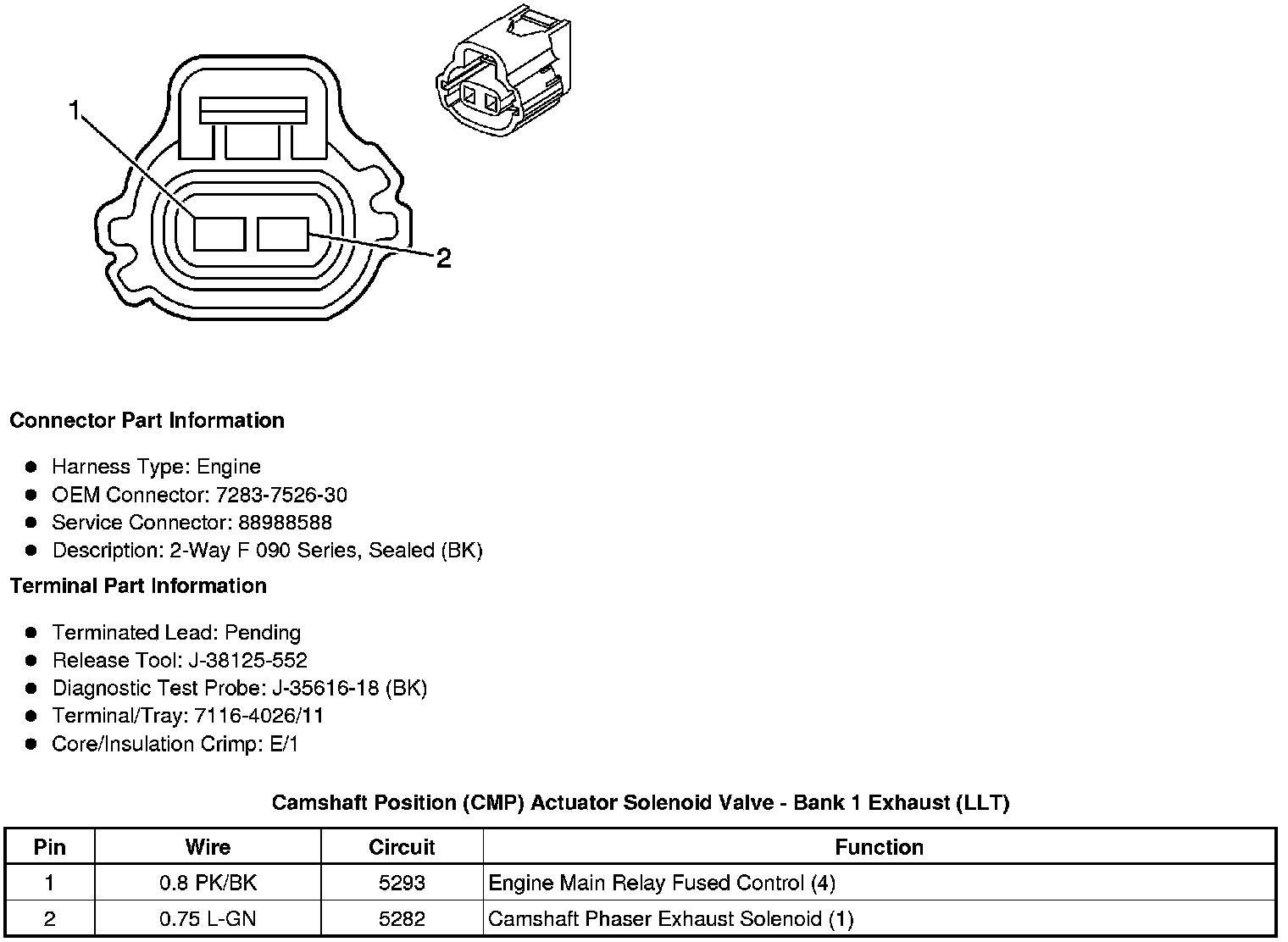

Camshaft Position (CMP) Actuator Solenoid Valve - Bank 1 Exhaust (LLT)





Camshaft Position (CMP) Actuator Solenoid Valve - Bank 1 Intake (LLT)





Component Connector End Views

Camshaft Position (CMP) Actuator Solenoid Valve - Bank 2 Exhaust (LLT)





Component Connector End Views

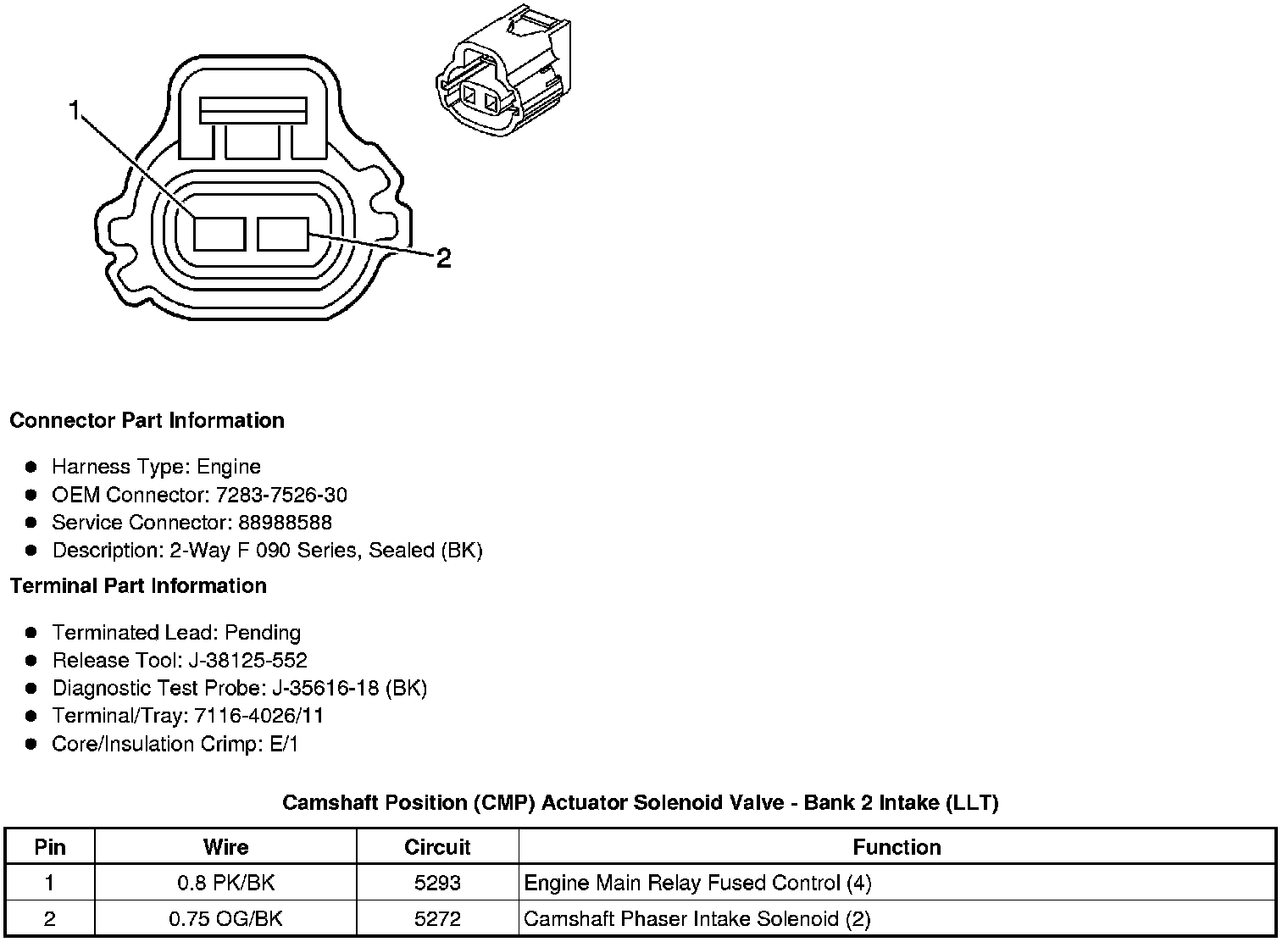

Camshaft Position (CMP) Actuator Solenoid Valve - Bank 2 Intake (LLT)
