Cadillac
>>
2011
>>
STS AWD V6-3.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Sunroof / Moonroof Switch
Sunroof / Moonroof Switch

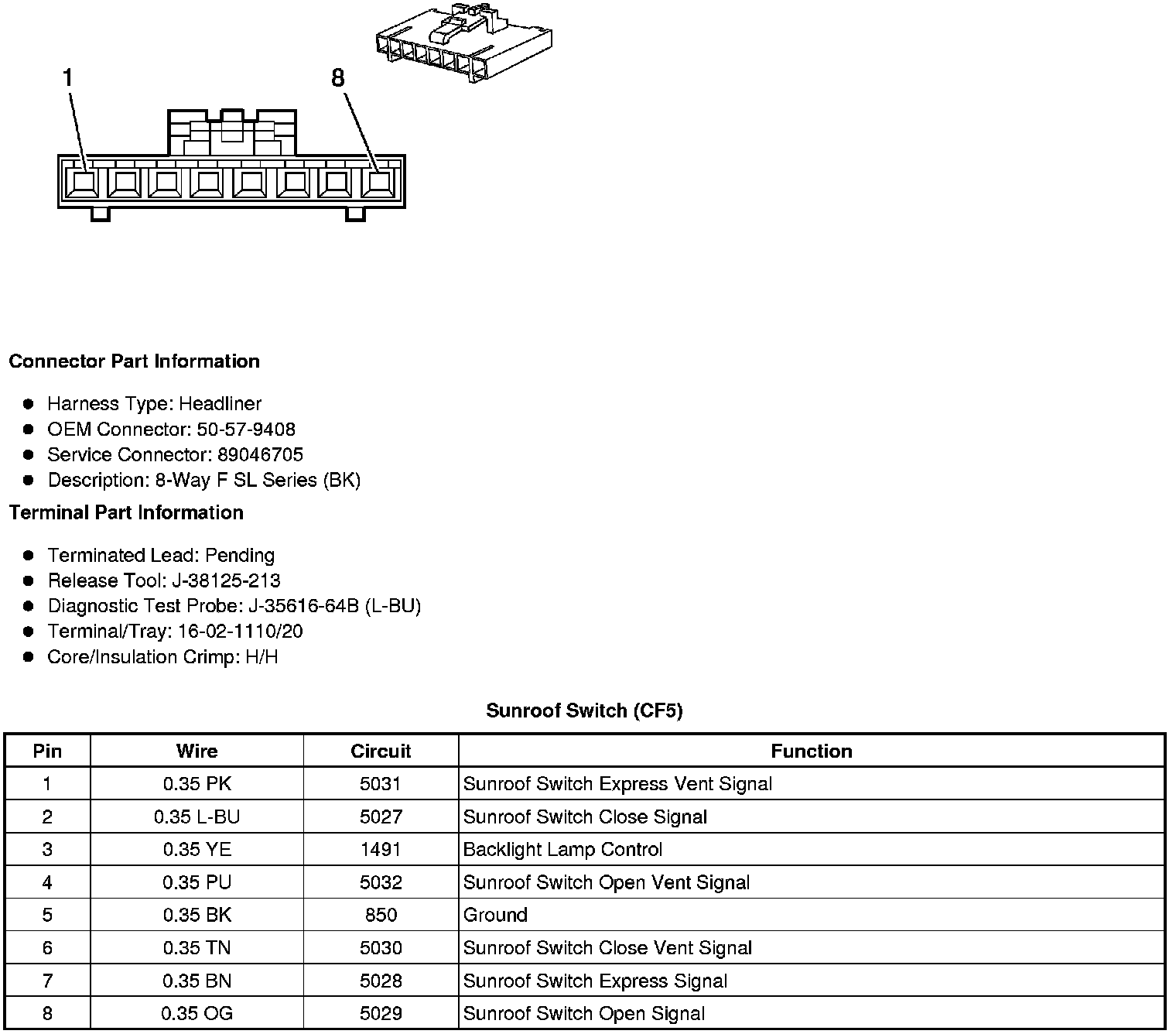

Component Connector End Views
Sunroof Switch (CF5)
