Seat Fan




Component Connector End Views

Ventilated Seat Blower Motor - Driver Back (KB6)





Ventilated Seat Blower Motor - Driver Cushion (KB6)

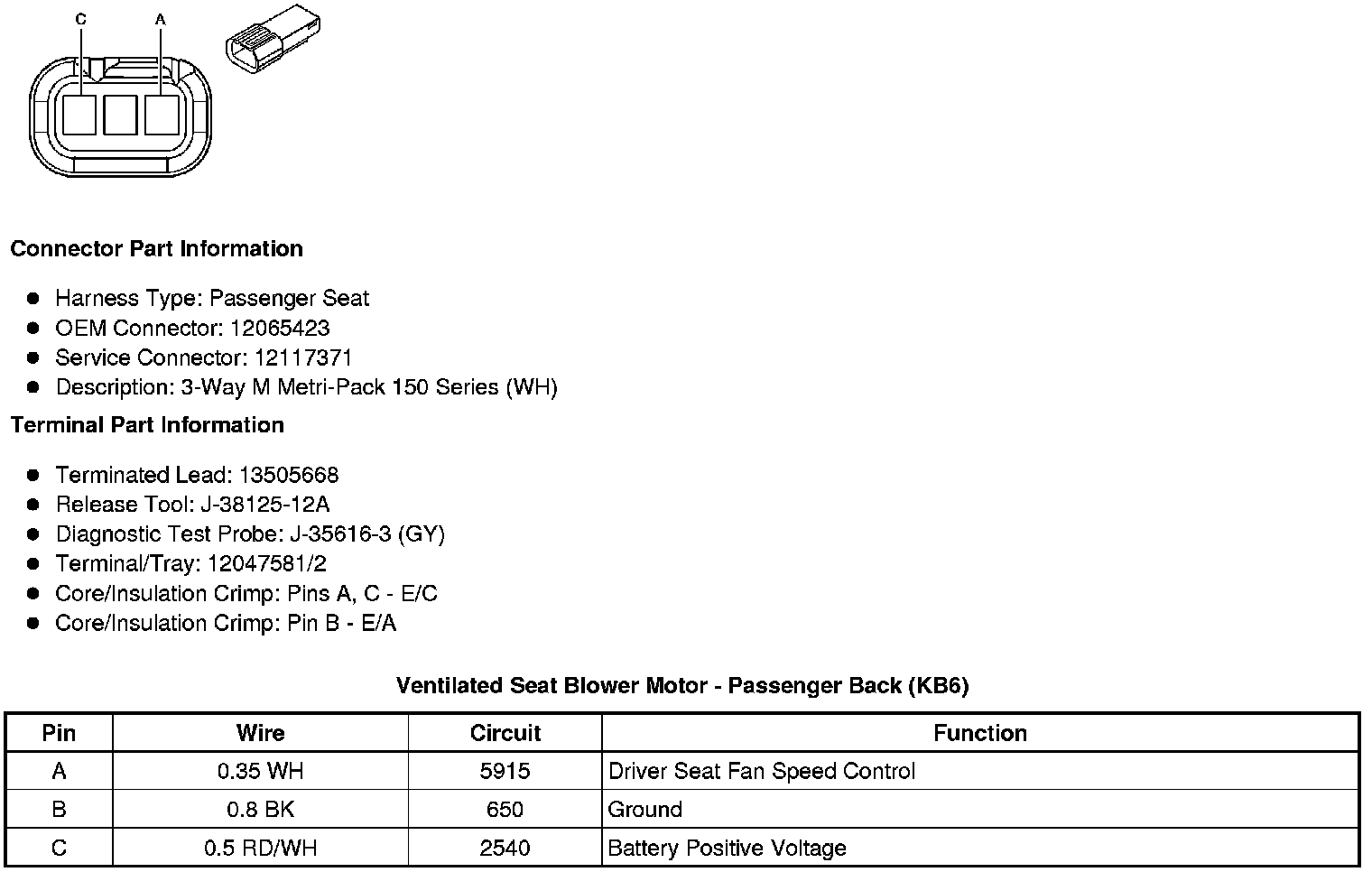

Ventilated Seat Blower Motor - Passenger Back (KB6)





Ventilated Seat Blower Motor - Passenger Cushion (KB6)
