Seat Belt Buckle Switch




Component Connector End Views

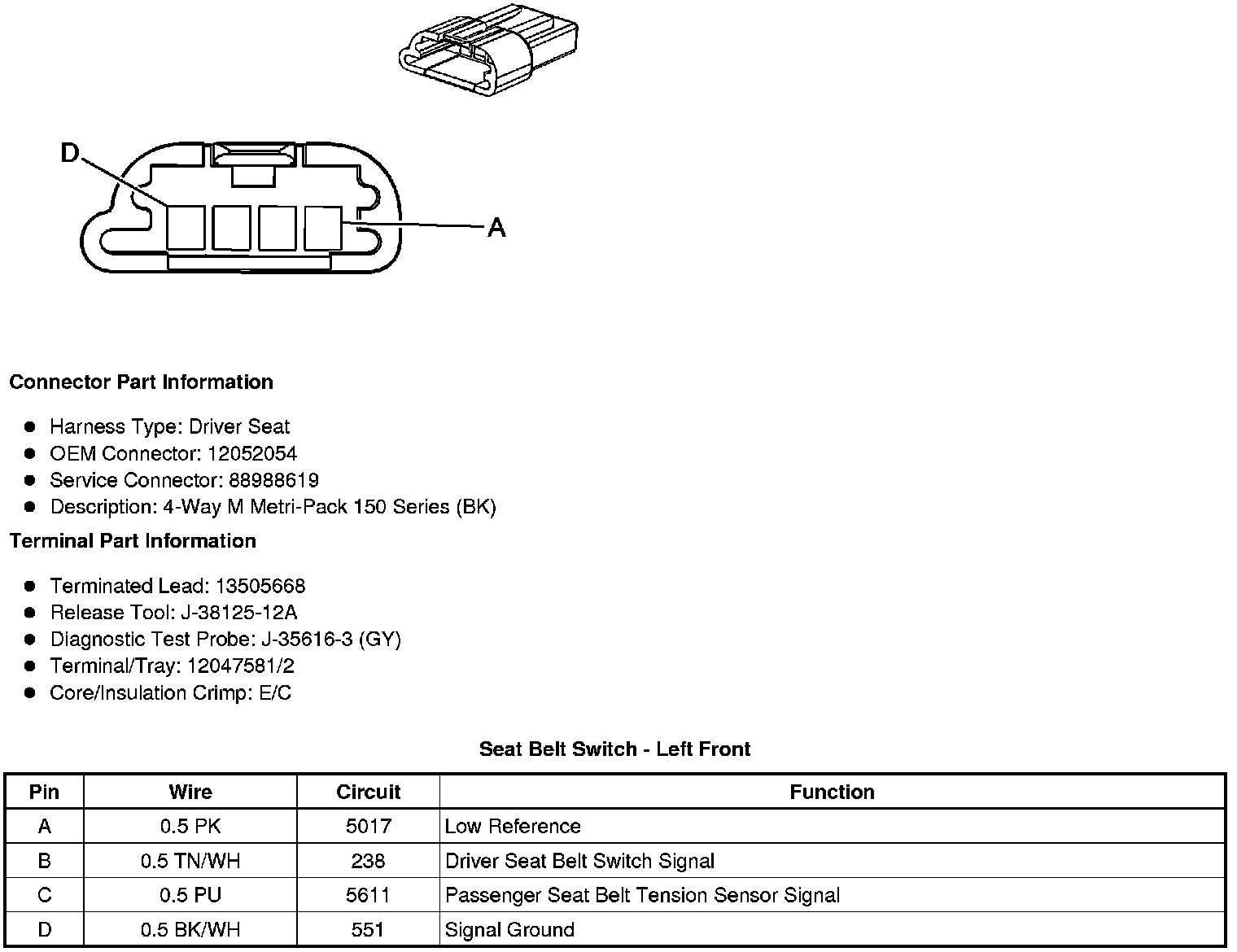

Seat Belt Switch - Left Front

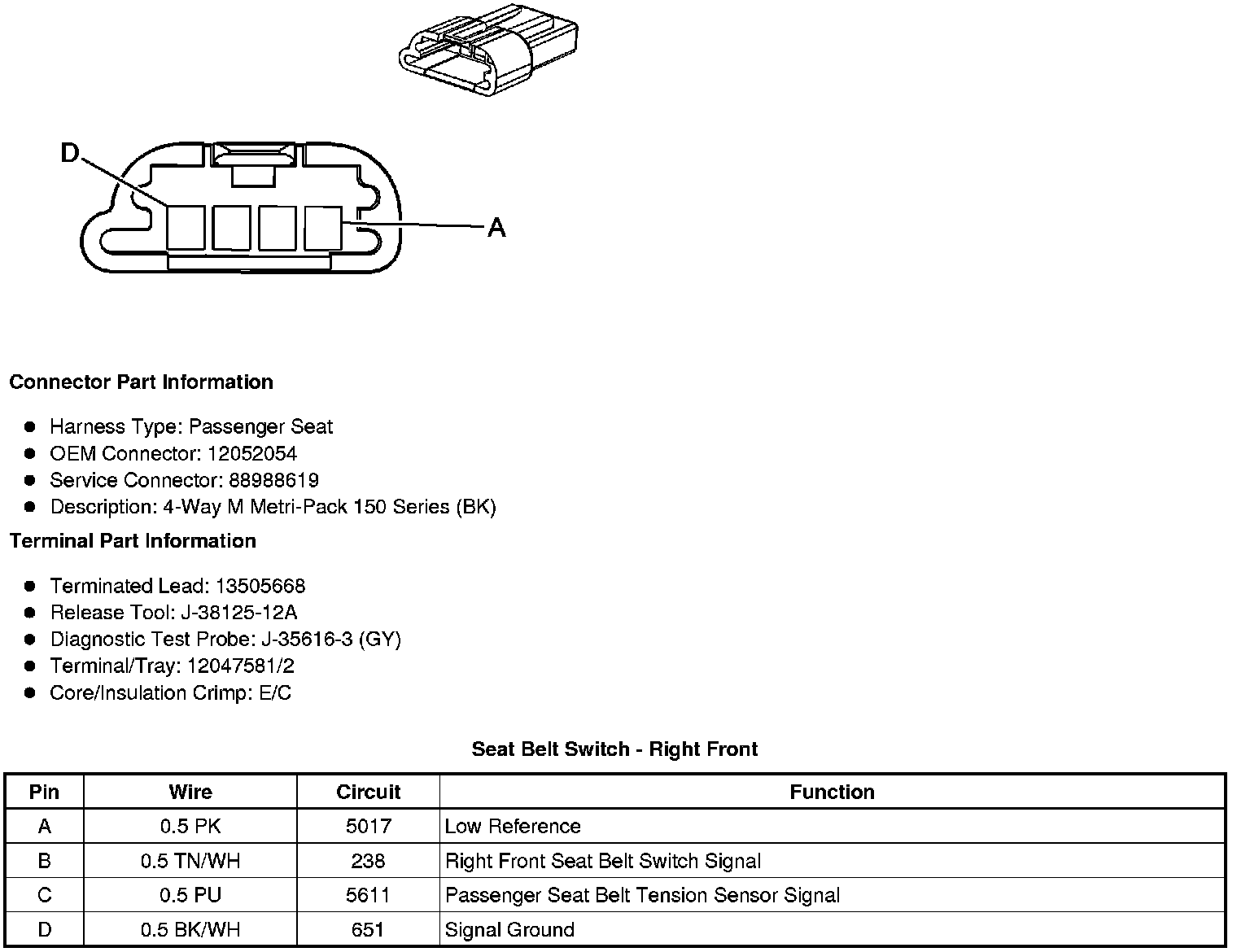

Seat Belt Switch - Right Front
