Radiator Cooling Fan Motor

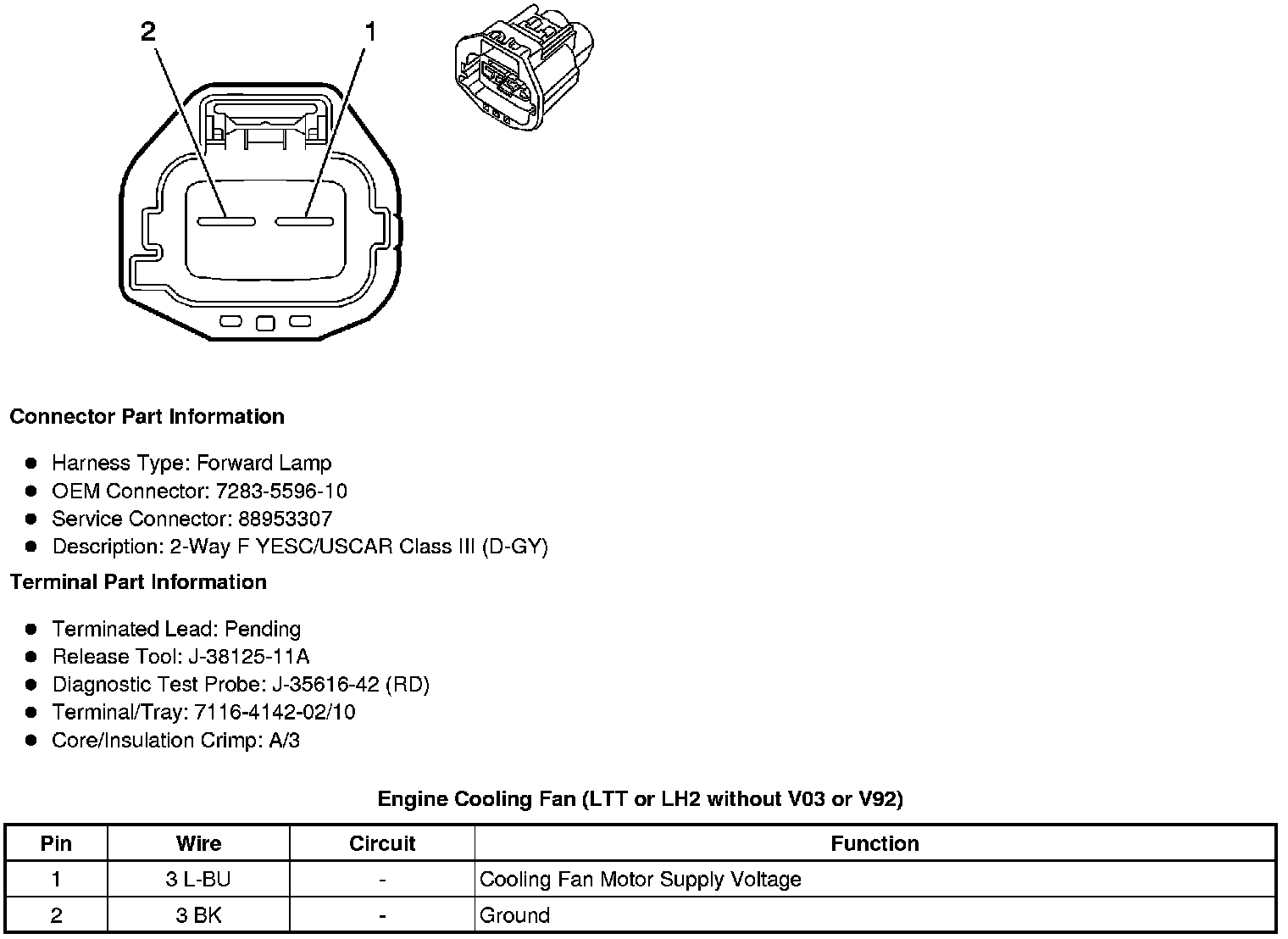

Radiator Cooling Fan Motor
Component Connector End Views
Engine Cooling Fan (LTT or LH2 without V03 or V92)
