Ignition Coil




Component Connector End Views

Ignition Coil 1 (LLT)





Ignition Coil 2 (LLT)

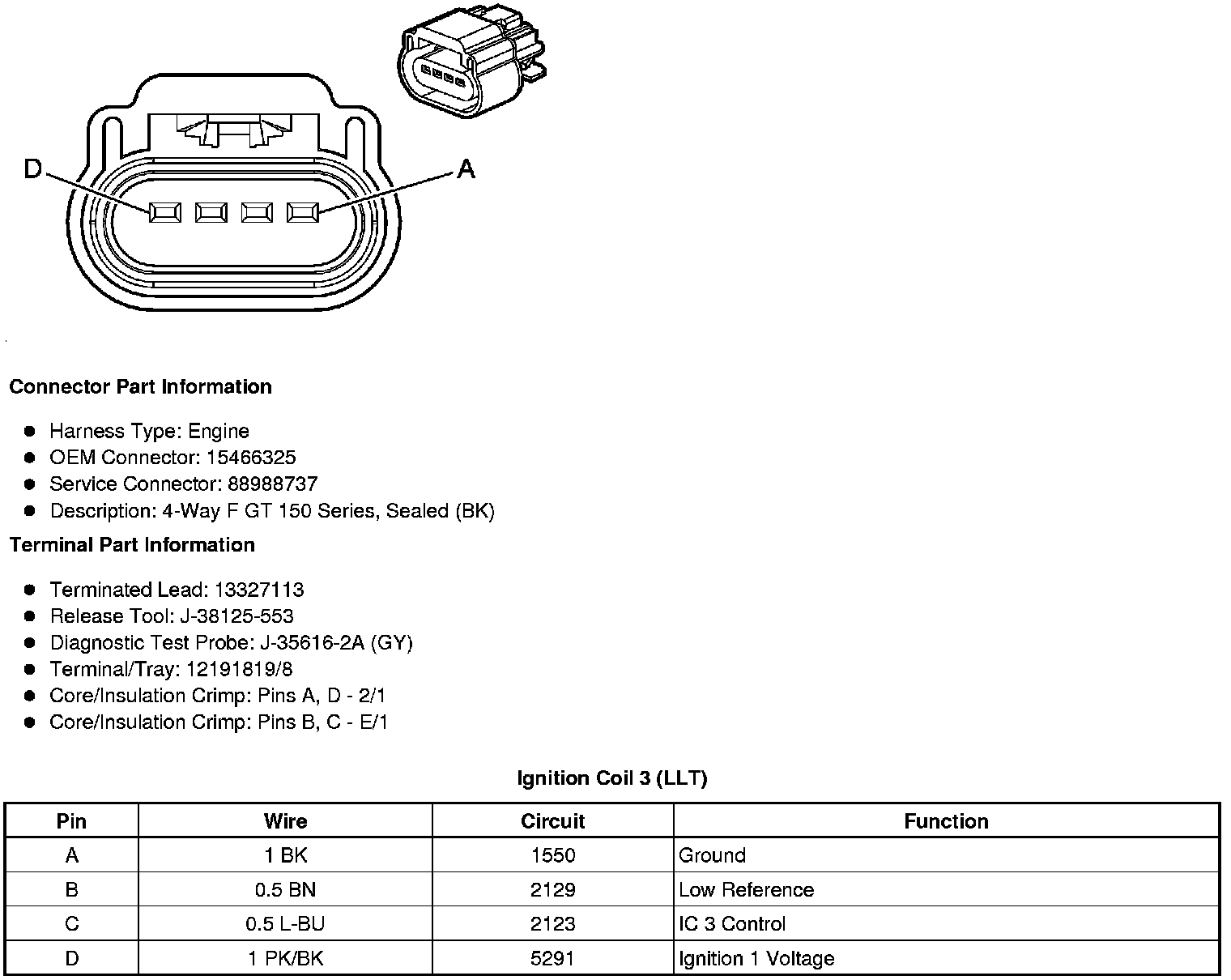

Ignition Coil 3 (LLT)

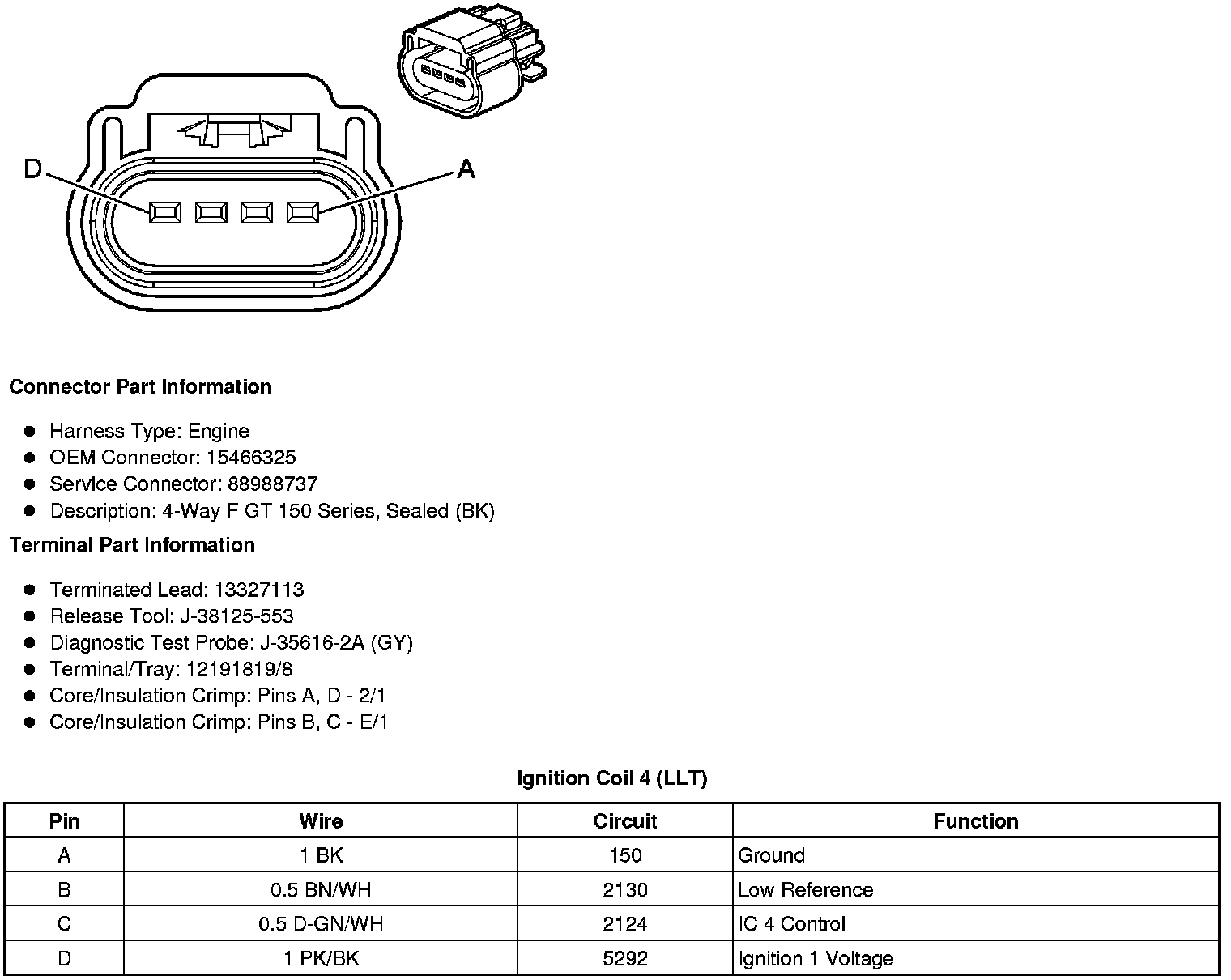

Ignition Coil 4 (LLT)





Ignition Coil 5 (LLT)





Ignition Coil 6 (LLT)
