System Diagram




Component Connector End Views

Headlamp Ballast - Left (T4F)

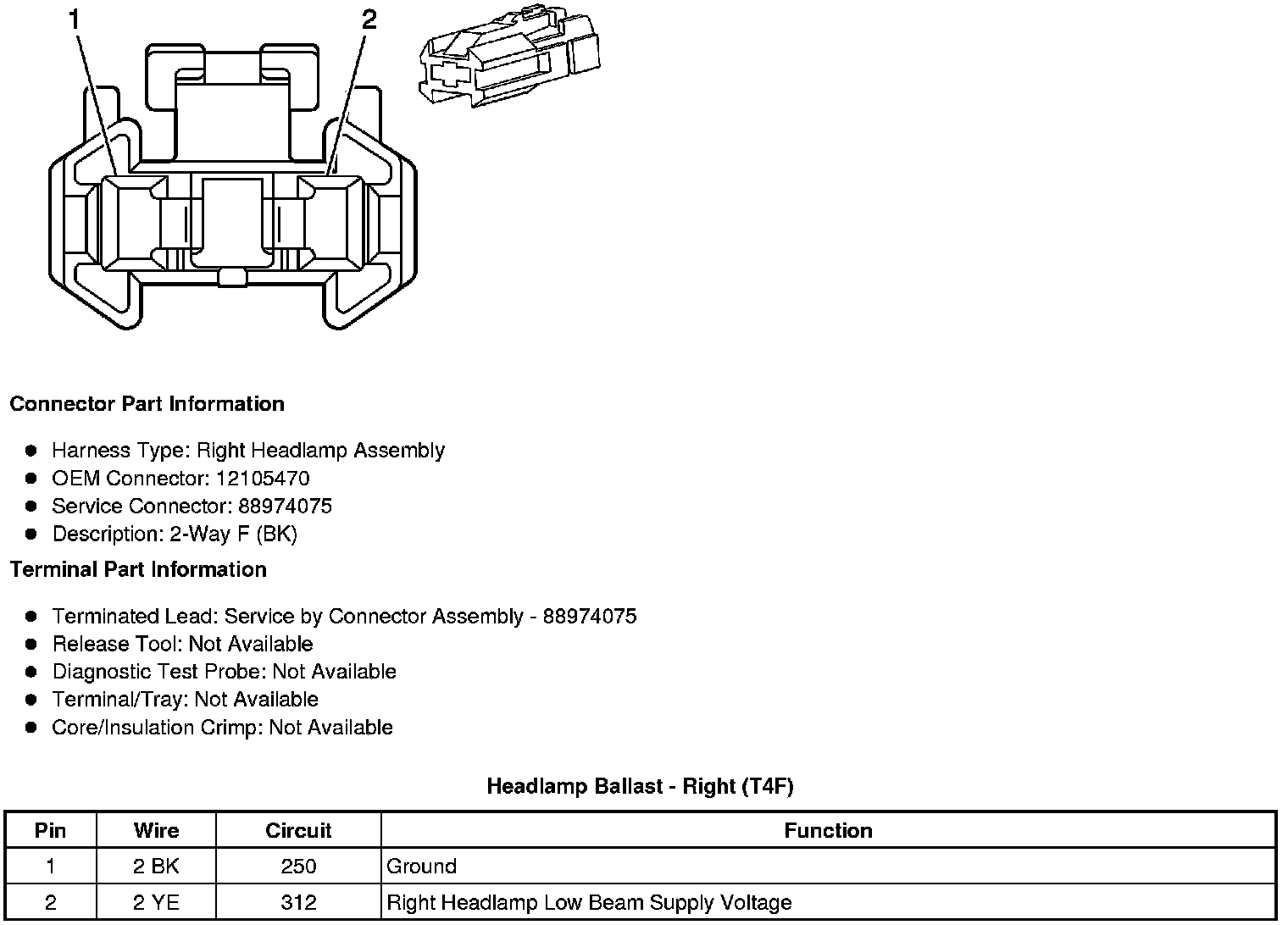

Headlamp Ballast - Right (T4F)





Headlamp - Left High Beam





Headlamp - Left Low Beam (without T4F)

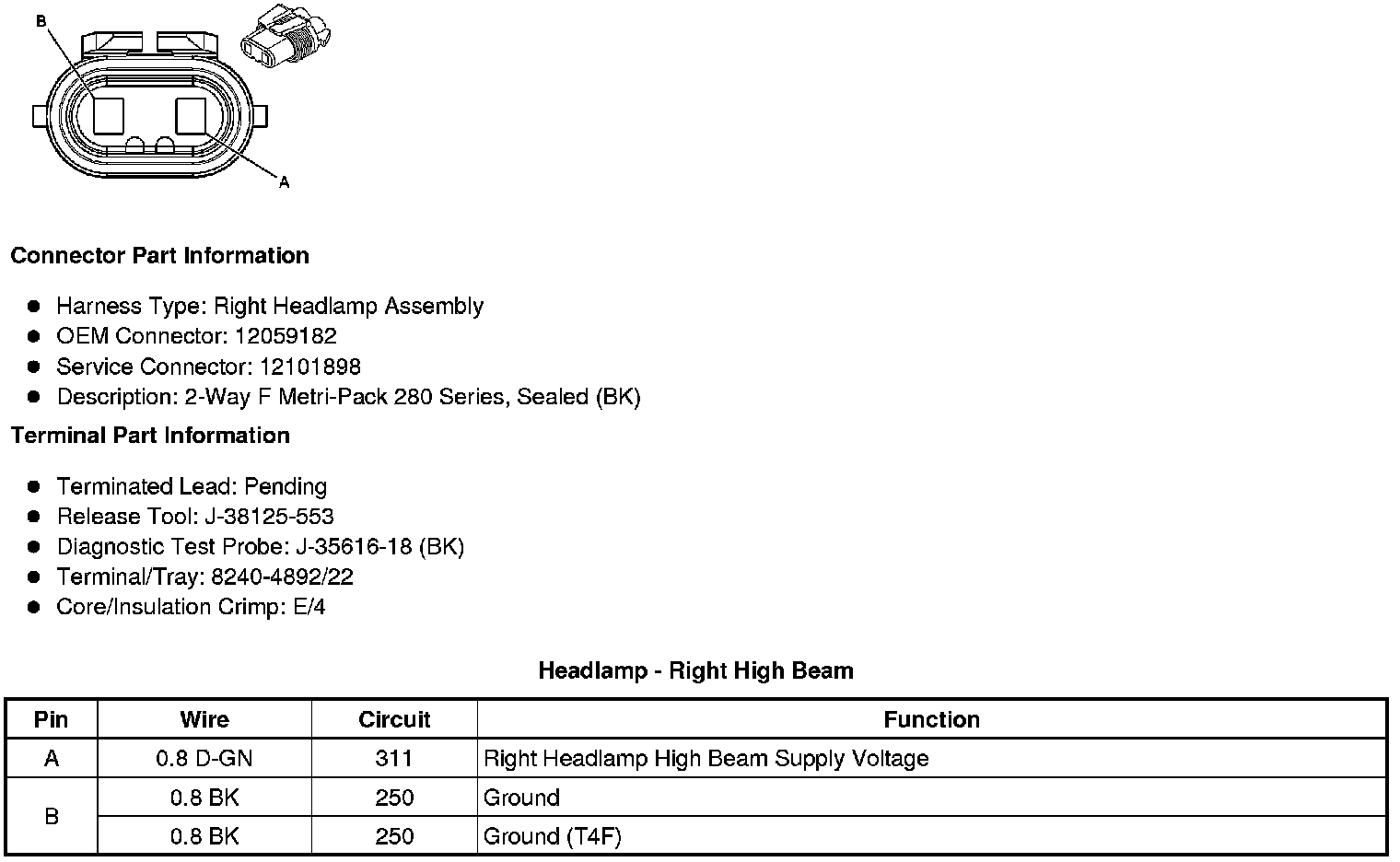

Headlamp - Right High Beam





Headlamp - Right Low Beam (without T4F)
