Headlamp Washer Motor Relay




Component Connector End Views

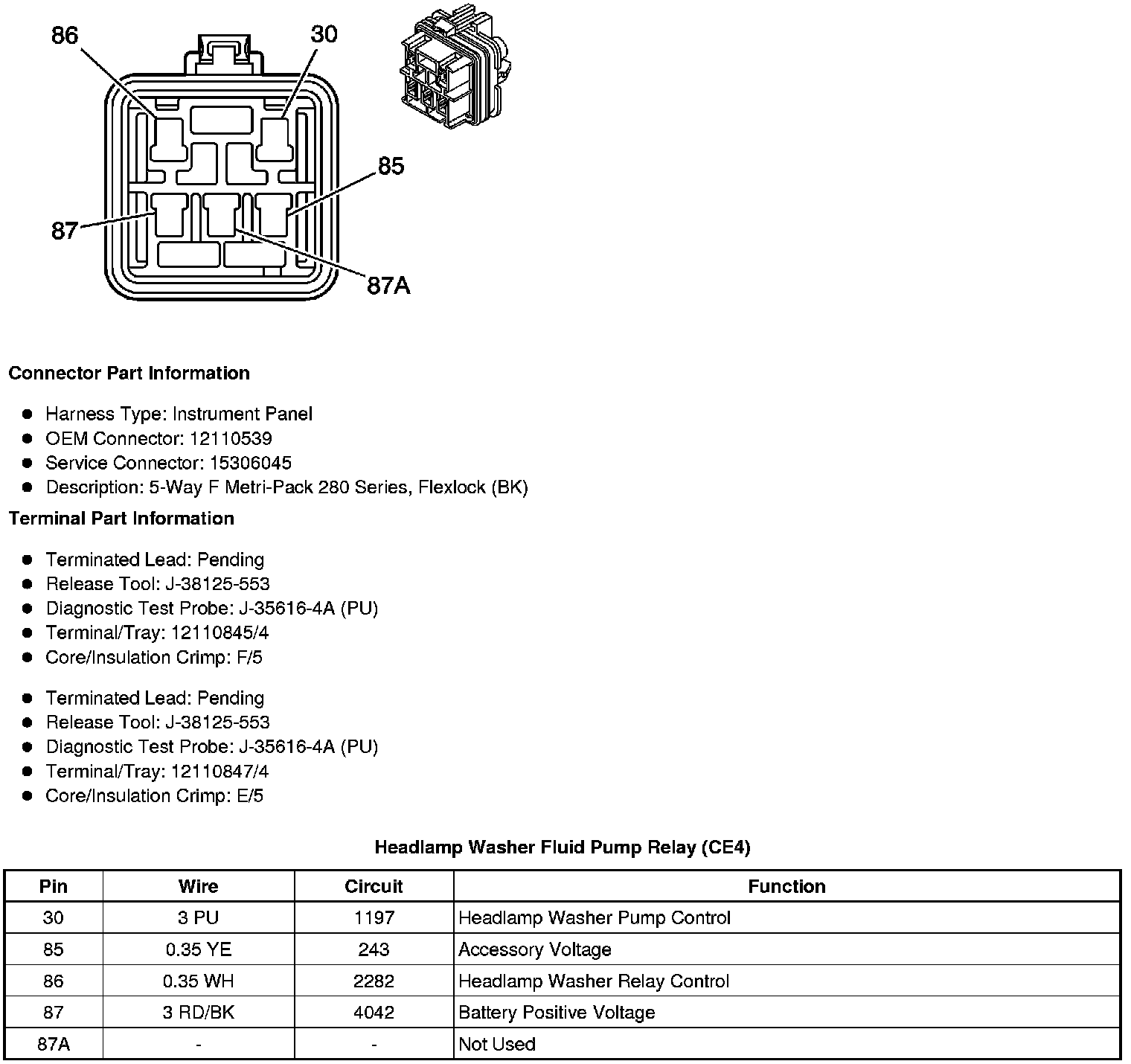

Headlamp Washer Fluid Pump Relay (CE4)
