Cadillac
>>
2011
>>
STS AWD V6-3.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Garage Door Opener Transmitter
Garage Door Opener Transmitter

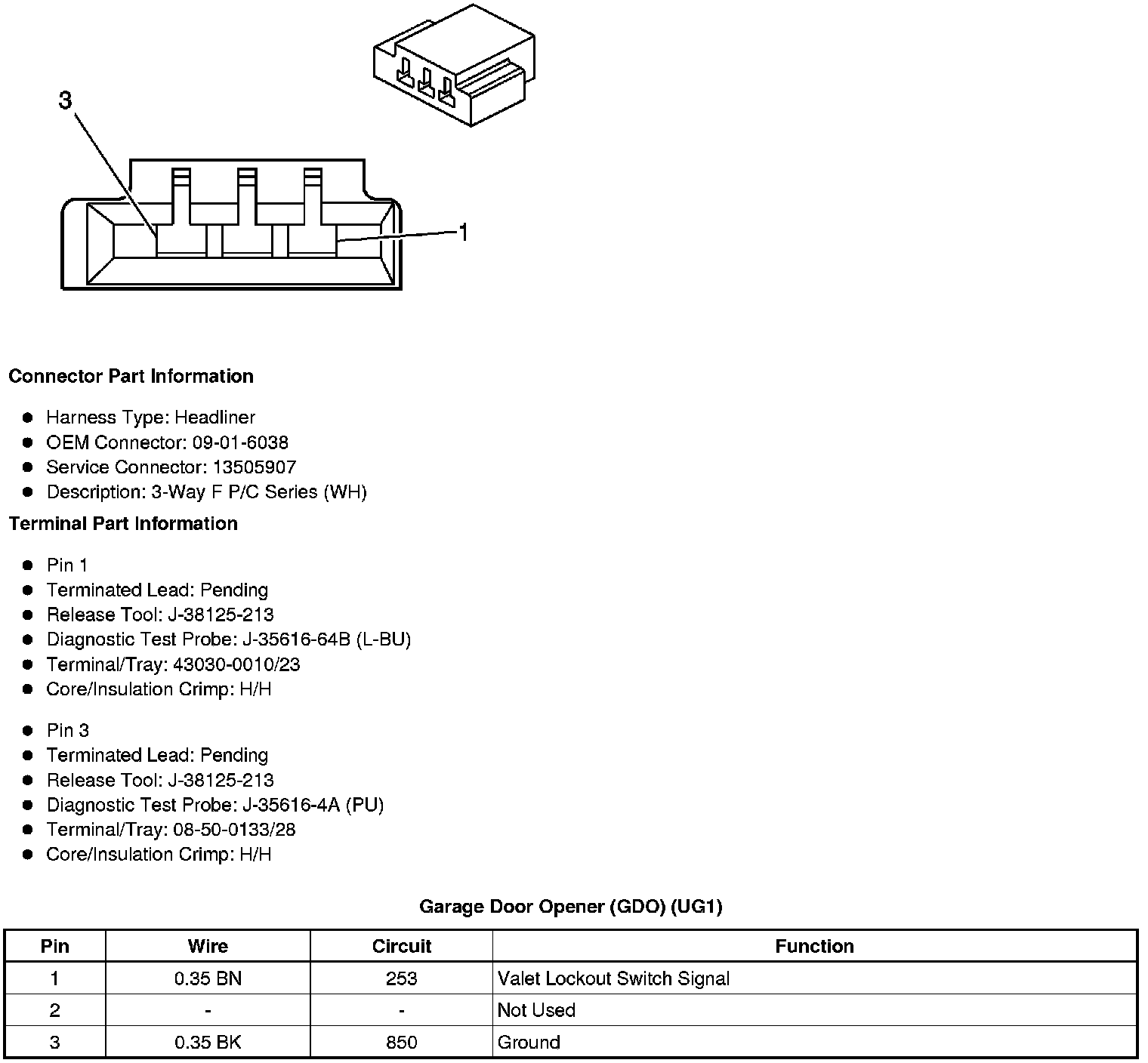

Component Connector End Views
Garage Door Opener (GDO) (UG1)
