X601

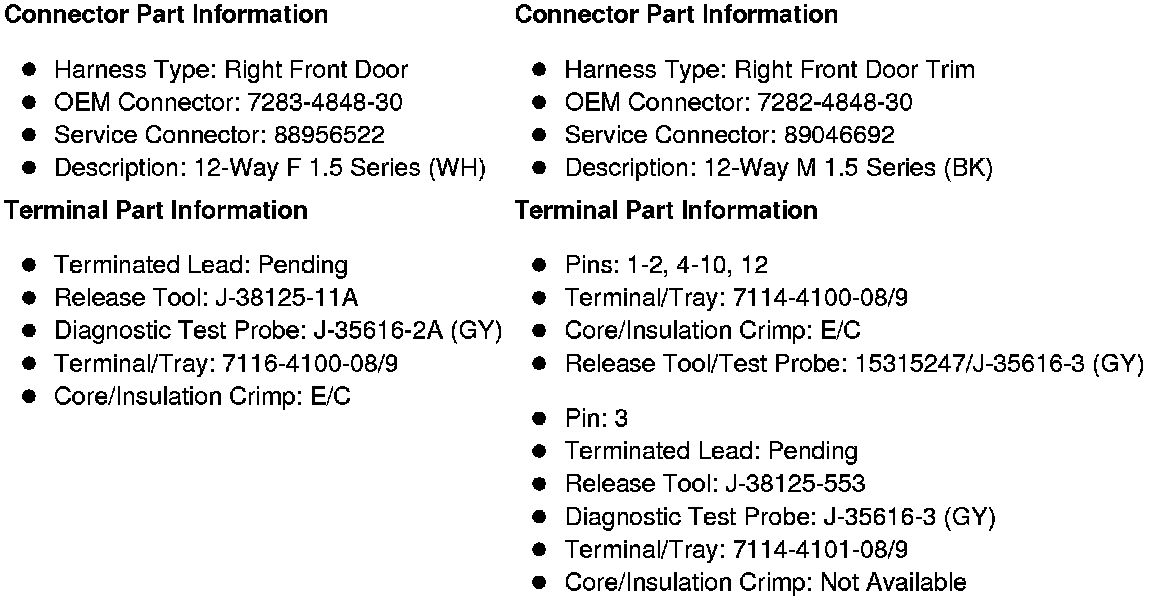

Inline Harness Connector End Views

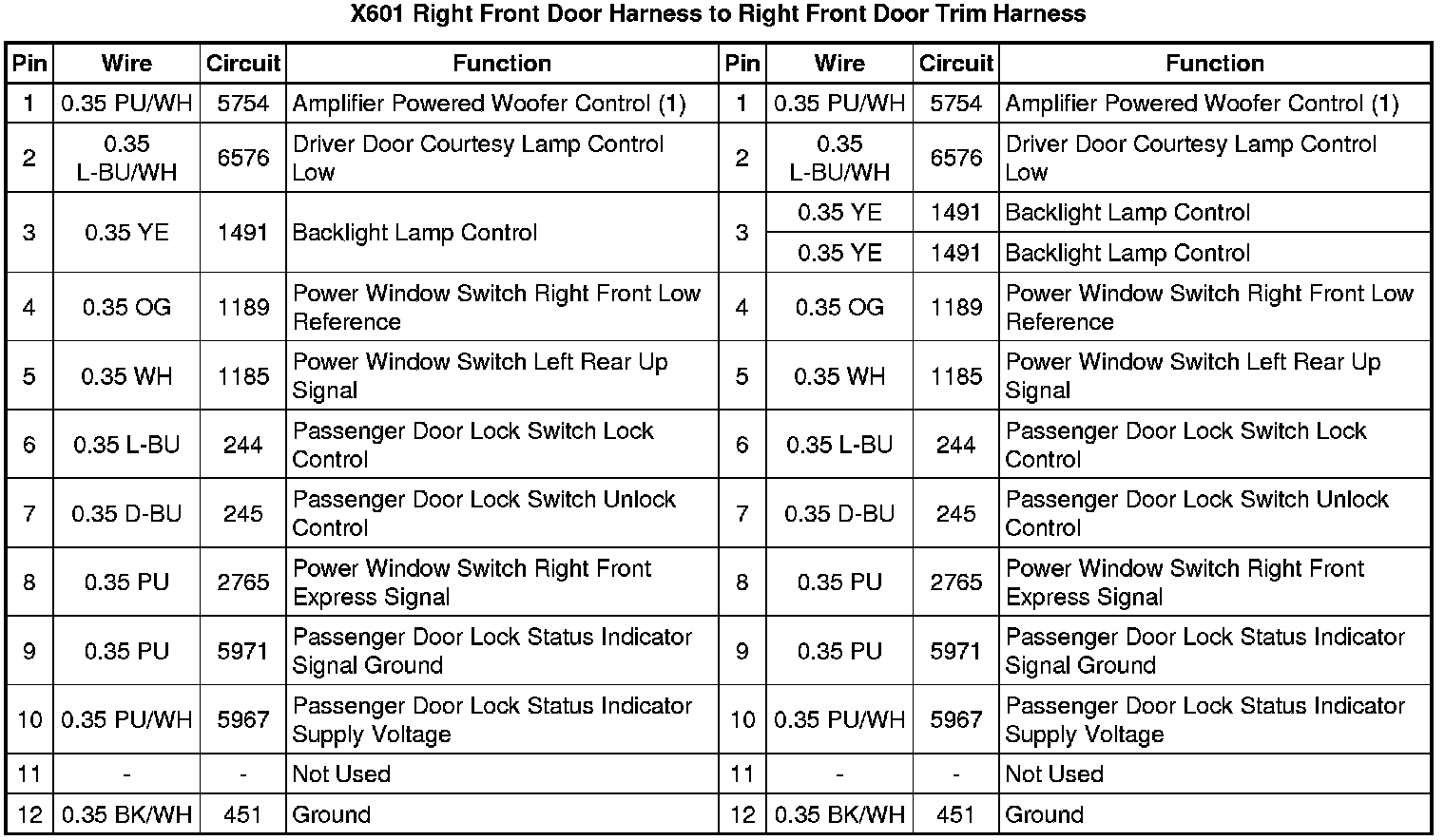

X601 Right Front Door Harness to Right Front Door Trim Harness
