X501

Inline Harness Connector End Views

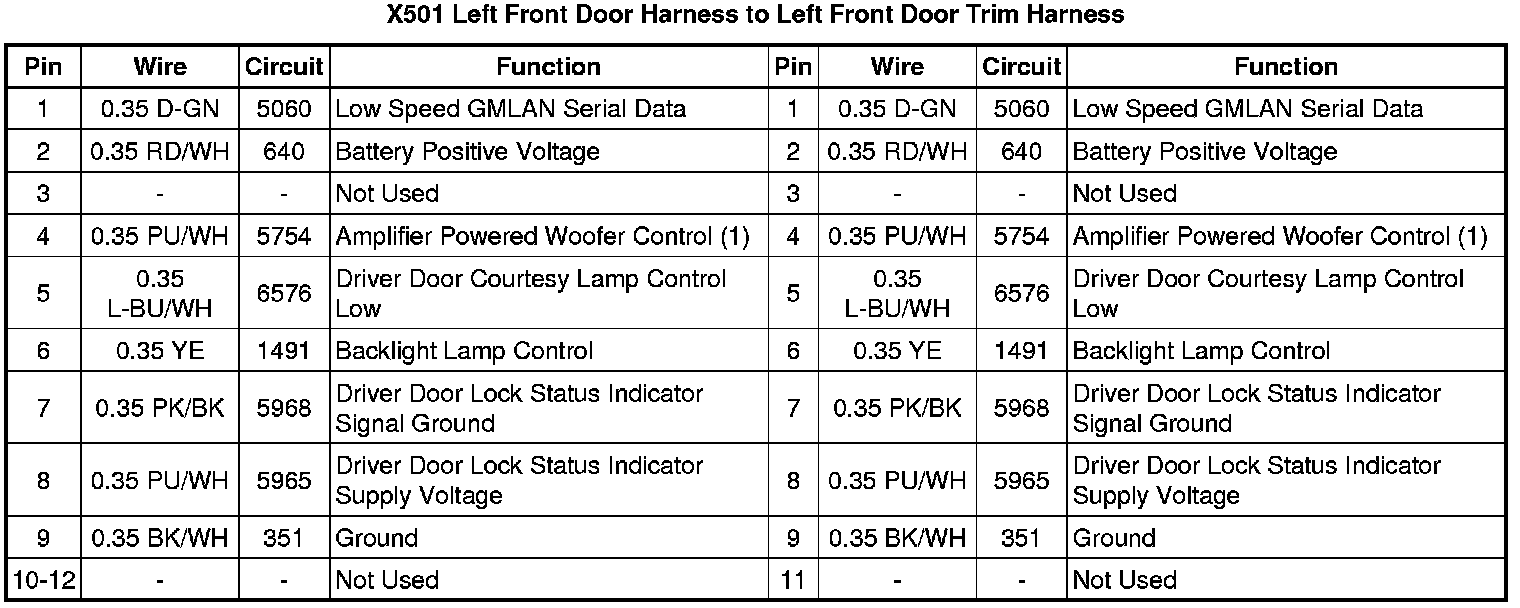

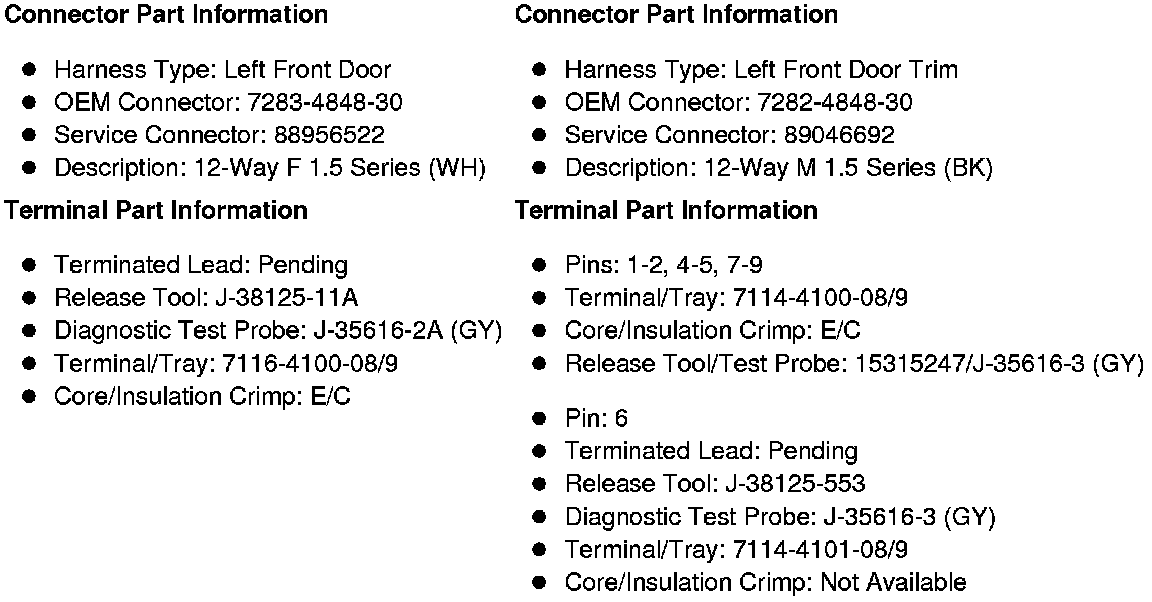

X501 Left Front Door Harness to Left Front Door Trim Harness
