X218




Inline Harness Connector End Views

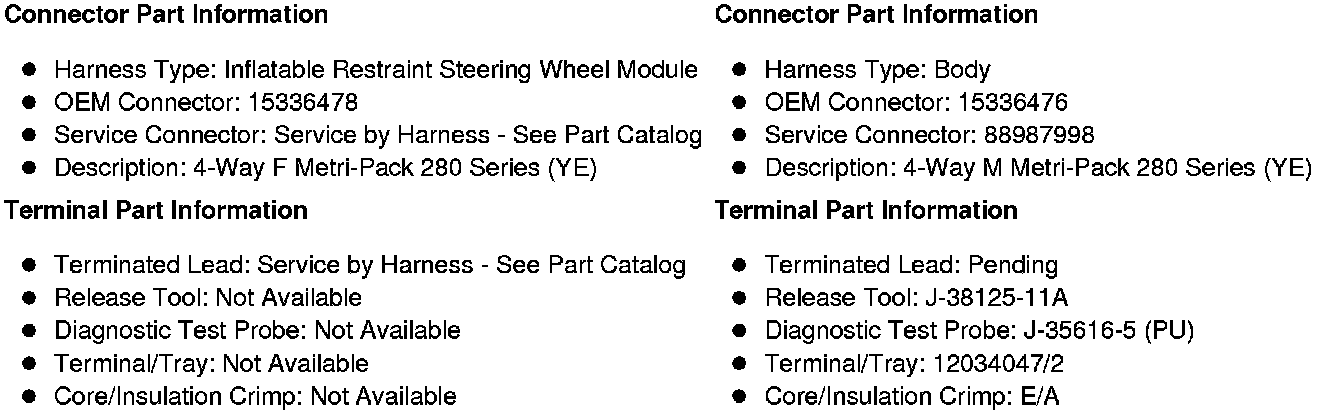

X218 Inflatable Restraint Steering Wheel Module to Body Harness (Driver)
