X215




Inline Harness Connector End Views

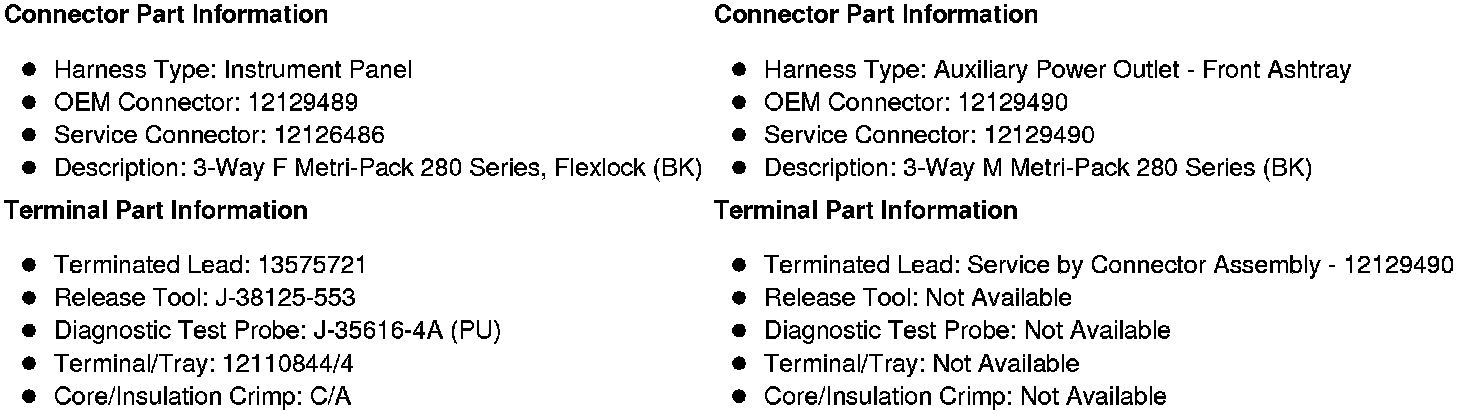

X215 Instrument Panel Harness to Auxiliary Power Outlet - Front Ashtray Harness
