X121

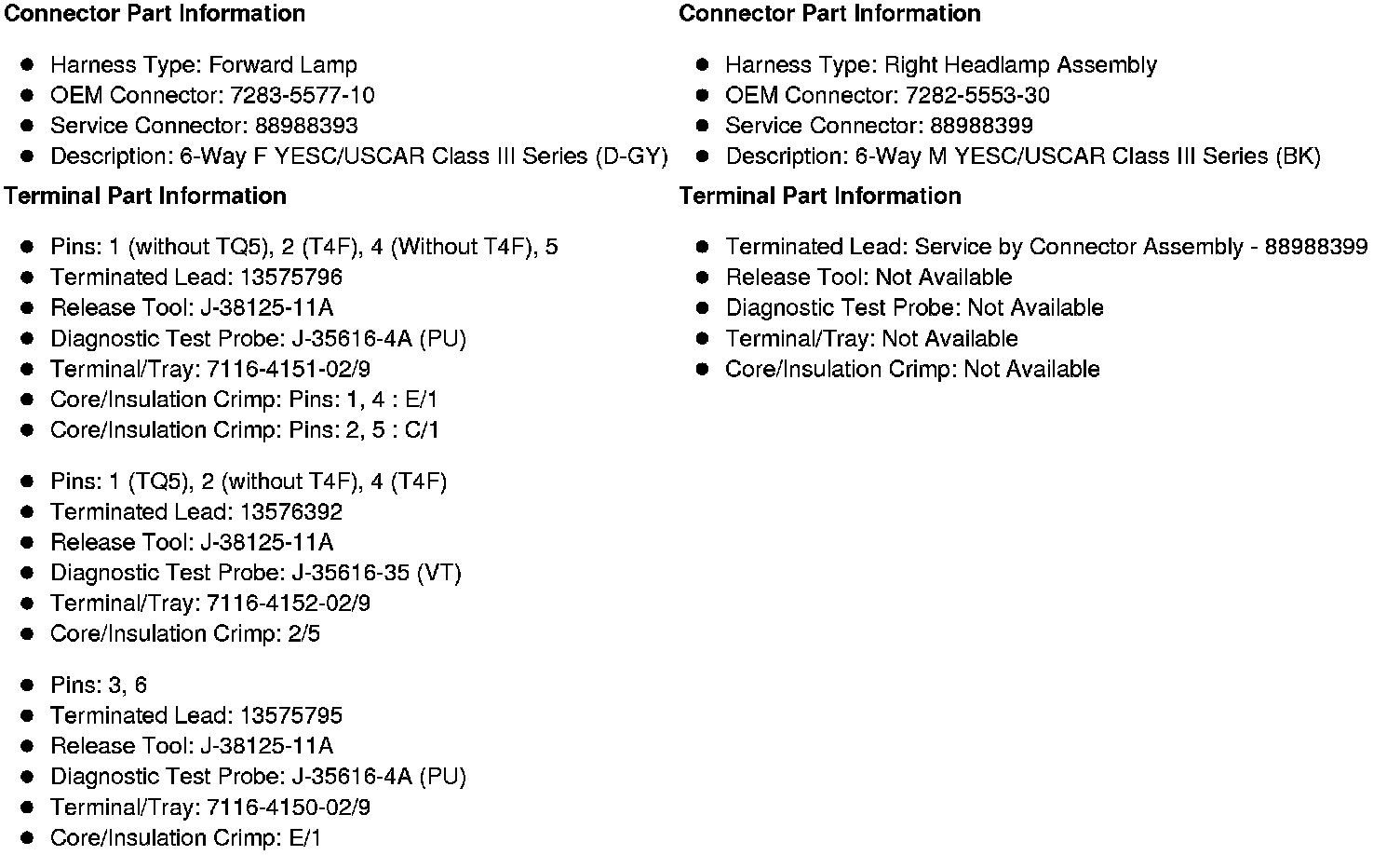

Inline Harness Connector End Views

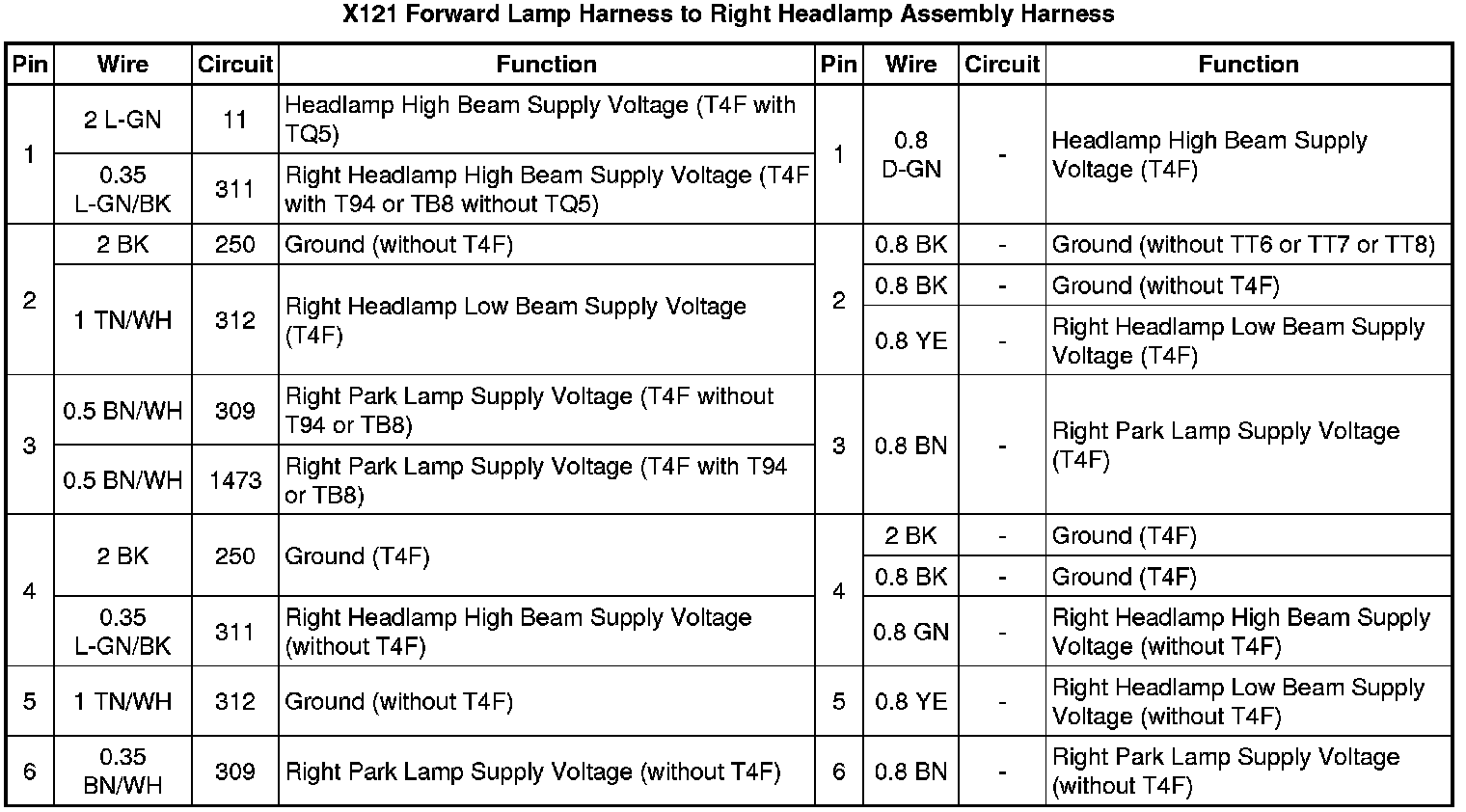

X121 Forward Lamp Harness to Right Headlamp Assembly Harness
