X112
X112
Inline Harness Connector End Views

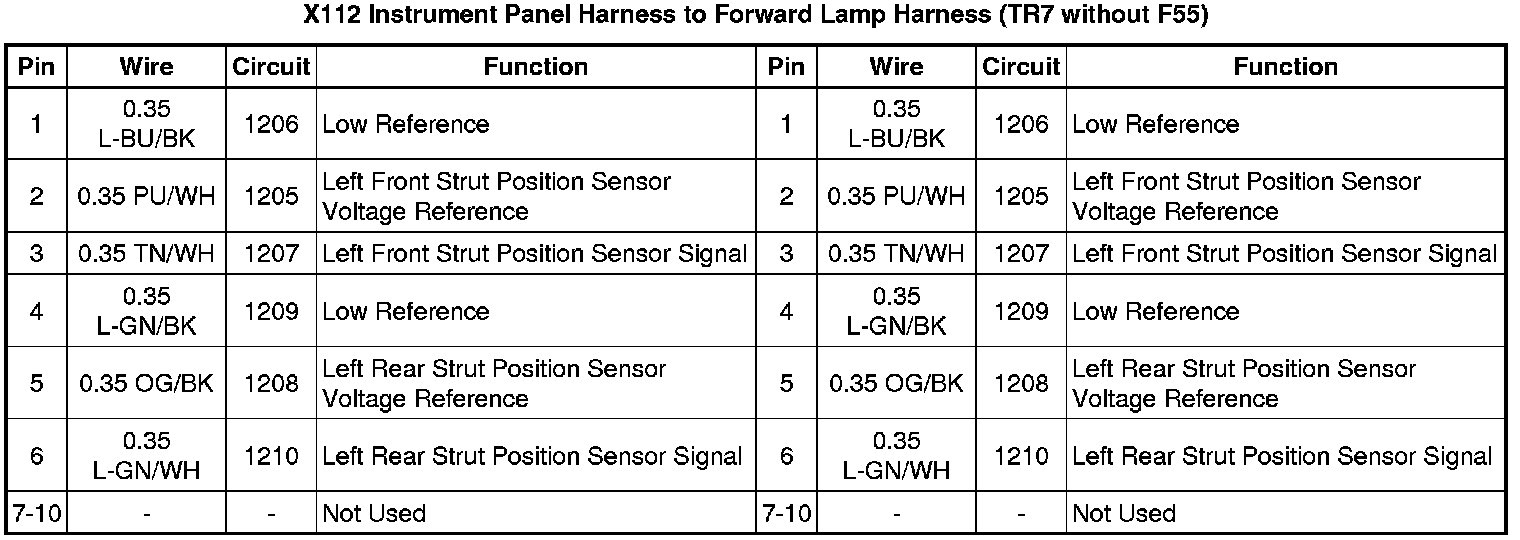

X112 Instrument Panel Harness to Forward Lamp Harness (TR7 without F55)
