Yaw and Lateral Accelerometer Sensor (JL7)
Yaw and Lateral Accelerometer Sensor (JL7)
Component Connector End Views

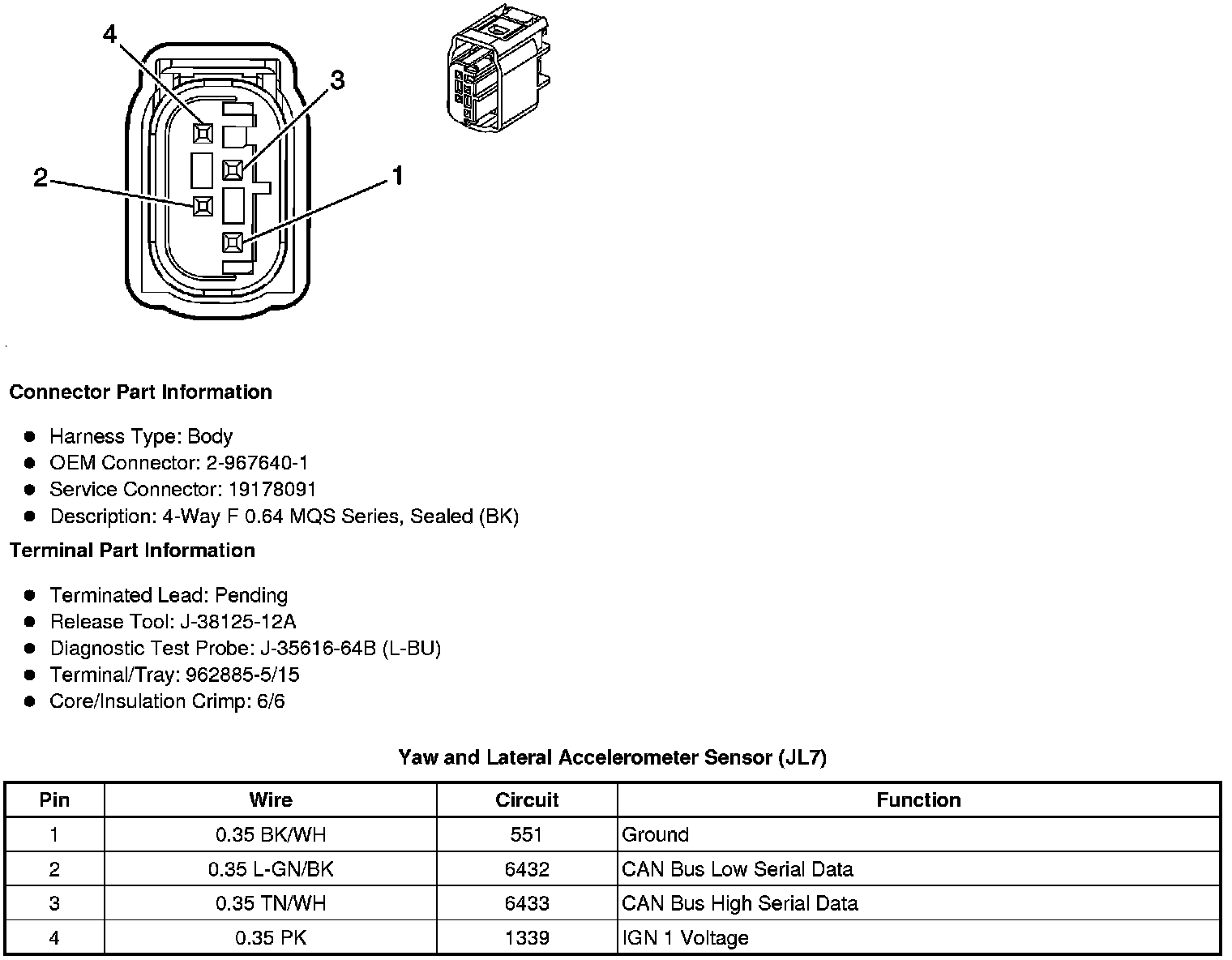

Yaw and Lateral Accelerometer Sensor (JL7)
