Vehicle Direction Alert Alarm Warning Module (UFL)

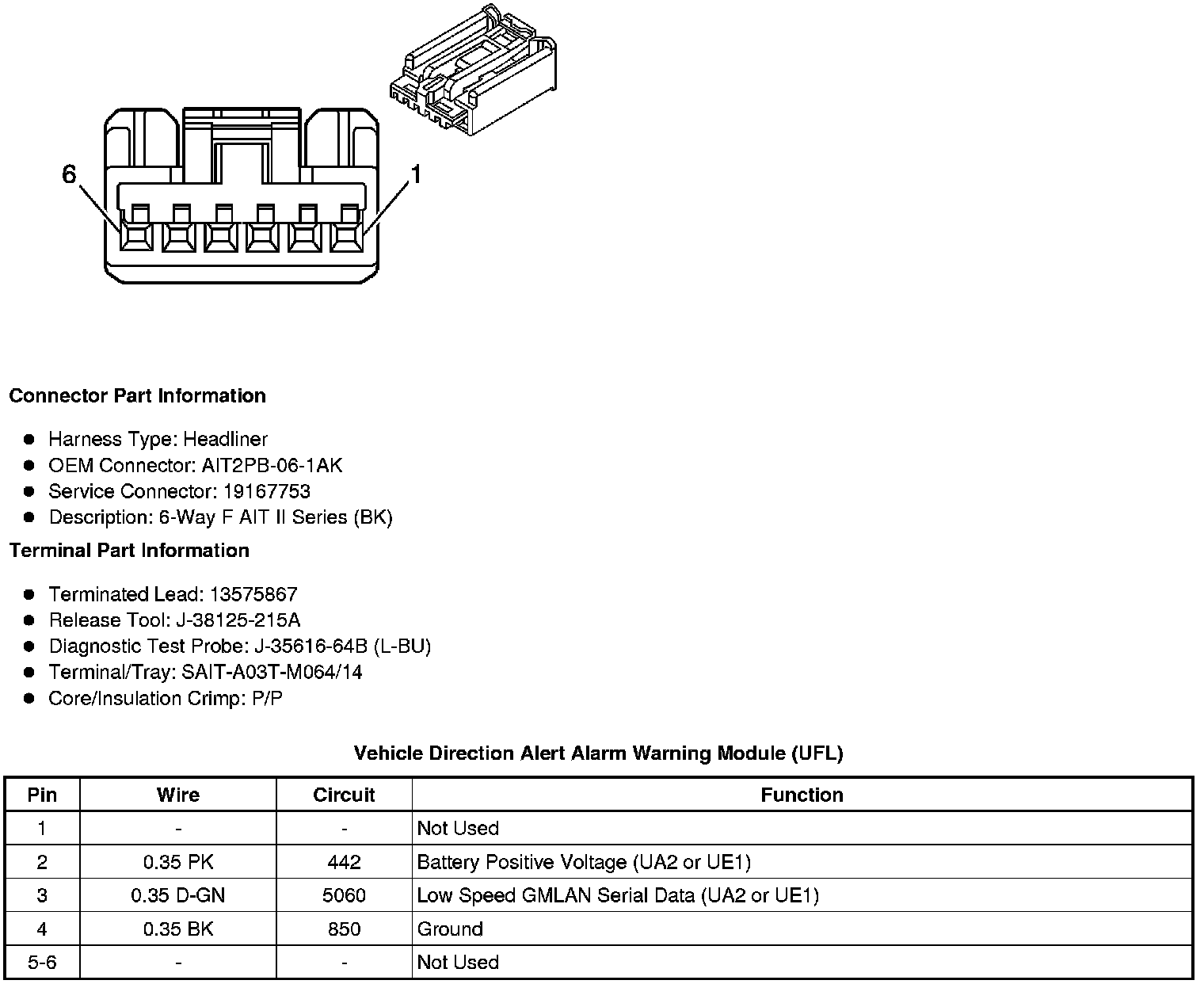

Component Connector End Views

Vehicle Direction Alert Alarm Warning Module (UFL)
