LEMON Manuals
: Even more car manuals for everyone
Home
>>
Cadillac
>>
2011
>>
STS AWD V6-3.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector End Views By Name
>>
Steering Wheel Speed/Position Sensor (JL7)
Steering Wheel Speed/Position Sensor (JL7)
Component Connector End Views

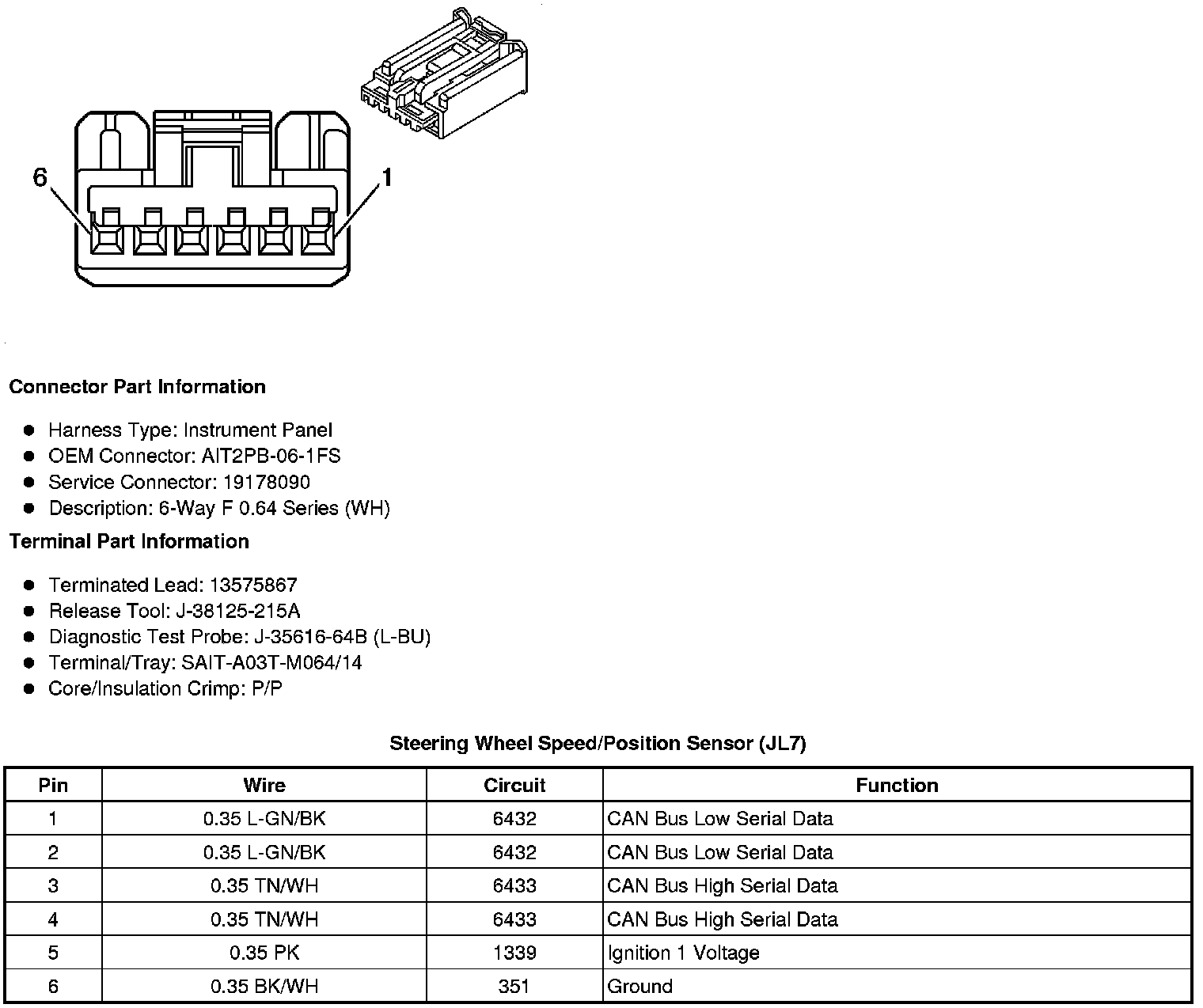

Steering Wheel Speed/Position Sensor (JL7)
