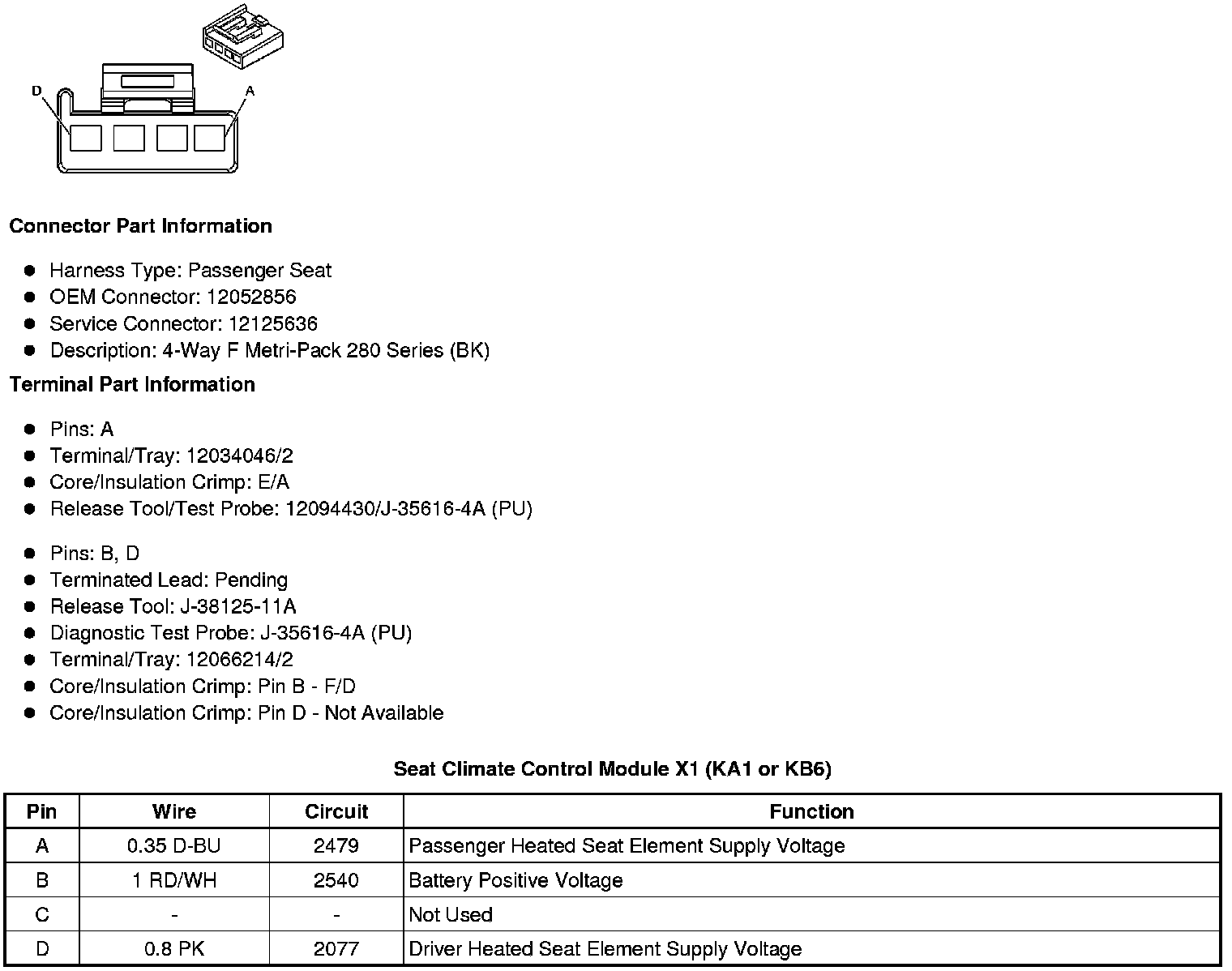

Seat Climate Control Module X1 (KA1 or KB6)
Seat Climate Control Module X1 (KA1 or KB6)
Component Connector End Views
Seat Climate Control Module X1 (KA1 or KB6)
